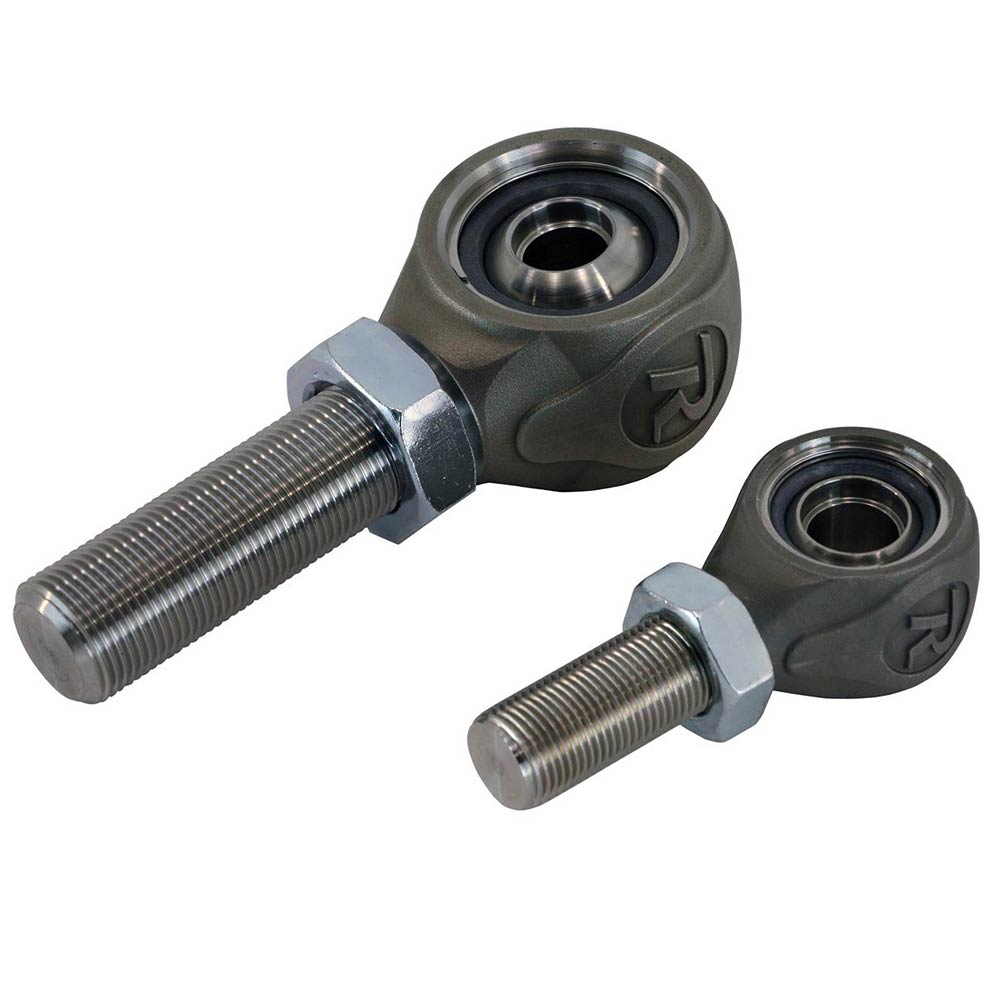

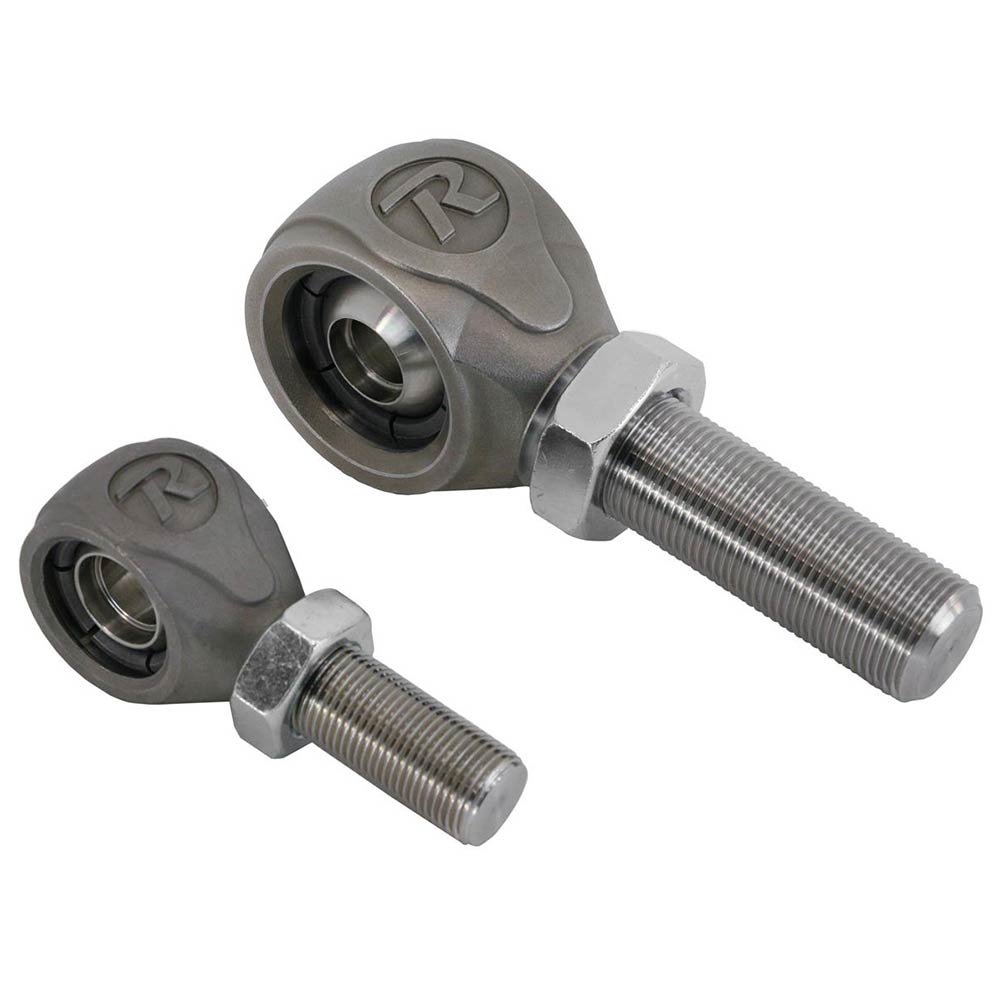

R-Joint XL rod end with 1"-14 right hand threads. Includes spacers to create 9/16" ID and 2-5/8" width. The R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation. R-Joint XL housing is investment cast in the United States. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.
Features:
- Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.
- 17-4 investment cast stainless steel housing with rolled threads.
- Polished stainless ball and RTX10 composite cage provides consistent low friction movement.
- Special RTX10 composite cage needs NO lubrication.
- Self cleaning design that is not affected by any water, grit, dirt or debris.
- Spring loaded closure keeps mechanism tight and rattle free for life!
Specs:
- Thread Sizes is 1"-14 RH Thread
- Through Bolt Size is 9/16"
- Total Articulation is 50 degrees
- Wave Spring is 17-7 Stainless Steel
- Retainer Ring is 302 Stainless Steel
- Housing is 17-4 Stainless Steel
- Spacers are 302 Stainless Steel
