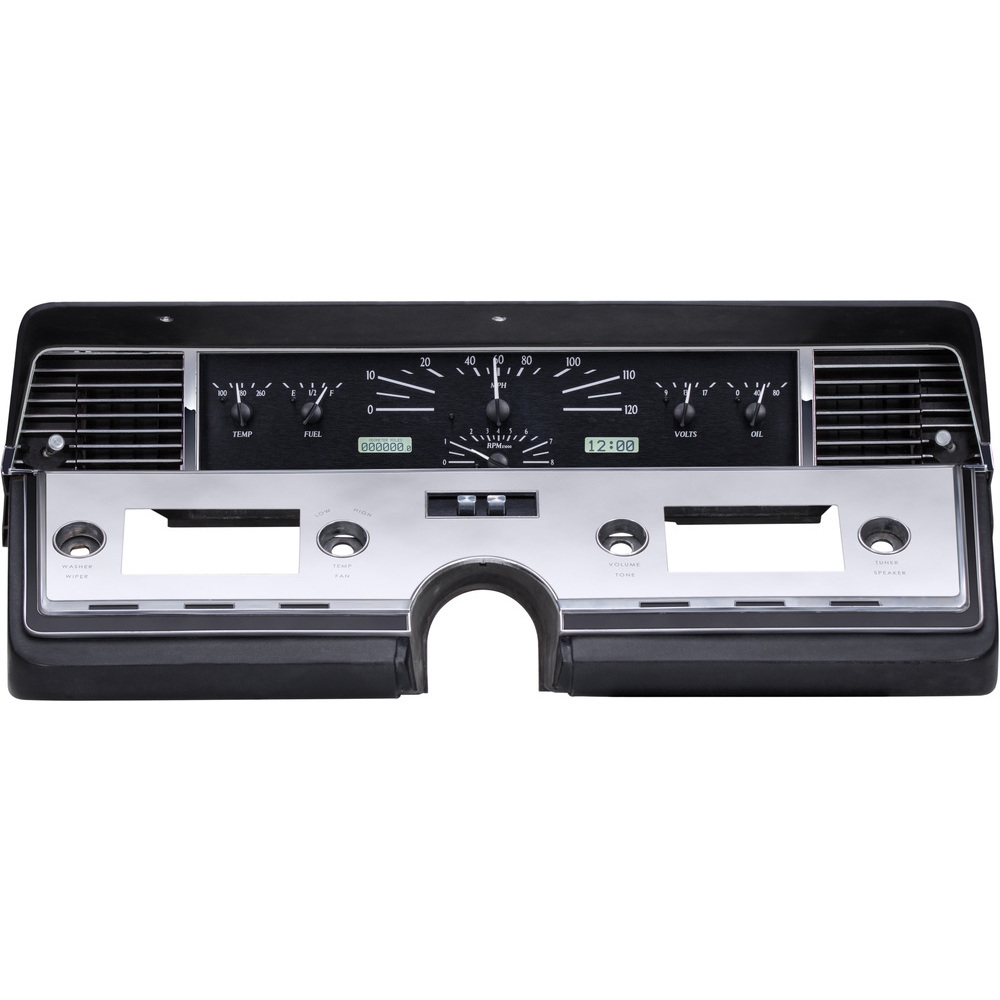

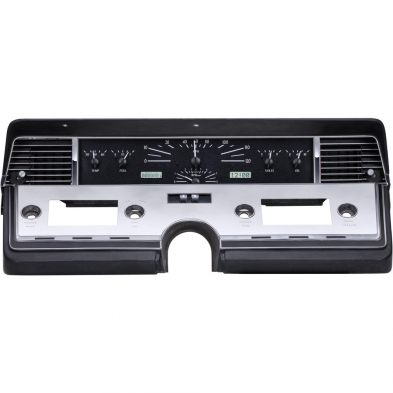

1966-69 Lincoln Continental VHX Gauge Kit

This Dakota Digtial VHX gauge kit is a direct fit (with some modification to the interior of the stock instrument cluster) analog instrument system perfectly fills out the three rectangle gauge bezels with six needles as well as dual LCD message centers. Choose from Black or Silver Alloy face styling, and ask not what your Lincoln can do for you, but rather what you can do for your Lincoln.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the Dakota Digital VHX Series instruments apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital gauge systems. Completely engineered and manufactured by Dakota Digital in Sioux Falls, South Dakota, the VHX Series gauges have completely revolutionized the instrumentation industry!

This system requires permanent modification to the inside of the stock instrument cluster, providing clearance for the new instrumentation.

Part numbers are as follows:
VHX-66L-K-B 1966-67 Lincoln Continental VHX System, Black Alloy/Blue
VHX-66L-K-R 1966-67 Lincoln Continental VHX System, Black Alloy/Red
VHX-66L-K-W 1966-67 Lincoln Continental VHX System, Black Alloy/White
VHX-66L-S-B 1966-67 Lincoln Continental VHX System, Silver Alloy/Blue
VHX-66L-S-R 1966-67 Lincoln Continental VHX System, Silver Alloy/Red
VHX-66L-S-W 1966-67 Lincoln Continental VHX System, Silver Alloy/White

• Displays included with this instrument system:
  • Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
  • Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
  • Oil Pressure: 0-80psi analog and digitally.
  • Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
  • Voltmeter: 0-17VDC analog and digitally.
  • Fuel Level: Empty- Full analog. 0-99% digitally in message center.
  • Also shown in the digital message center:
    • Odometer
    • Trip Odometer (A&B)
    • Resettable Service Odometer
    • Clock
    • Hour-meter
    • 0-60 MPH (0-100 KPH) timer
    • ¼ mile timer
    • ¼ mile speed display
    • High Speed recall
    • High RPM recall
• Various Indicators can also be displayed such as:
  • Turn Signals
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • 4x4 (when equipped) displayed in message center.
  • Wait to Start (when equipped) displayed in message center.
• Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear. Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
• Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
• Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button.
• Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
• Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
• Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
• Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch
• Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
• One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.


** Covered by a Limited Lifetime Warranty!
