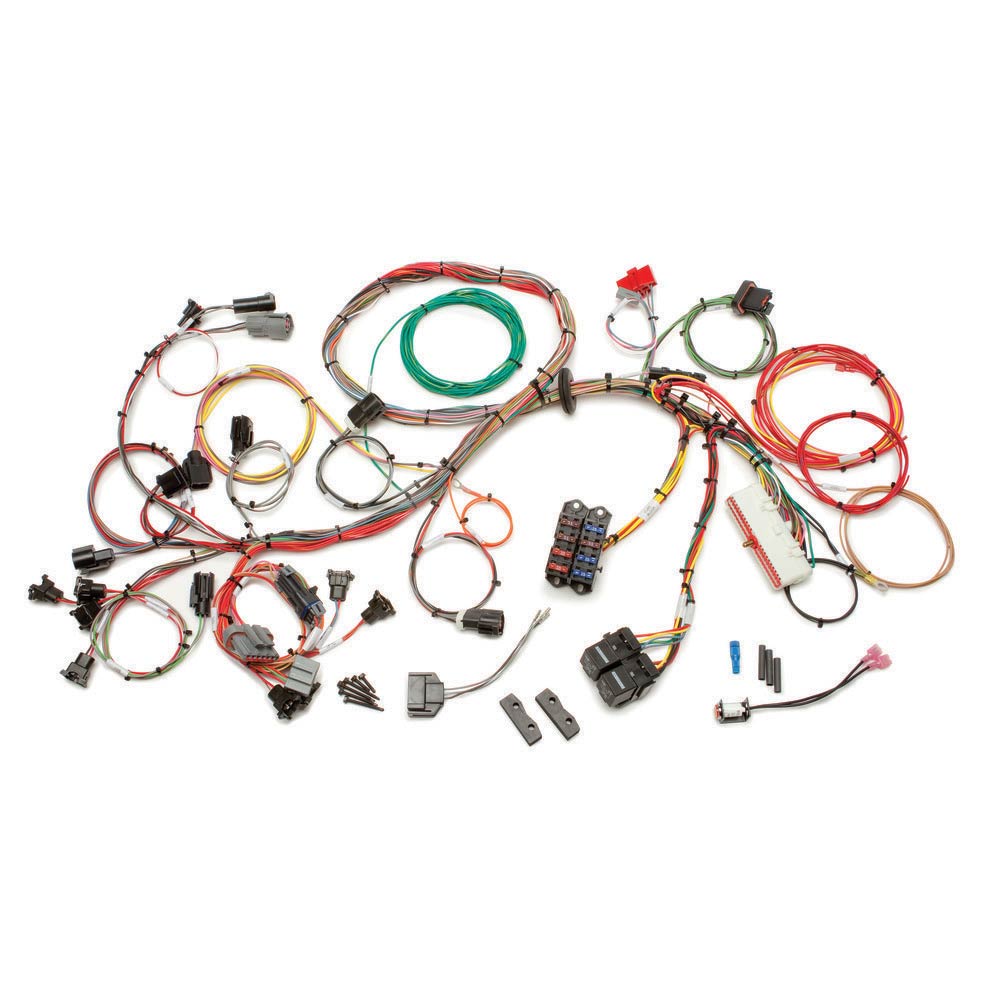

Ford 1986 - 1995 5.0L Fuel Injection Wiring Harness Extra Length
This harness is standalone and is not intended to replace the OEM engine wiring. Standalone harnesses are intended to run the designated engine and transmission only, generally when swapped into another vehicle.
This harness is designed for the 1986-1995 Ford 5.0 (car) HO EFI engines. You must use the 1989-1993 MAF, Distributor, and ECM. 1986-1988 must add MAF (mass air flow) sensor. 1994-1995 must modify TPS wiring and change distributor. Harnesses do not include all the original connections for the original emissions but are available separate. Included with this harness is an 8 circuit modular fuse block and Ford color coded wires with labels for easy installation.
This extended length harness allows eight feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the seat or in the center console.
This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- Diagnostic connector and check engine light
- Rubber grommet
- Mounting hardware
We HIGHLY recommend checking the online manual for the full list of required mating parts prior to ordering.
Number of Circuits: 8 Fuses with 2 Ignition and 1 Fuel Pump Relay
Harness Length: 8 Feet Between Engine and ECM
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Code Based: 1990 Mustang
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires
The Fuse Block Protects The Following Circuits:
- Check Engine Light
- Driver Side Injectors
- Dual 40 amp Ignition Relays
- EEC-IV
- Fuel Pump Relay (B+)
- Fuel Pump Relay (IGN)
- Heated O2 Sensors
- Mass Airflow, EVR, ISC
- Pass Side Injectors
This harness includes connections for the following components:
- Barometric Pressure Sensor
- Data Link Connector
- ECM
- EEC Ground
- EEC Power Relay
- EEC Test
- EGR Vacuum Regulator
- EGR Valve
- Engine Coolant Temperature
- Fuel Pump
- Fuel Pump Relay
- Grounds
- Idle Air Control
- Ignition Coil
- Ignition Switch Signal
- Ignition Timing Setting
- Injectors
- Intake Air Temperature
- Malfunction Indicator Lamp
- Mass Airflow Sensor
- Neutral Safety Switch
- O2 Sensor
- Starter Relay
- Tachometer
- TFI Ground
- TFI Pigtail
- Throttle Position Sensor
- VSS
Fitment:
- Engine: 5.0 H.O. Mass Air flow
- Trans.: None
