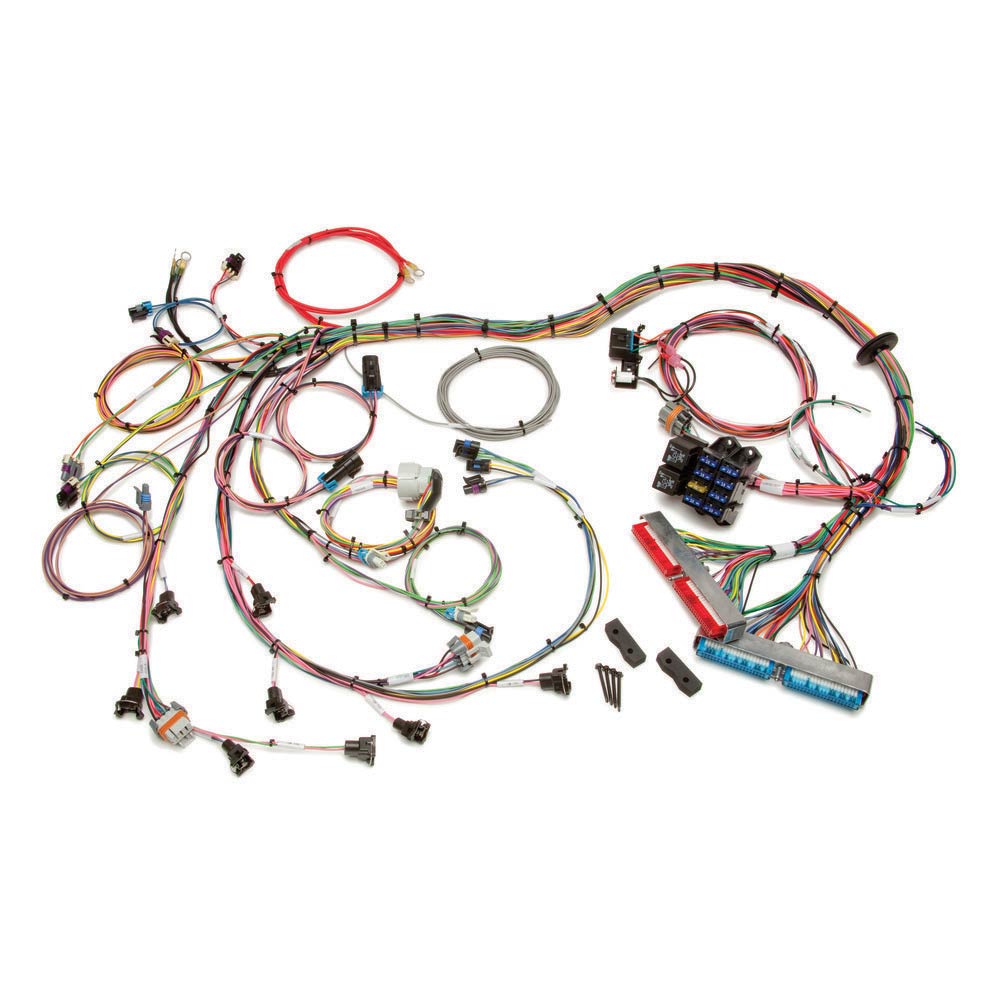

1998-2004 GM LS1/LS6 EFI Extra Length Harness
This harness is standalone and is not intended to replace the OEM engine wiring. Standalone harnesses are intended to run the designated engine and transmission only, generally when swapped into another vehicle.
This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E/4L80E automatic or T56 manual transmission. These engines were found in 1998-2002 Camaro/Firebird. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, and 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.
This extended length harness allows eight feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the seat or in the center console.
This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- OBDII connector, mounting bracket and check engine light
- Rubber grommet
- Mounting hardware
- We recommend checking the online manual for the full list of required mating parts prior to ordering.
Number of Circuits: 8 Fuses with 2 Ignition and 1 Fuel Pump Relay
Harness Length: 8 Feet Between Engine and ECM
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Code Based: 2000 Camaro
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires
The Fuse Block Protects The Following Circuits:
- DLC B+
- Driver Side Injectors and Coils
- Dual 40 amp Ignition Relays
- Fuel Pump
- Heated O2 Sensors, Mass Airflow Sensor, and Brake Switch
- Pass Side Injectors and Coils
- ECM and Malfunction Indicator Lamp
- ECM B+
- Transmission
This harness includes connections for the following components:
- Alternator
- Brake Switch
- Cam Position Sensor
- Crank Position Sensor
- Data Link Connector
- Driver/Pass Front O2 Sensors
- Engine Coolant Temperature
- Fan #1 Relay Ground ECM Activation
- Fan #2 Relay Ground ECM Activation
- Fuel Pump
- Fuel Pump Relay
- Fuel Pump Test
- Gear Indicator Switch
- Grounds
- Idle Air Control
- Ignition Coils
- Ignition Switch Signal
- Injectors
- Intake Air Temperature Sensor
- Knock Sensors
- Malfunction Indicator Lamp
- MAP Sensor
- Mass Airflow Sensor
- ECM
- Reverse Lockout Solenoid
- Skip Shift Light
- Skip Shift Solenoid
- Starter
- Tachometer
- Throttle Position Sensor
- Transmission
- VATS
- Vehicle Speed Sensor
- VSS Output for Speedometer
For complete factory emissions control purchase this optional PPP60325 emissions harness to connect Bank 1 and 2 Rear O2, Secondary air pump, Secondary air bleed, EGR, Canister purge, Canister vent and Fuel Tank Pressure Sensors.
Fitment:
- Engine: 5.7L LS1 / LS6 w/ Cable Throttle Body
- Trans.: 4L60E, 4L65E, 4L80E, T-56
