Trail Rocker Relay Center 2007-2018 Jeep Wrangler JK (w/o Switches) (8 Relay)

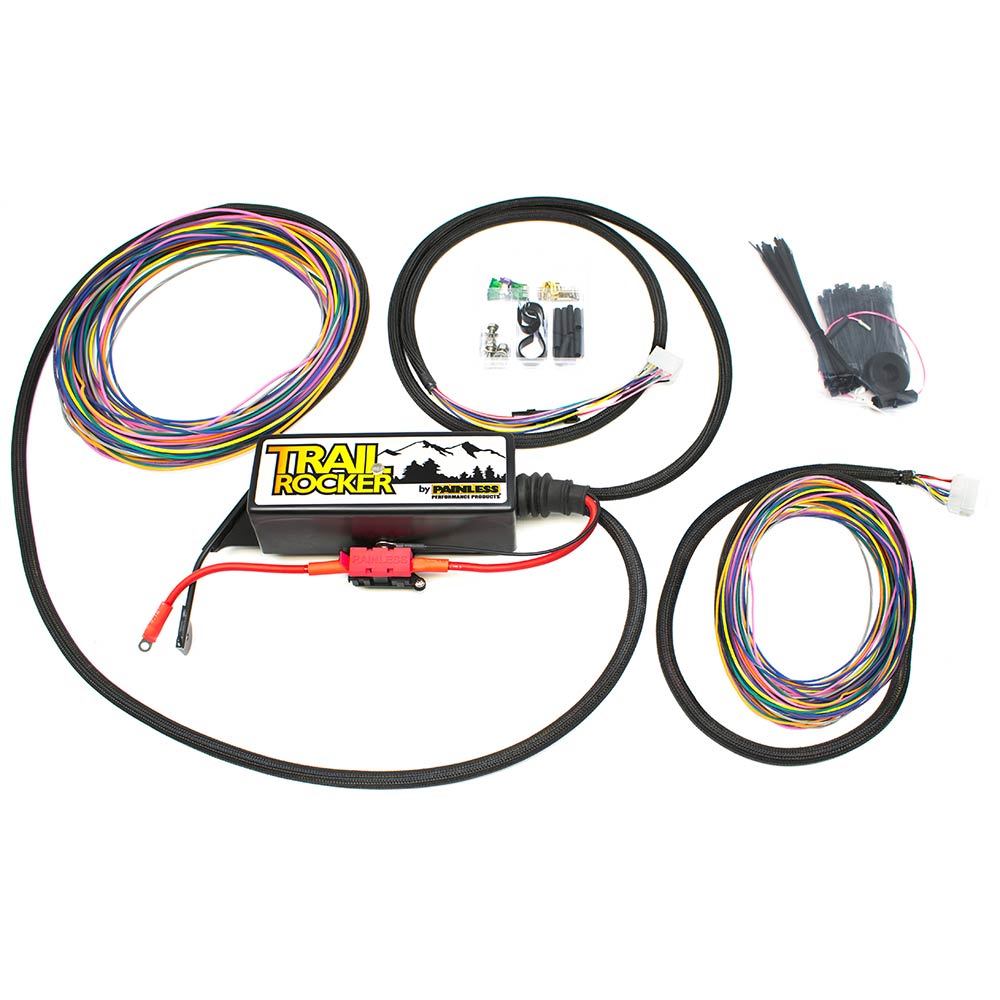

THIS Trail Rocker Relay Center from Painless, allows you to control up to eight accessories on your Jeep JK! It uses the same relay center found in our other Trail Rocker systems, yet it includes a custom made bracket to easily mount this Relay Center conveinently under the hood; next to the factory battery location.
THIS kit is designed for those who want to mount their own control switches into the plastic panels on their Jeep's dash. This kit is designed to allow you to install and wire up your own switches.
The heart of this kit is a weatherproof housing that surrounds the relays and fuses protecting them from the elements. Included in this kit are all the necessary weatherproof heat shrink and splices to connect your Jeep accessories ranging from lights, air pumps, E-Lockers, Winch Control and even refridgerators. Our detailed step-by-step instructions clearly support this kits plug-n-play design.
Controls up to 8 accessories with (8) 30 amp fuses and (8) 30 amp relays
Weatherproof housing to protect Fuse and Relays from the elements
Custom bolt-on Jeep JK Specific, powder coated bracket for the Relay Center
Includes 21ft long, 12 gauge output wires to allow maximum current delivery to your accessories. It's no problem to power up an accessory on the opposite end of your Jeep!
Includes 7 ft long, 18 gauge switch control wires, so simply pass them through the firewall and connect your switches.
Winch Ready! The Trail Rocker Relay Center includes dedicated wires for controlling a winch. Purchase one of the Trail Rocker Winch Control Add-on Kits, part number PPP57150 to easily add winch control to your Jeep JK.
*This kit works with manual and automatic transmissions.
Number of Circuits: (8) 30 AMP Outputs, (8) Relay Control B+ Inputs, (2) Winch Control Wires
Harness Length: 21 ft. long 12 gauge wires included
Fuse Type: Standard Automotive Blade Fuses with LED Indicator for open fuse indication
Firewall Passthrough: Grommet Provided In Kit
Color Code Based: Painless Specific
Connections Included:
- (1) MAIN BATTERY FEED WIRE WITH INLINE 200AMP MIDI FUSE
- (8) 21FT DIRECT RELAY OUTPUTS
- (8) RELAY CONTROL SWITCHED B+ INPUTS
- (1) SWITCH CONTROL POWER B+ OR SWITCHED WIRE
- (1) DEDICATED SWITCH CONTROL GROUND WIRE
- (1) WINCH IN WIRE
- (1) WINCH OUT WIRE
- ALL (8) RELAYS ARE DIODE-SUPPRESSED WITH NO VOLTAGE SPIKES
Fitment:
- Engine: 3.6-liter Pentastar V6
- Trans.: Automatics(922.6/NAG1) and Manual Transmissions(NSG370)
