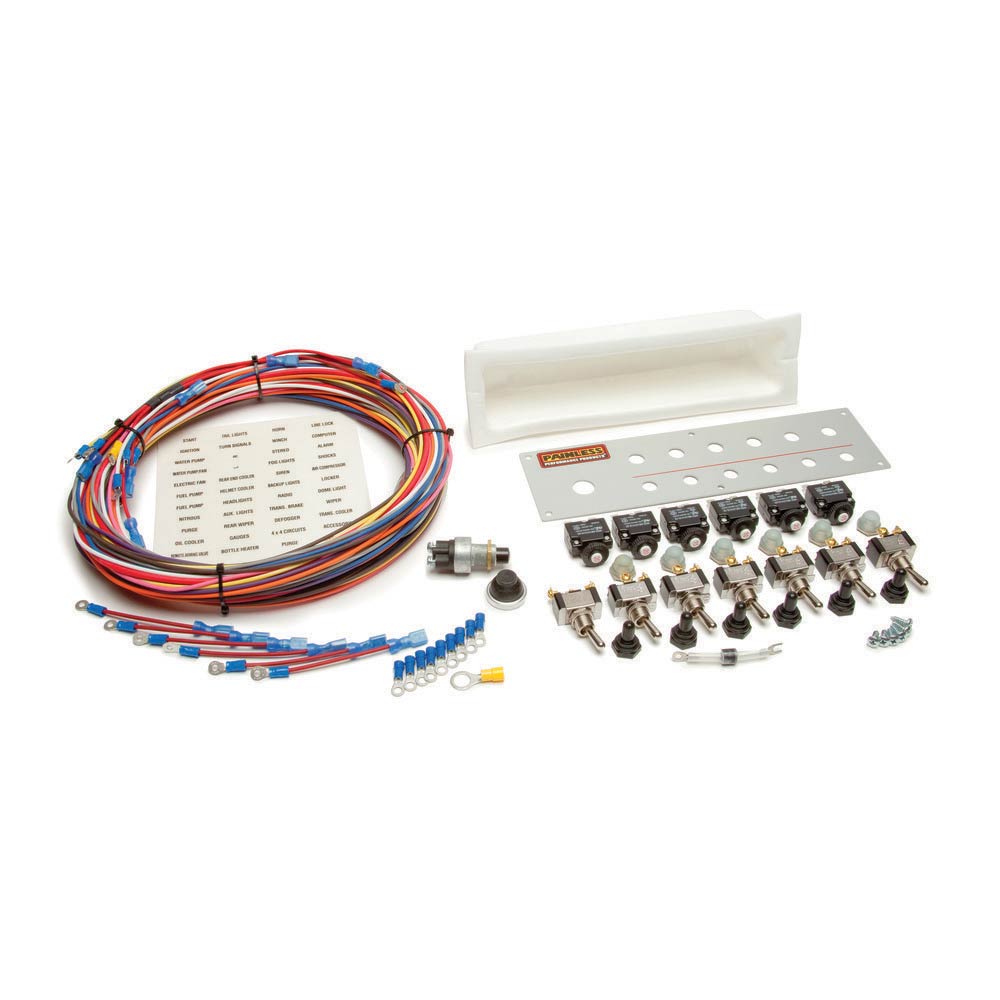

Offroad 6 Toggle Switch/Push Button Start/Dash Mount
The Offroad 4 and 6 Toggle Switch Panels are designed to handle some of the harshest conditions an Offroad Vehicle can be exposed to. These Switch Panels feature a formed polyethyleneethylene liner to seal off all of the rear connections on the individual toggle switches AND the Ignition or Push Button Starter Switches. This same polyethyleneethylene liner also acts like a gasket between the switch panel face plate to the dash or to the switch panel box; creating a highly water-resistant seal.
The panels with the Keyed Ignition Switches include a robust rubber sealed outer nut to protect the lock cylinder from the elements both with and without the key inserted.
All Circuit Breakers and 20 Amp toggle switches are protected by the included weather-resistant boots on the outside and all circuits are protected with push-button, resettable circuit breakers. Each Output Wire is 18 feet of TXL wire and machine terminated with vibration resistant, fully insulated terminals.
Peel and Stick Labels are included to help you identify what each output is connected to and cover most applications.
Number of Circuits: 9 CIRCUITS
Harness Length: 18 FT LONG 14 GAUGE TXL WIRES
Fuse Type: (3) 20 AMP Push-Button Reset Circuit Breakers, (2) 15 AMP Push-Button Reset Circuit Breakers, (1) 10 AMP Push-Button Reset Circuit Breakers
Firewall Passthrough: Varies on routing through vehicle
Color Code Based: Painless Specific
Circuit Designations: 9 Circuit System
Connections Included: (1) Main Power 10 Gauge Red Input Wire (1) Start Signal 14 Gauge Purple Wire (1) Ignition Signal 14 Gauge Pink Wire (1) Output Signal 14 Gauge Gray/White Wire (1) Output Signal 14 Gauge Blue Wire (1) Output Signal 14 Gauge Yellow/White Wire (1) Output Signal 14 Gauge White Wire (1) Output Signal 14 Gauge Brown Wire (1) Output Signal 14 Gauge Orange Wire
