21 Circuit Pro Street Chassis Harness w/Switch Panel

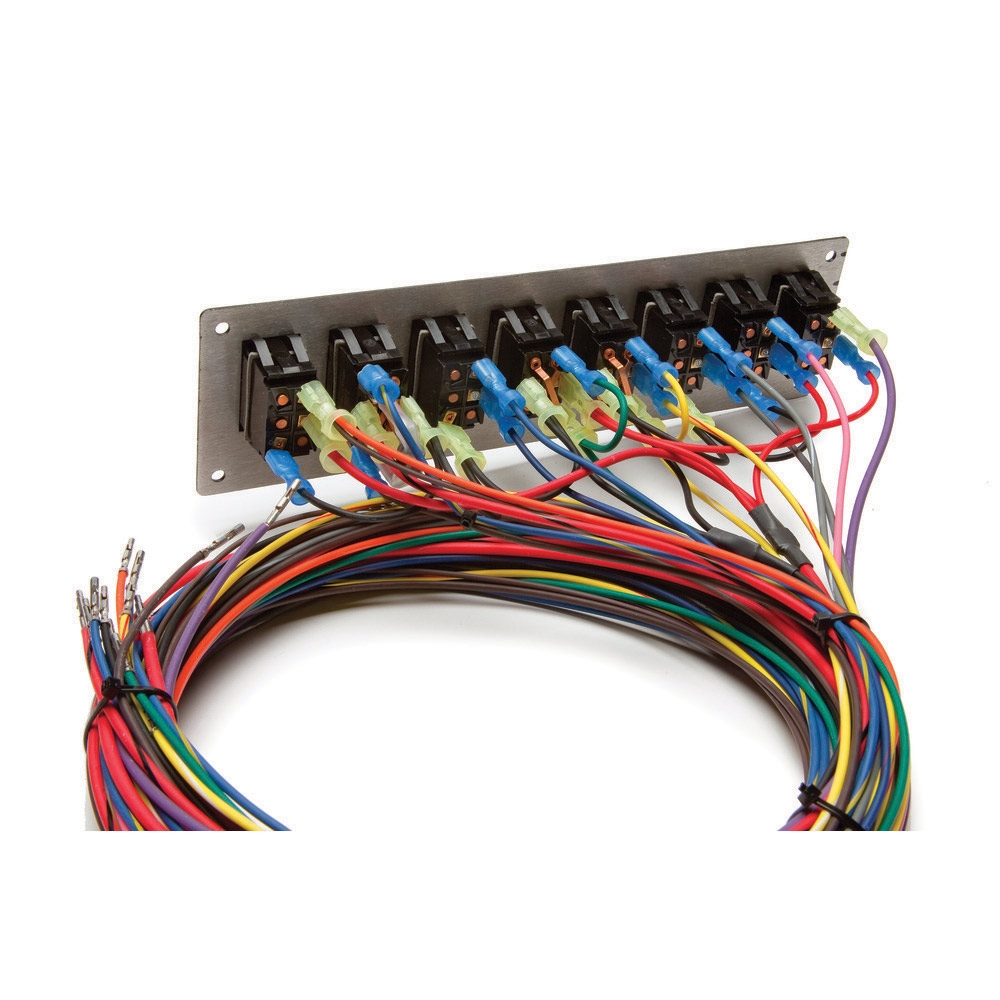

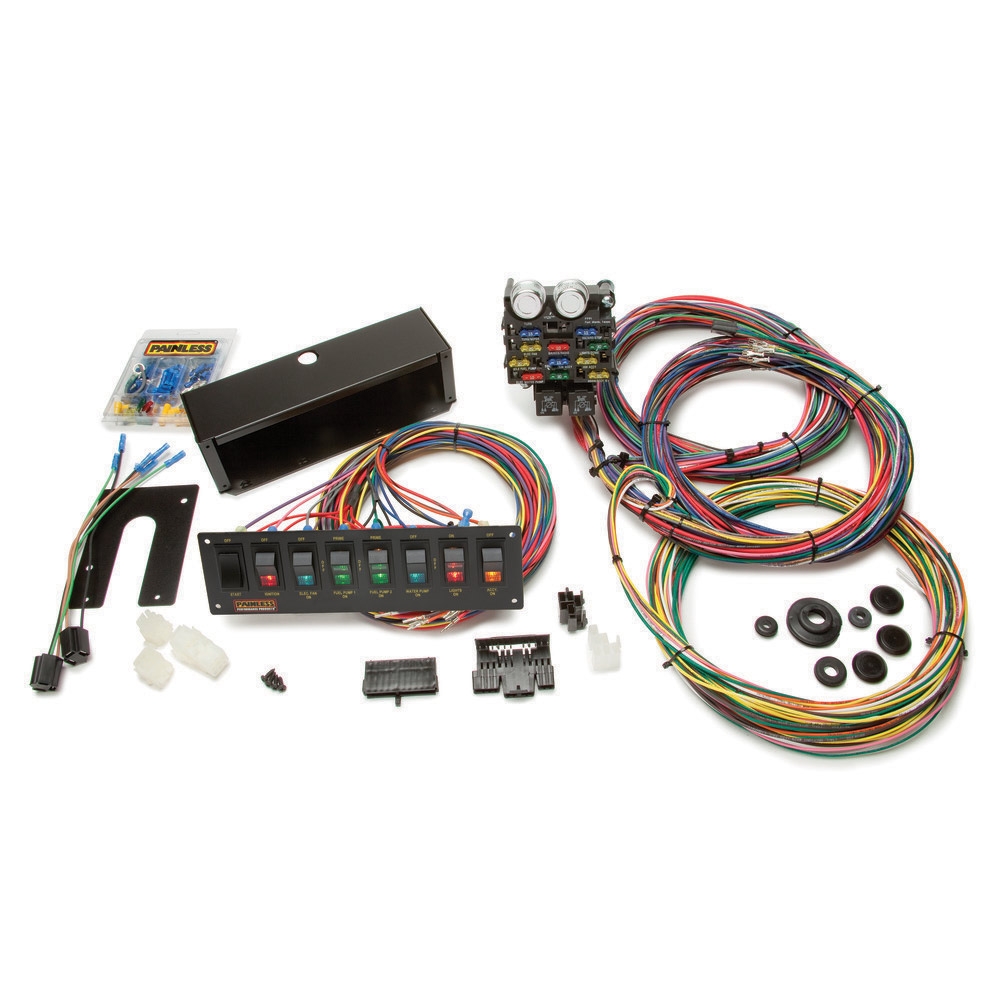

If you are looking for a switch panel and harness to keep your racecar streetable, this 21 circuit harness and switch panel combo is for you. As with all of our chassis harnesses this kit has all the wires labeled and is pre terminated at the fuse block for easy installation. This harness includes an optional connector if you want to use a GM column mounted ignition switch. The included switch panel is a roll bar mount 8 switch rocker panel. This panel is prewired and is a direct plug and play into this harness. Also Included is a painless mounting plate, grommets, terminal assortment kit, and the necessary connectors for your turn signal switch, headlights, and alternator. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
The switch panel is prelabed for the following:
- Start
- Ignition
- Electric Fan
- Fuel Pump #1
- Fuel Pump #2 / Accessory
- Water Pump
- Lights
- Accessory
Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay
Harness Length: Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Grommet
Circuit Designations: Printed on Wires
This harness includes these circuits:
- Accessory #1
- Accessory #2
- Brake Lights
- Charging
- Dome Light
- Electric Fuel Pump #1
- Electric Fuel Pump #2
- Electric Water Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn
- Ignition Coil
- Park Lights
- Radio and Gauges
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
Including wires for:
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
Fitment:
- Make: "Relay Kit" -"Headlight" "Relay Bank"
- Model: "Powerbraid Chassis" "Tool"
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
