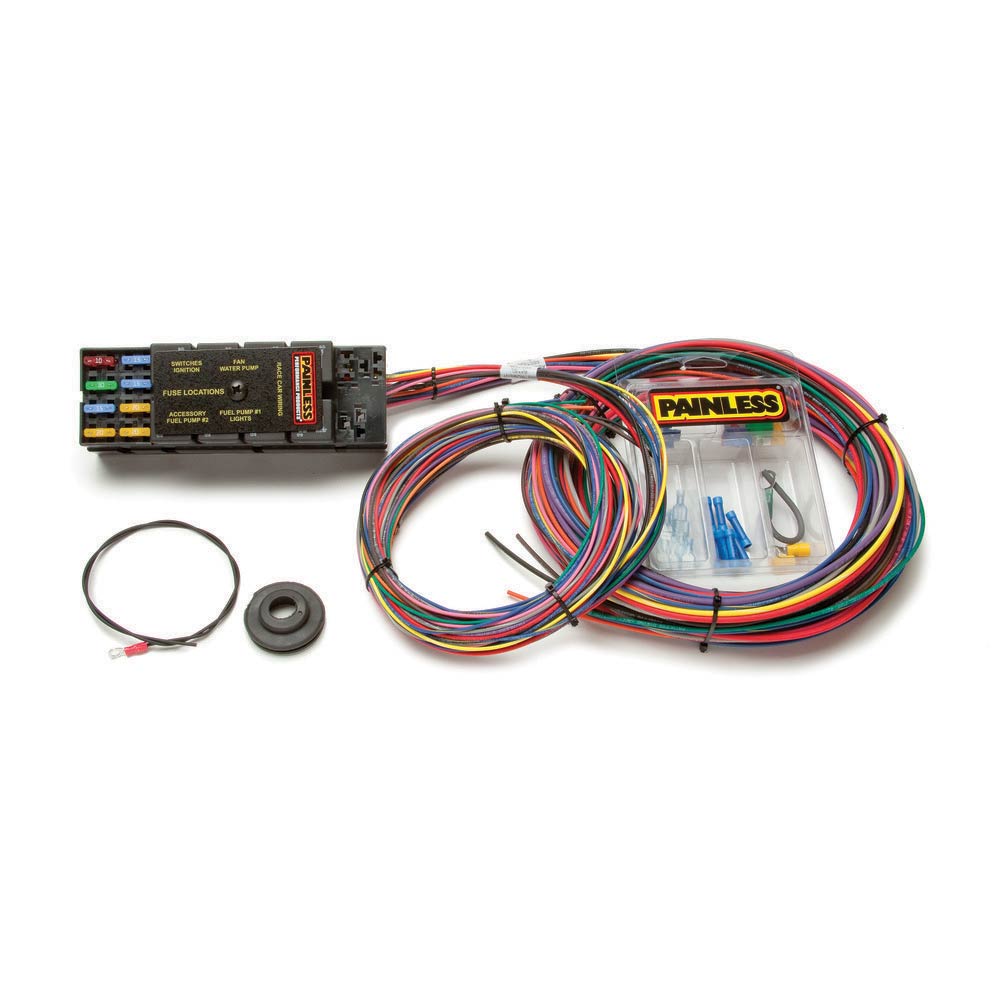

10 Circuit Race Only Chassis Harness
This 10 circuit Race only harness features a relay for each fused circuit. The wires are pneumatically terminated and pre-inserted into the fuse block and relay blocks. The fuse block is labeled for the circuits below but can be used to power any 12 volt electrical component. If you are also looking for a switch panel we offer the two switch panels below that are designed to be plug and play and will plug directly into this harness. Each wire is oversized and custom printed with the circuit identification as well as using GM color codes for easy installation.
This harness is designed to be used with our 50201 and 50202 non-fused switch panels but can also be used with any custom fabricated switch panel.
Number of Circuits: 10 Circuit - 8 Fuses w/ 8 - 40 Amp Relays
Harness Length: 15 Feet to Accessories / 10 Feet to Switch Panel
Fuse Type: Blade
Firewall Passthrough: Grommet
Circuit Designations: Printed on Wires
This harness includes these circuits:
- Accessory (Relay)
- Electric Fuel Pump #1 (Relay)
- Electric Fuel Pump #2 (Relay)
- Electric Water Pump (Relay)
- Electric Fan (Relay)
- Fused Power Source
- Headlights (Relay)
- Ignition Coil (Relay)
- Starting (Relay)
- Tail Lights
Fitment:
- Make: 80130
- Model: Powerbraid Tool
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
