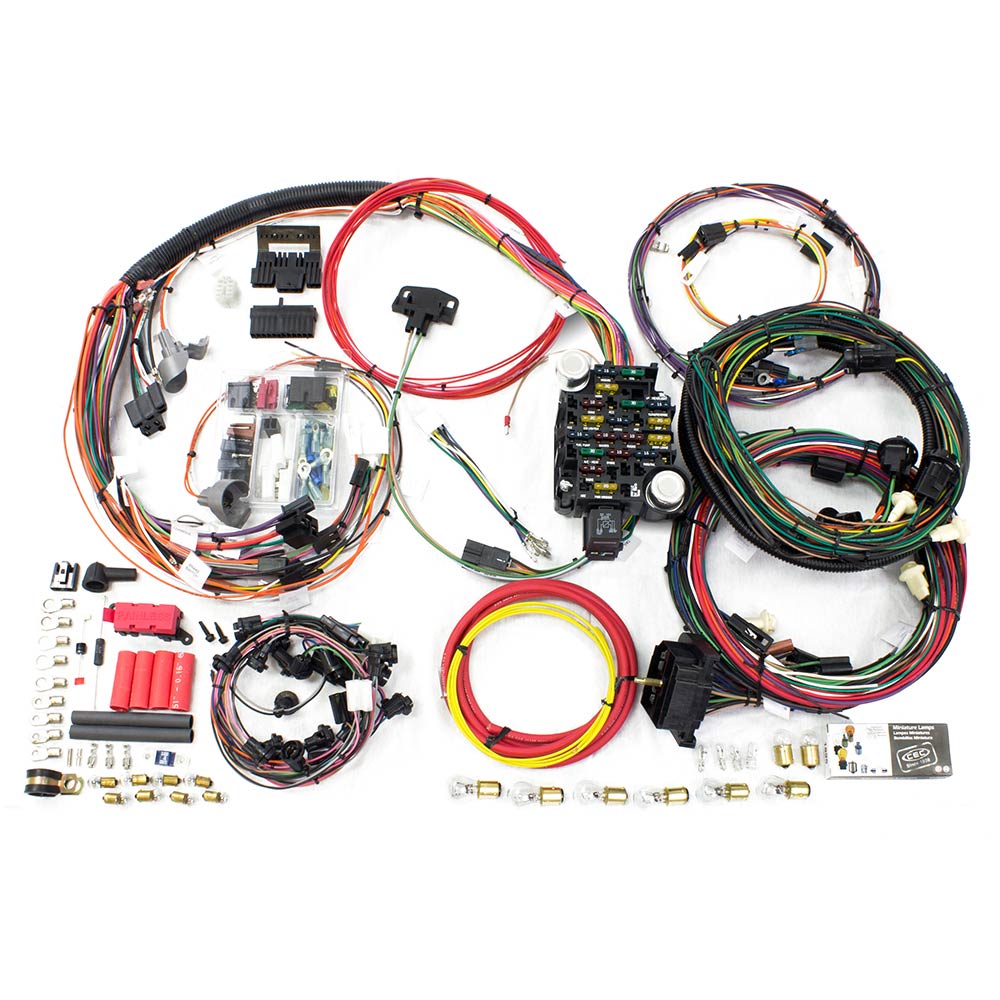

26 Circuit Direct Fit 1969 Chevelle / Malibu Harness
This direct fit wiring harness gives you everything you need, plus more to wire your 1969 Chevelle! Not only are there provisions for connecting standard factory components, we also provide what you will need for aftermarket components. Including options like a console sub-harness, two gauge cluster pigtails, and even a fully integrated ground circuit. This harness follows all of the same wire routing found on the factory harness which allows you to utilize the factory harness attachment points. Extra length has even been added to the headlight section to be routed behind the driver side inner fender for a cleaner look. Also available is a 120+ page manual full of color schematics, photos, and step-by-step instructions!
Numerous components have the connectors and terminals pre-installed to make connections plug-n-play
All exterior lights have the correct sockets and bulbs pre-installed
6 gauge charge wire and 150 amp MIDI fuse
Fully integrated ground circuit
120+ page manual full of color schematics, photos, and step-by-step instructions
Note: Options not supported in these harnesses are: wiring for the TCS relay for turbo 400 transmissions, wiring for the factory power window/locks, and factory A/C wiring. These harnesses do include the switch power wire for the factory power window/locks and A/C. These harnesses do include a new blower motor harness for those with heat only systems.
Number of Circuits: 26
Complete Automotive Wiring Harness For:
1969 Chevrolet Chevelle or Malibu
This harness includes circuits for:
- A/C and Heat
- Accessory
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Courtesy and Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Trunk Light
- Turn Signals
- Under Hood Light
- Wipers and Washer Pump
* Including Wires For:
- Aftermarket Gauge Power
- Brake Warning Light
- Fuel Gauge
- Gear Indicator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
Fitment:
- Year: 1969
- Make: Chevrolet
- Model: Chevelle, Mabliu
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
