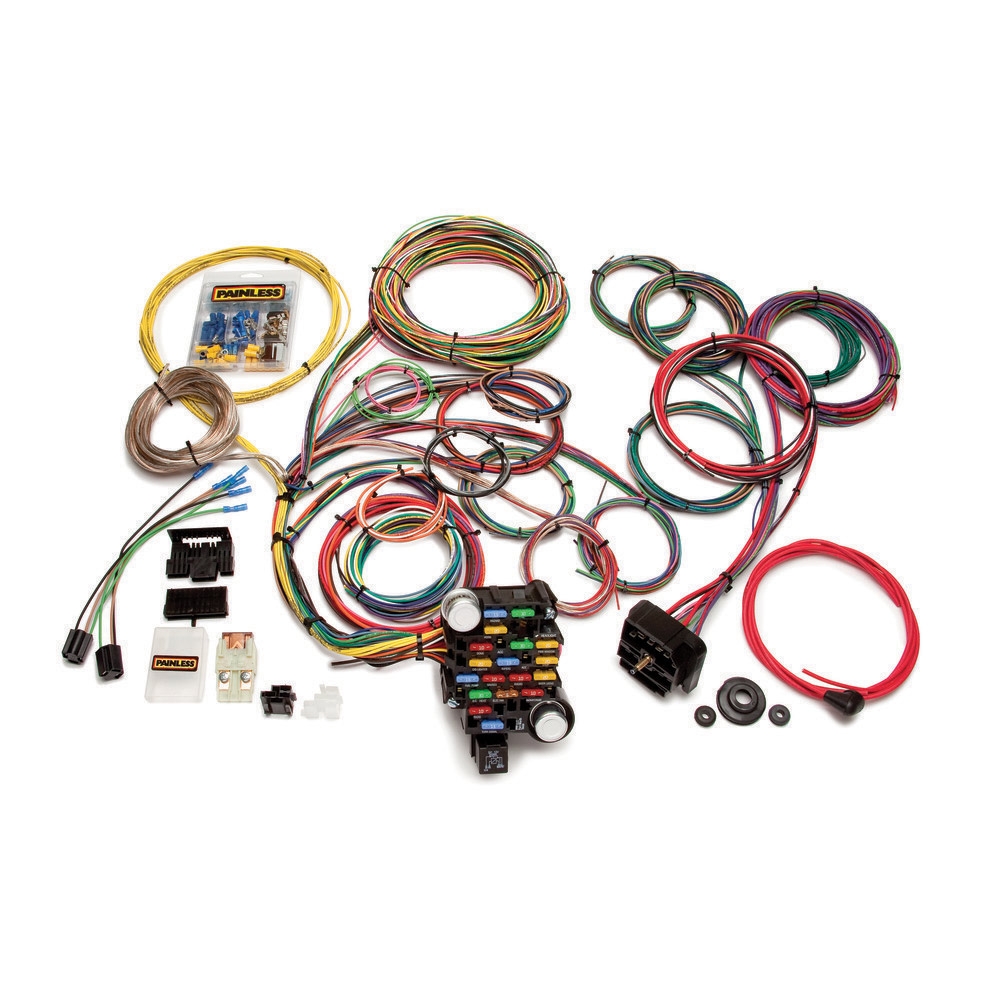

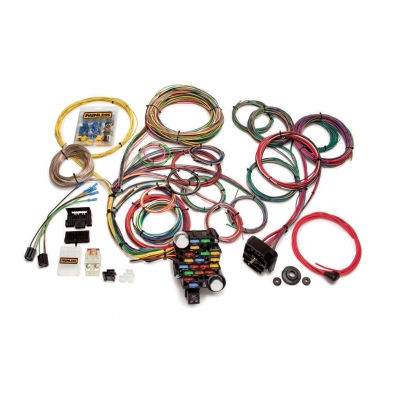

28 Circuit Classic-Plus Customizable Bulkhead Harness
This 28 circuit universal kit is great for hot rod or street rod builds, but you'll find that it's easily adaptable to almost any vehicle and has enough length to handle full size and muscle cars. To pass through the firewall, a bulkhead connector is utilized, giving you the ability to disconnect the engine/headlight section wiring at the firewall. The provided to-scale peel and stick template makes firewall trimming easy. This harness comes with open ended ignition switch wires that can easily be adapted to any ignition switch out there. Included with this harness are the following parts; a GM engineered fuse block and bulkhead connector; GM turn signal connectors; pre wired plugs for the headlights and dimmer switch; and each wire is printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits: 28 Circuits - 18 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Universal
Circuit Designations: Printed on Wires
This harness includes circuits for:
- A/C and Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
