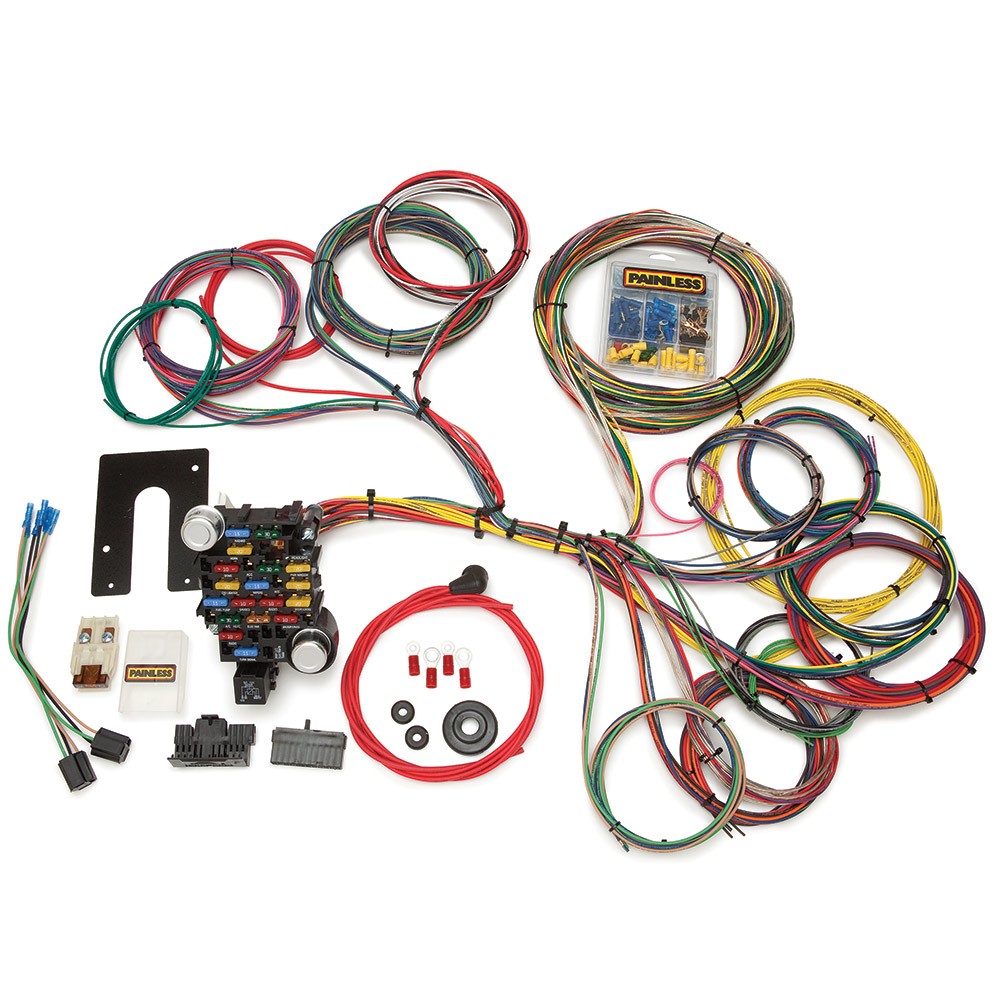

28 Circuit Classic-Plus Customizable Pickup Chassis Harness -Key In Dash
This Painless 28 circuit kit will provide you with all those power accessory circuits you have been looking to add to your pickup chassis. You'll find that the ample wire lengths make this kit especially suited for trucks with long beds and extended cabs. This wiring harness has open-ended ignition switch wiring that is easily adapted to any ignition switch. If using a GM Keyed Column, use part number PPP10203. Included with this harness are the following parts; a GM engineered fuse block and Painless mounting bracket; GM turn signal connectors; pre wire plugs for the headlights and dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits: 28 Circuits - 18 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: GM
Circuit Designations: Printed on Wires
Connections Included:
GM Steering Column Turn Switch, Two Headlight Pigtails, 10SI and 12 SI Alternator, Dimmer Switch
This harness includes circuits for:
- A/C and Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
Fitment:
- Make: Universal
- Model: Universal
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
