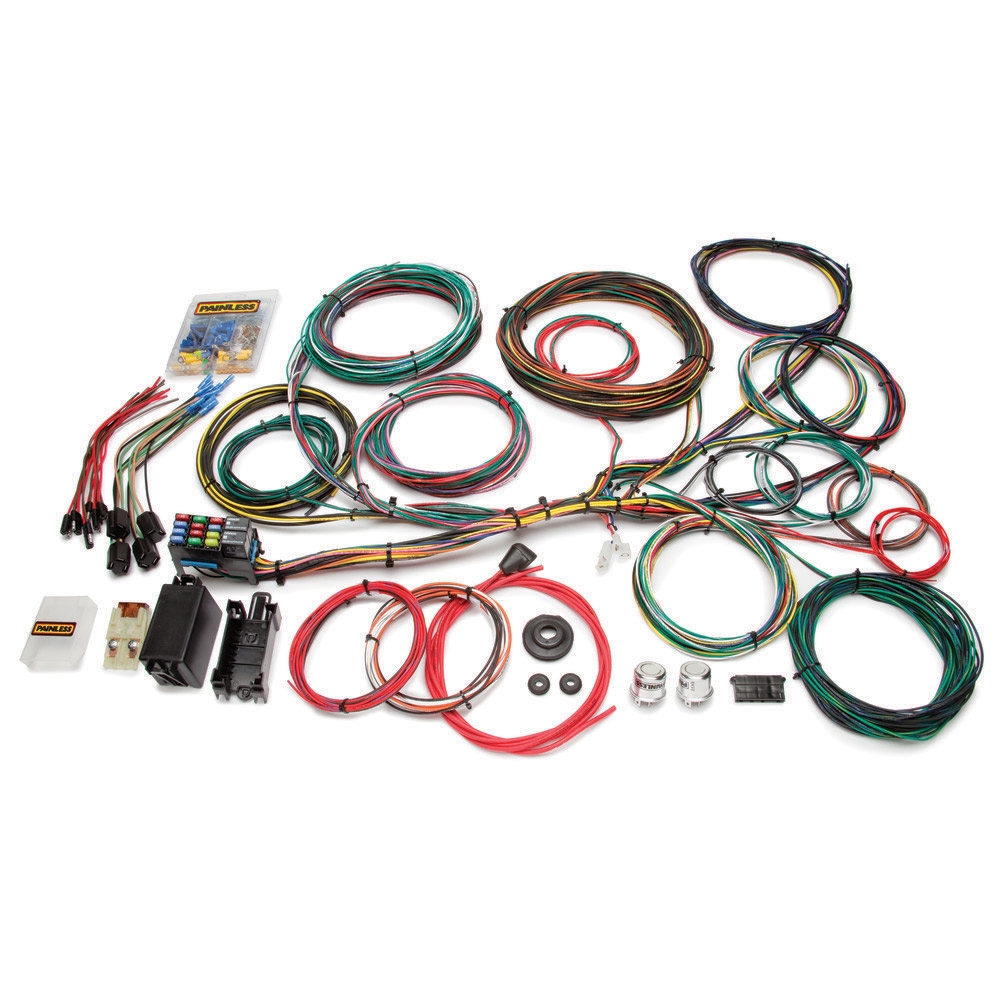

21 Circuit Customizable 1966-1976 Ford Chassis Harness
This 21 circuit Painless Wiring kit can be used in almost any application where you want Ford color coded wires. This wiring harness uses our unique covered micro-fuse block that is compact for easy mounting. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Mini Blade and Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Factory Ford
Circuit Designations: Printed on Wires
This harness includes circuits for:
- A/C and Heat
- Accessory (Relay)
- Backup Lights
- Brake Lights
- Charging
- Dome and Courtesy Lights
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Brake Warning Light
- Fuel Gauge
- Gear Indicator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
NOTE: THIS HARNESS WILL NOT WORK ON THUNDERBIRDS
Fitment:
- Year: 1966-1976
- Make: Ford, Lincoln, Mercury
- Model: Universal
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
