21 Circuit Classic Customizable Trunk Mount Chassis Harness

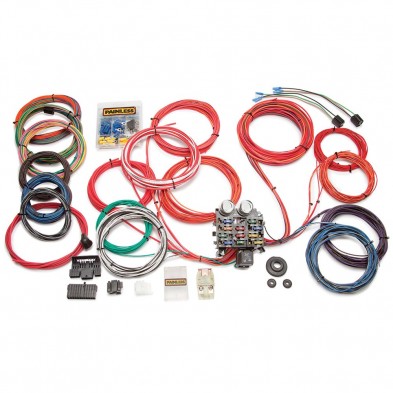

This Painless 21 circuit kit has extra-long wires allowing you to mount the fuse block in a remote location such as in the trunk or behind the rear seat. This wiring harness is highly adaptable to almost any vehicle. Included with this harness are the following parts; GM turn signal and column mounted ignition switch connectors; pre wire plugs for the headlights and dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits: 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Extra Long Universal
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough:Grommet
Color Code Based: Universal
Circuit Designations: Printed on Wires
Connections Included:
GM Column mounted Ignition and Turn Switches, Two Headlight Pigtails and Headlight Dimmer Switch.
This harness includes circuits for:
- A/C and Heat
- Accessory
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
Fitment:
- Year: Universal
- Make: Universal
- Model: Universal
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
