28 Circuit Direct Fit 1966-77 Bronco Harness w/o switches

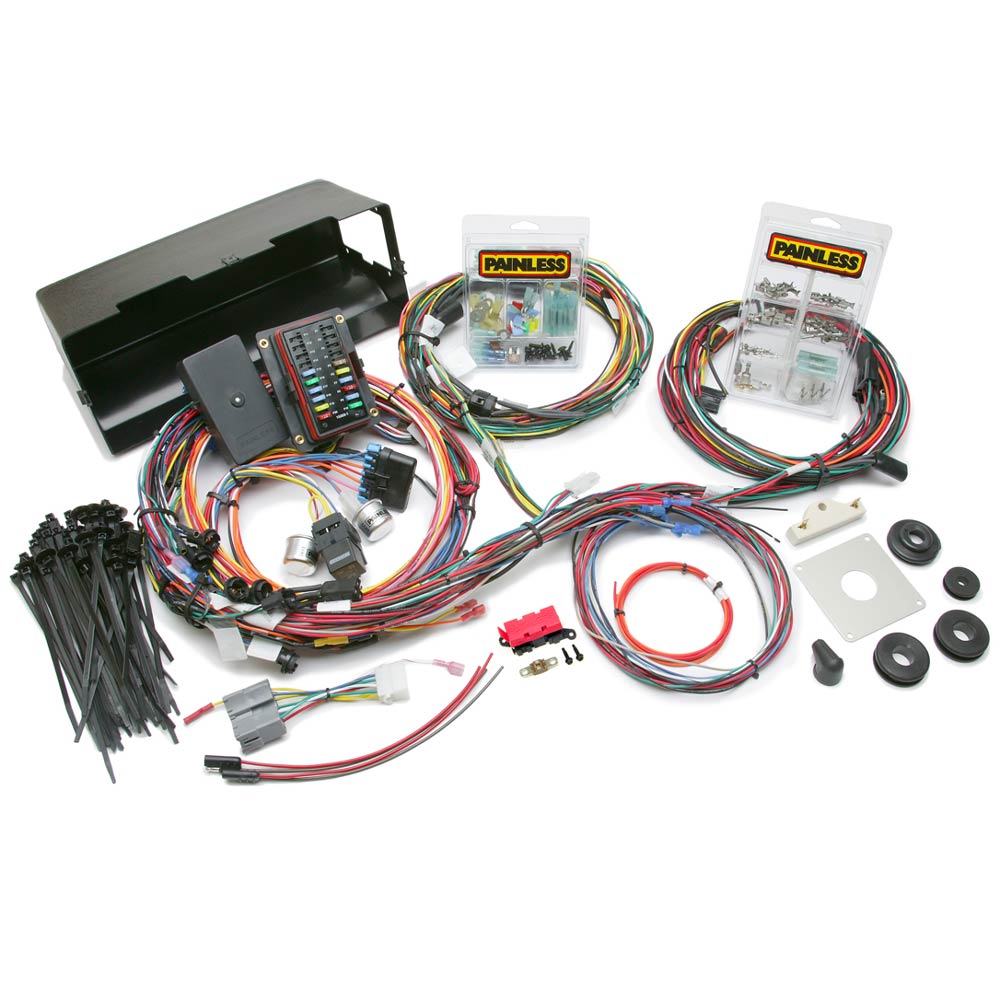

Designed with input from Ford Bronco owners everywhere, this Painless Performance 28 circuit direct fit 1966-1977 Bronco wiring harness sets a new standard in chassis wiring. This harness includes a molded plastic glove box that not only replaces the factory cardboard one that also mounts our weatherproof fuse block. You'll also find factory-style molded exterior light connectors, Ford turn signal connectors and a Ford dimmer switch connector. This harness has most of the factory connections are already pre-terminated. Also available is an 80+ page full color step by step install manual with over 80 photos, drawings and harness schematics. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
Number of Circuits: 23 Fuses w/ Horn Relay
Harness Length: Factory Fitment
Fuse Type: Mini Blade and Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: 1966 - 1977 Bronco
Circuit Designations: Printed Wire Tags on all Connectors and Printed on Wire for Open Ended Wires
Connections Included:
Hazard Flasher, Turn Flasher, Horn Relay, Heater Switch, Turn Switch, Wiper Motor, Dash Indicators, Lights and Instruments, Wiper Washer, Headlights, Park Lights, Turn Signals, Horn, Dimmer Switch, Voltage Regulator, Tail Lights and a parts kit that includes the neccessary factory Ford terminals to reuse factory connectors for the Headlight Switch, Ignition Switch, Wiper Switch, Dash Mounted Hazard Switch, Dash Label Lights, 1973-UP Turn Signal Switch, 1966-1967 Turn Switch, Brake Warning Light
Complete Ford Color-Code Direct Fit Wiring Harness for:
- 1966 Ford Bronco
- 1967 Ford Bronco
- 1968 Ford Bronco
- 1969 Ford Bronco
- 1970 Ford Bronco
- 1971 Ford Bronco
- 1972 Ford Bronco
- 1973 Ford Bronco
- 1974 Ford Bronco
- 1975 Ford Bronco
- 1976 Ford Bronco
- 1977 Ford Bronco
This harness includes circuits for:
- A/C and Heat
- Accessory #1 B+
- Accessory #2 B+
- Accessory #3 B+
- Accessory #4 B+
- Accessory #5 Switched B+
- Accessory #6 Switched B+
- Accessory #7 Switched B+
- Accessory #8 Switched B+
- Accessory #9 B+ In ACC. Position
- Backup Lights
- Brake Lights
- Charging
- Cigarette Lighter
- Dome and Courtesy Lights
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers and Washer Pump
* Including Wires For:
- Aftermarket Tachometer
- Ammeter
- Brake Warning Light
- Fuel Gauge
- Fuel Tank Switch
- Gear Indicator Light
- Oil Gauge
- Temperature Gauge
- Voltmeter
Fitment:
- Year: 1966-1977
- Make: Ford
- Model: Bronco
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
Yogi's strives on quality customer service along with quality parts. Some of the ways we ensure to do this is to test out products on our own project cars along with working with the vendors on improvements and pricing. One of the vendors we work closely with is Painless Performance. They provide easy to use materials for your wiring needs. They label and color code all wiring products to ensure a painless install process.
