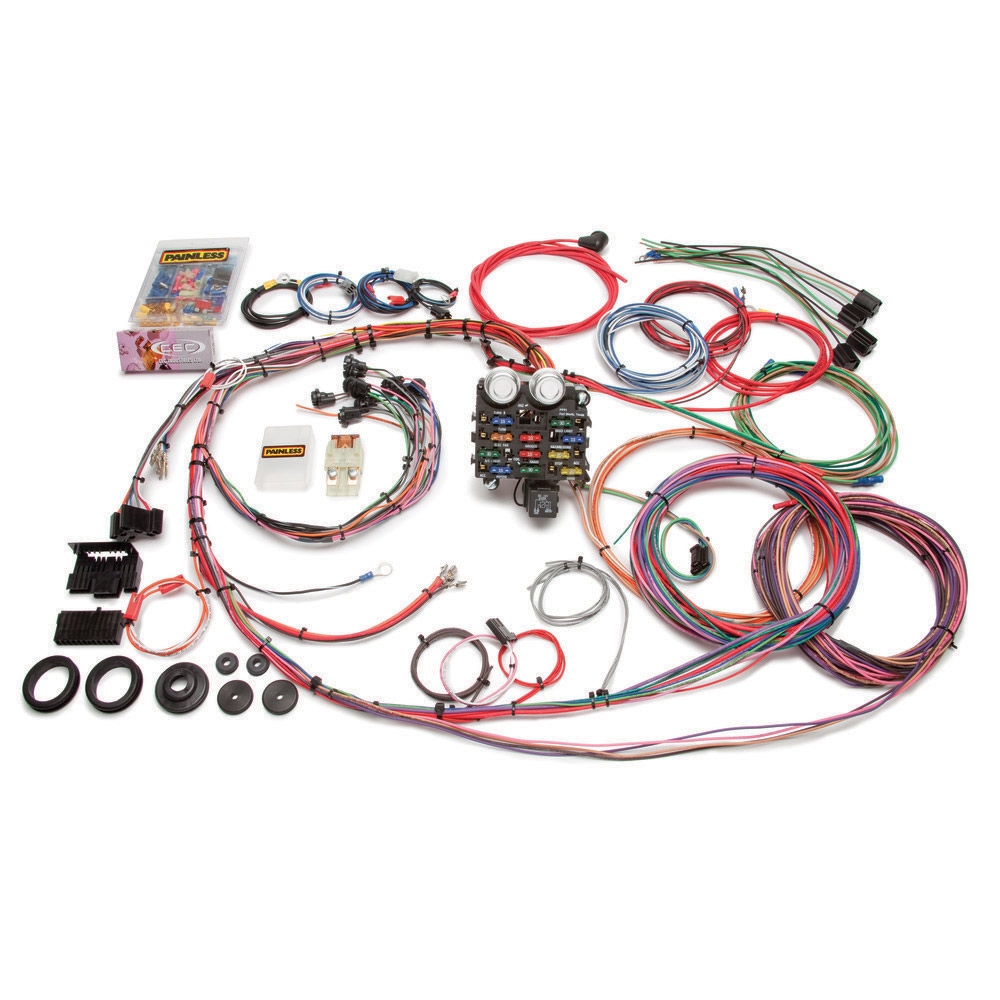

19 Circuit Classic Customizable 1963-66 GMC / Chevy Pickup Truck Harness
It truly is Painless Wiring with our 19 circuit 1963-1966 GMC/Chevy Pickup wiring harness. Many of the factory connectors already installed on the harness out of the box including: the headlight connectors and switch, dimmer switch, brake switch, wiper motor and switch, horn, dash light sockets and bulbs, and warning light sockets. This harness will work with single and dual dash turn signal indicators. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits: 19 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade and Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: GM
Circuit Designations: Printed on Wires
Connections Included:
Wiper motor, dimmer switch, brake switch, wiper switch, headlight switch, horn, alternator, dash light sockets and warning light sockets.
Complete chassis wiring harness for:
- 1963 GMC or Chevrolet Pickup
- 1964 GMC or Chevrolet Pickup
- 1965 GMC or Chevrolet Pickup
- 1966 GMC or Chevrolet Pickup
This harness includes circuits for:
- A/C and Heat
- Accessory / Four Wheel Drive Switch
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers
* Including Wires For:
- Fuel Gauge Cab and Tank
- Generator Light
- Oil Gauge
- Temperature Gauge
Fitment:
- Year: 1963-1966
- Make: Chevrolet, GMC
- Model: Truck
- Engine: Carbureted or Any Stand Alone Fuel Injection
- Trans.: Any
