PA Series Fuel Pump Module with 255 LPH Walbro Pump

Part Number: PA-4

US$235.00

Status: Preorder

EA (1)

Description

Description

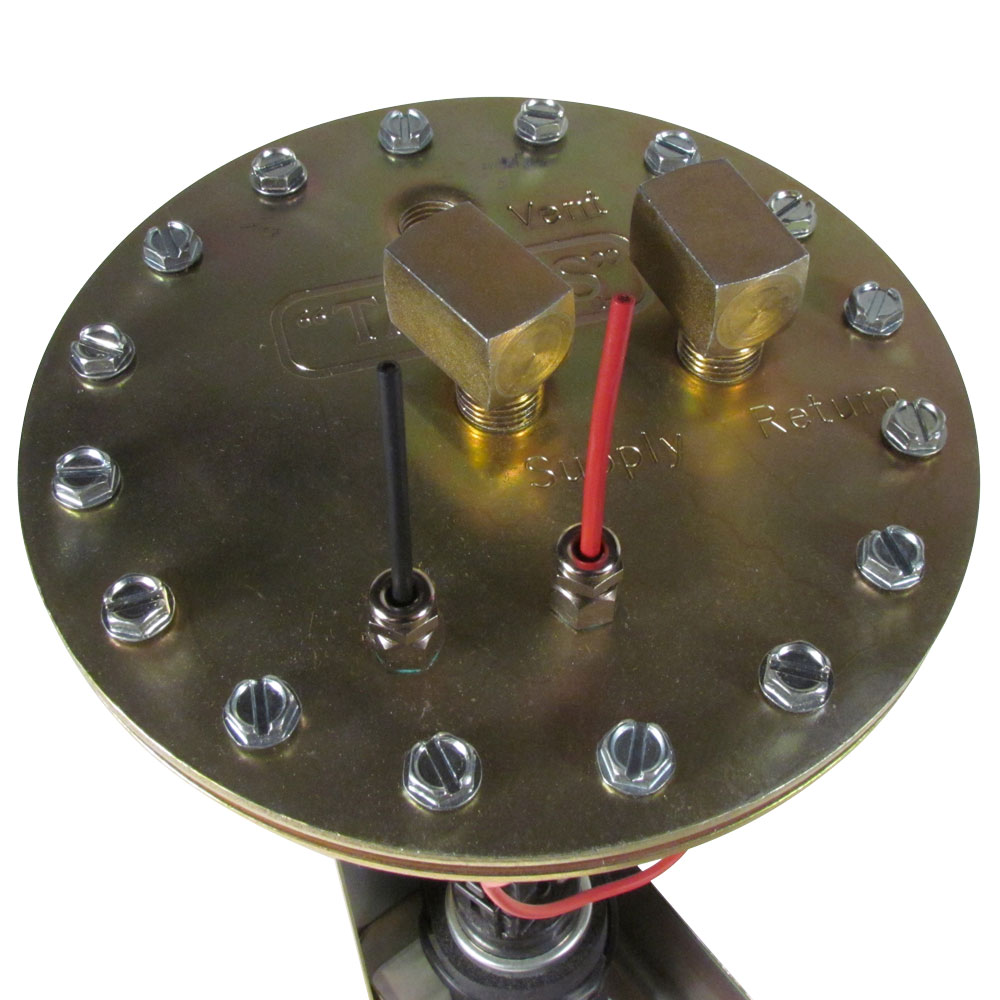

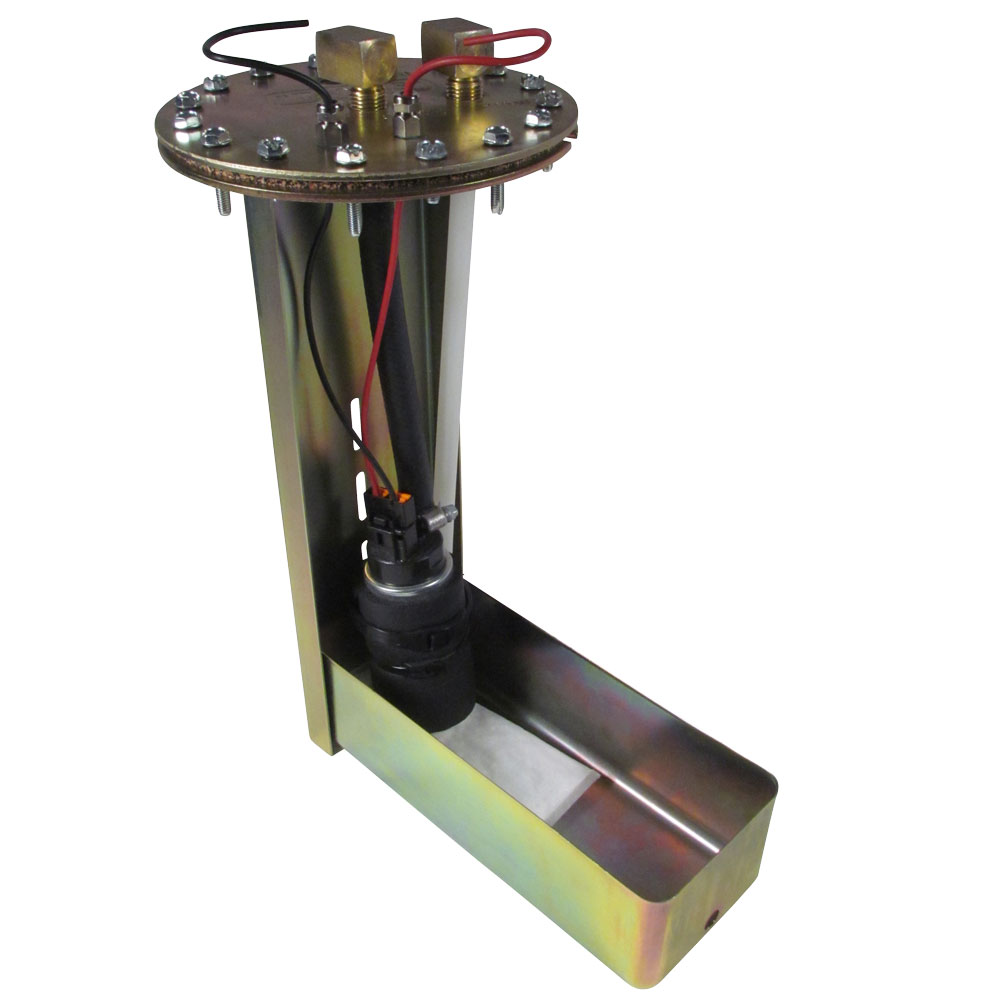

In-Tank Fuel Pump Assembly - PA Series

  • Adjustable for use in Tanks from 6"-10.5"
  • All Components are Heavy Gauge Yellow Zinc Plated Steel
  • Large Reservoir Tray Included
  • 1/4" NPT Supply and Return
  • 1/4" NPT Vent Opening
  • Up to 100 PSI Rating
  • Threaded Heavy Gauge In-Tank Mounting Ring
  • Cork Blend Gasket
  • O-Ring sealed Hardware
  • Genuine (255 LPH) Walbro Fuel Pump Supplied
  • Assembly is 1.25" Tall Above Mounting Surface

This is a Gerotor style pump and cannot be used with Pulse Width Modulation.  For pumps that are compatible with PWM SEE PA-5, PA-6, PA-8, PA-9

Tanks Inc. Only Supplies Walbro high-performance pumps in all of our fuel injection modules.  Walbro (TI Automotive) is an OE validated pump manufacturer that supplies products for two-thirds of the vehicles produced around the world today.

    The PA series fuel pump assemblies come with a female 1/4" NPT fitting on the top plate.  When converting your tank to fuel injection it is essential that your tank is properly vented.  This rollover vent valve will thread right into the PA pump assembly.  Optional 1/4" NPT Rollover Vent Valve for PA series Pumps. #VV

    For nearly 30 years Tanks Inc has been retrofitting non EFI gas tanks with internal fuel pumps using their PA Series EFI Gas Tank Conversion Module.  This In-Tank Fuel Pump module can be used to retrofit an internal fuel pump into your original gas tank.  This Kit requires a 6" area with where a 4.5" hole and 16 small mounting holes will be drilled.
