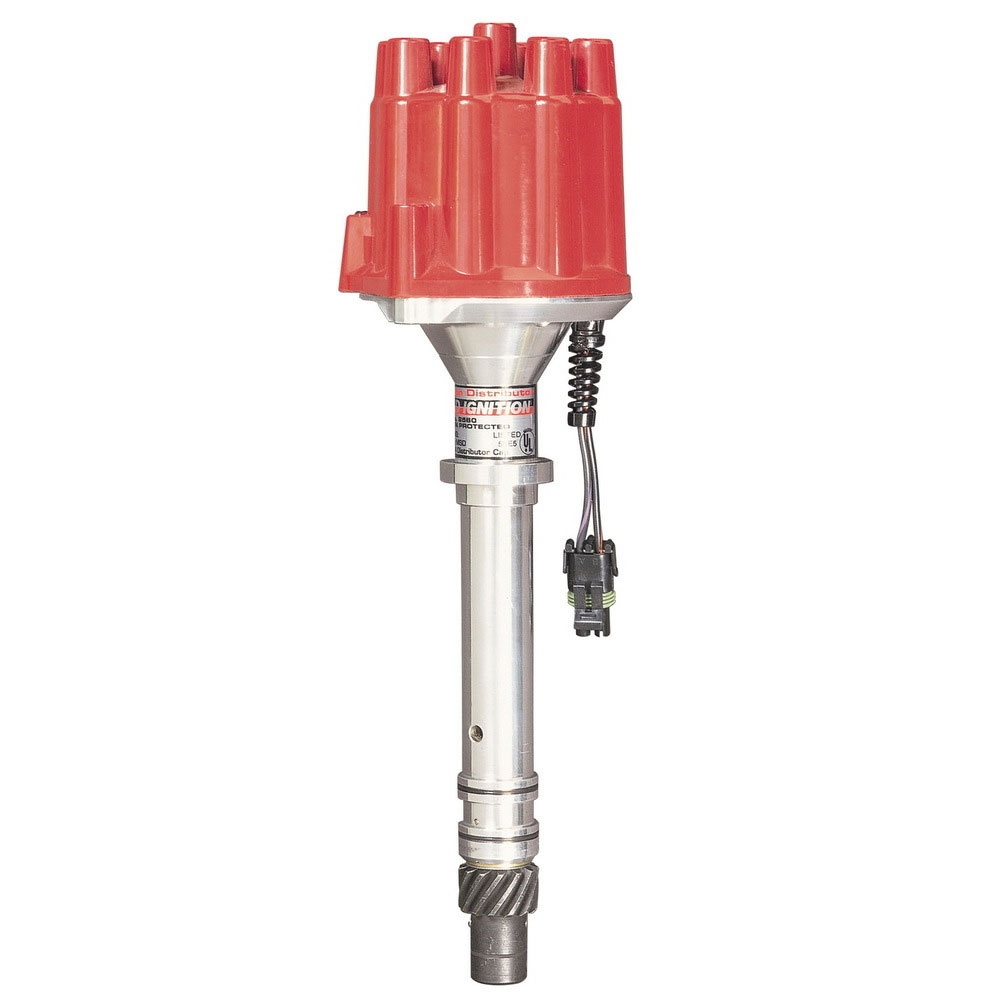

MSD Chevy V-8 Marine Certified Distributor

Chevy V-8 Marine Certified Distributor

Features:

• Designed for use in marine applications with Chevy V8 automotive engines
• Will not accept a vacuum advance canister
• Supplied with a bolt down HEI style distributor cap and rotor
• Weathertight connectors are used for locked and sealed connections
• Must be used with an MSD Ignition Control
• O-ring seals can be added to modified blocks to improve oil pressure control
• Special oil tract improves lubrication to the distributor and cam gear
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screens
