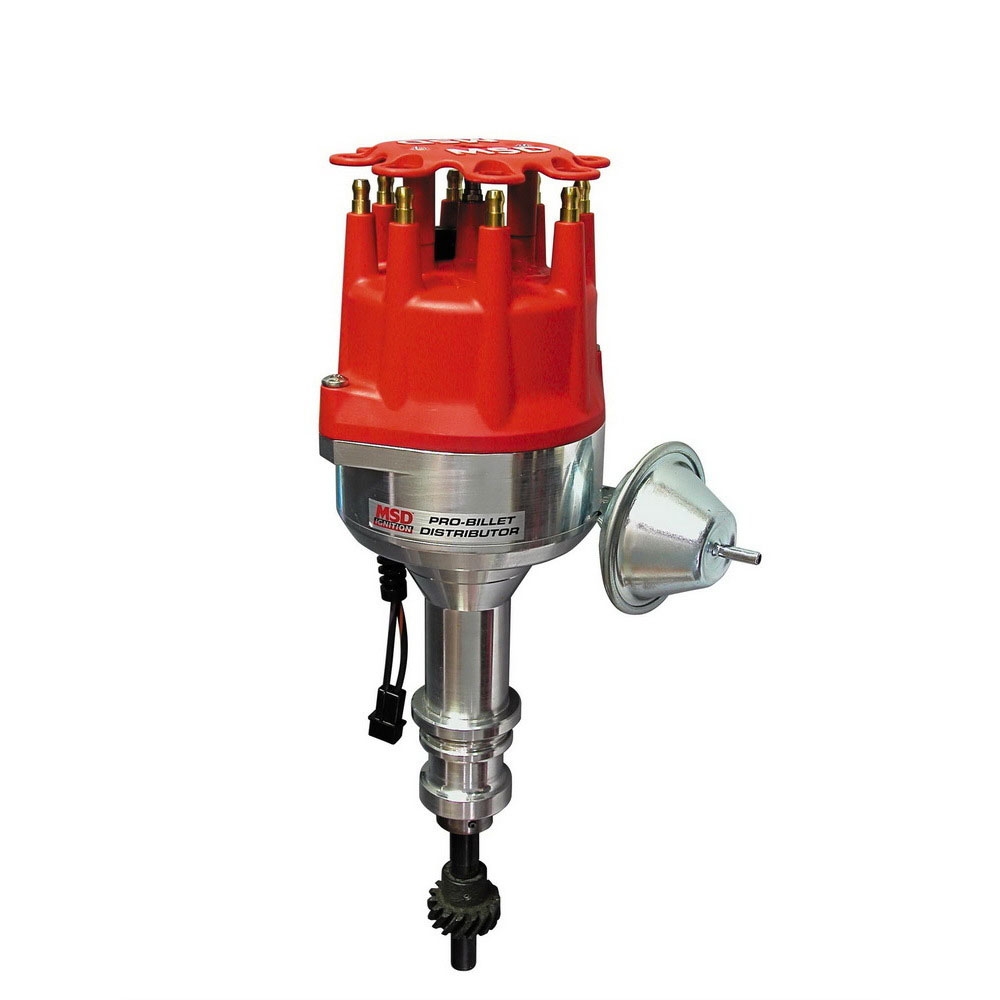

Distributor, Ford 289/302, Vacuum Advance
Small diameter distributor for 289/302 engines, includes iron gear and vacuum advance. Must be used with an MSD 6, 7 or 8-series ignition.
Features:
- Billet housing is 5/8” smaller in diameter than stock Ford distributors
- CARB E.O. Approved
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CNC machined billet aluminum housing and billet aluminum base
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
- Must be used with an MSD Ignition Control
