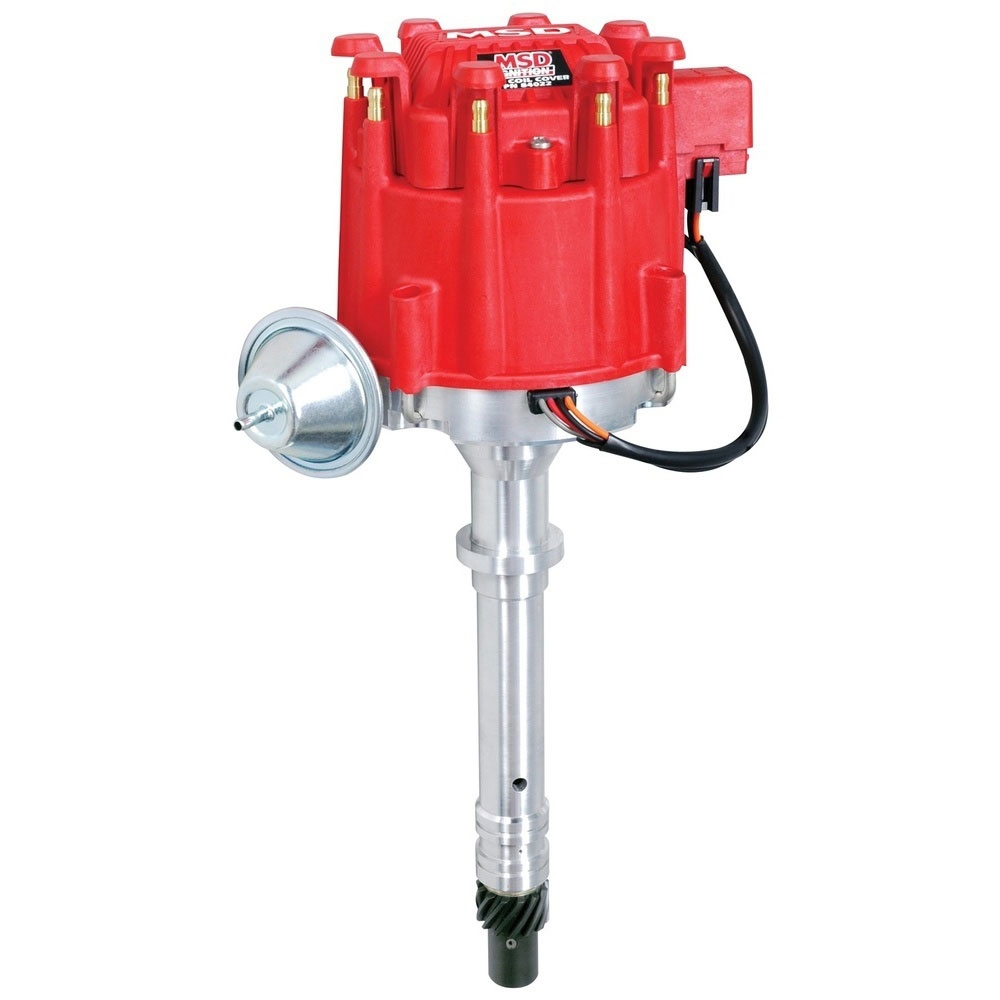

Chevy V8 Billet HEI Distributor
Replaces GM HEI Distributors that use a 4-Pin ignition module. Note: This distributor is designed to replace GM HEI Distributors that use a 4-pin ignition module.
Features:
- A complete performance HEI distributor upgrade for Chevy V8 engines
- Supplied with brass terminal distributor cap and rotor
- Full spark energy output to 9,000 RPM
- Supplied with a 8.5 amp, single spark, inductive discharge ignition module, MSD PN 83647, and MSD HEI Coil, PN 8225
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can easily be locked out
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CARB E.O. Approved
