MSD Blaster E-Core Stainless Steel Ignition Coil

Part Number: MSD8207

$69.95

Status: In Stock

Leadtime Estimate if Not in Stock
Ships In 7-10 Days
EA (1)

Description

Description

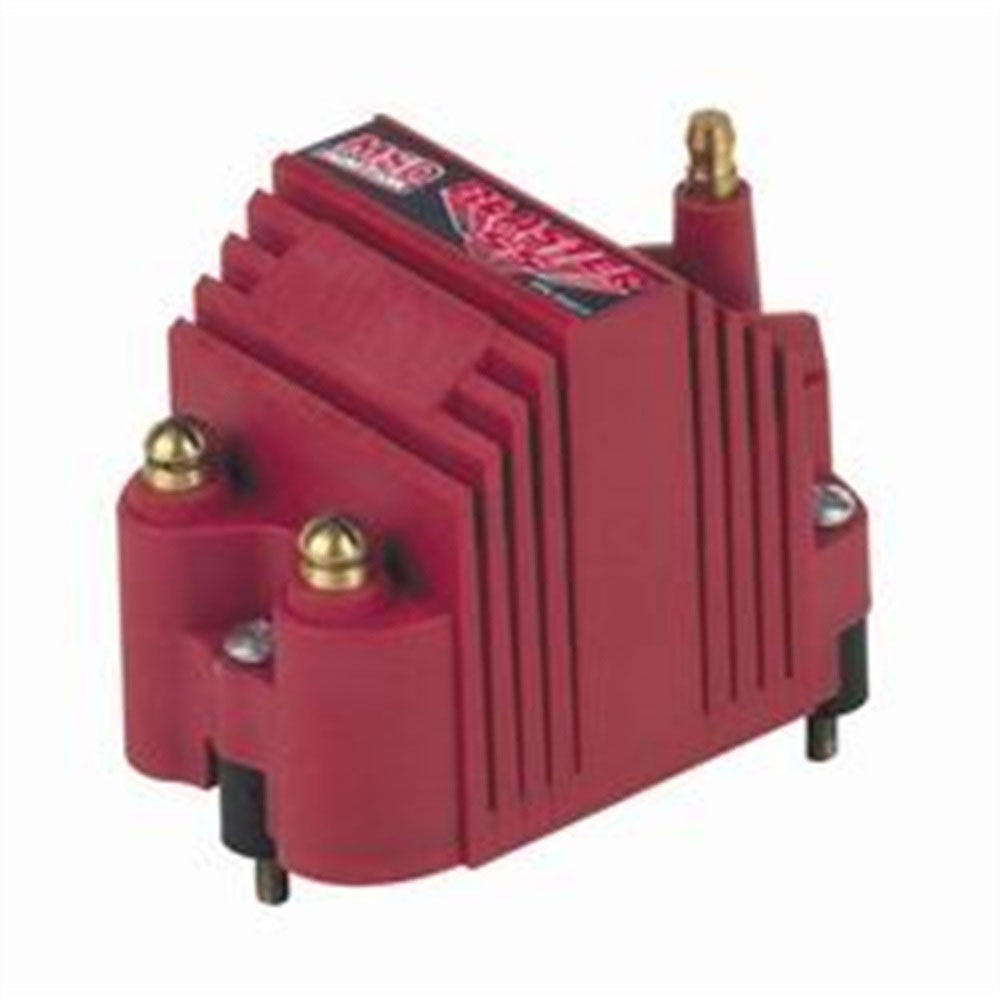

MSD Blaster SS Coil

Compact and powerful, the advanced design of the Blaster SS coil is a great addition to any MSD 6-Series Ignition.

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and a maximum voltage output of 40,000 volts! The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyethyleneurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy housing. It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.

Features:

  • Improved output coil for electronic ignitions, and MSD Ignitions
  • Efficient winding design and assembly creates a compact housing
  • Primary and secondary windings are encased in Ciba polyethyleneurethane
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Tough, rigid housing with a tall tower and brass primary terminals
  • CARB E.O. D-40-37
