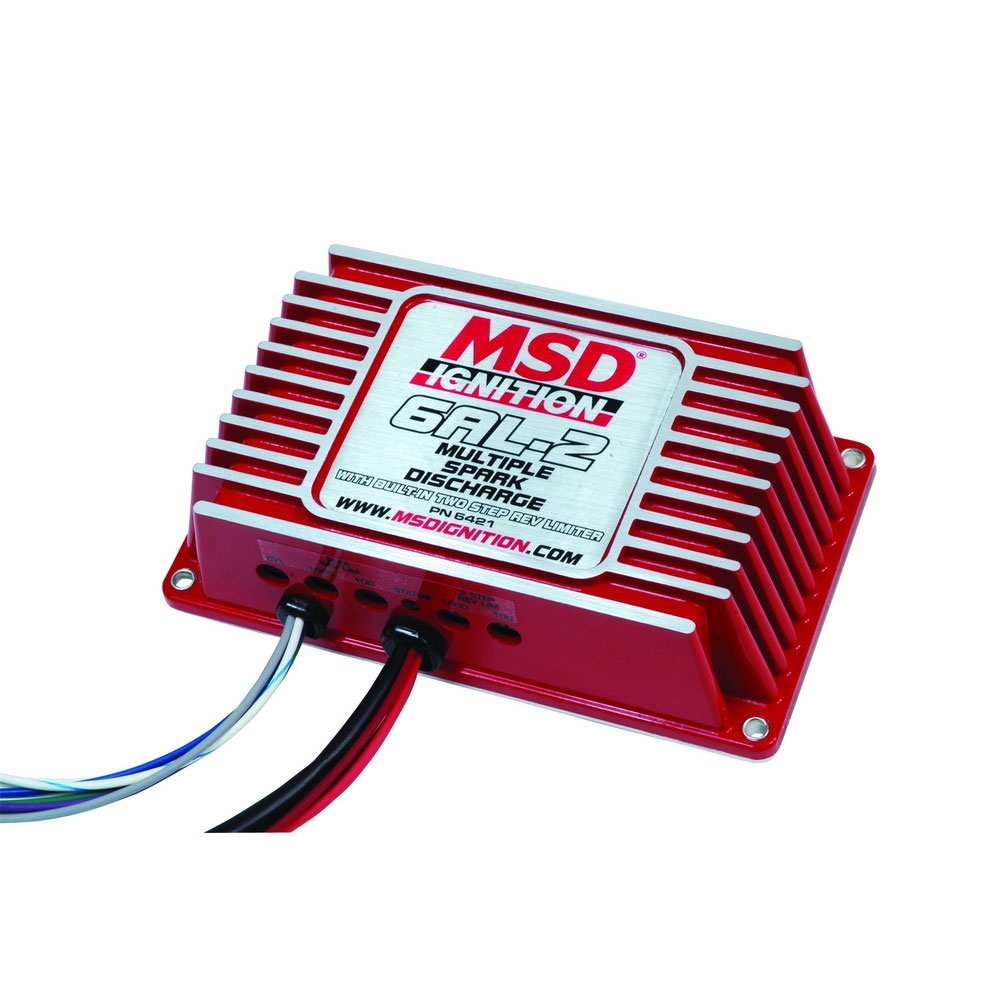

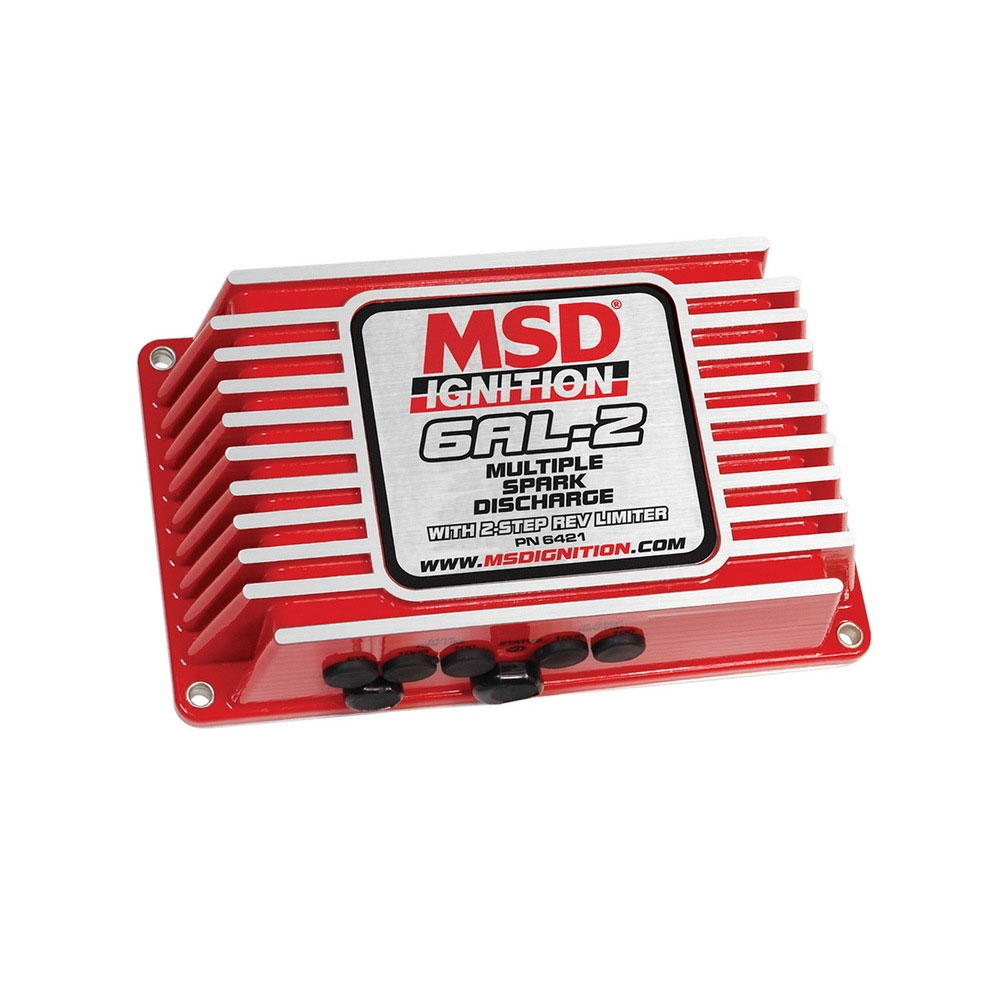

Ignition Control 6AL-2
Built-in 2 step rev-limiter with rotary dials, no chips.
Inside the cast aluminum housing you'll find an advanced micro-controller that manages the built-in two step rev-limiter. The spark output of the box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. There are two rev limiters; one for high end over-rev protection and another you can activate off a clutch or transbrake to set a launch limit. Adjustments are made via four rotary dials for 100 rpm increment control! The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.
Features:
- All new housing, same reliable digital circuitry and performance
- Built-in 2-Step rev control adjustable with rotary dials
- Higher output with up to 135 mJ of spark energy
- Accepts Hall-effect, points and mag pickup triggers
- Managed by an efficient digital processor
