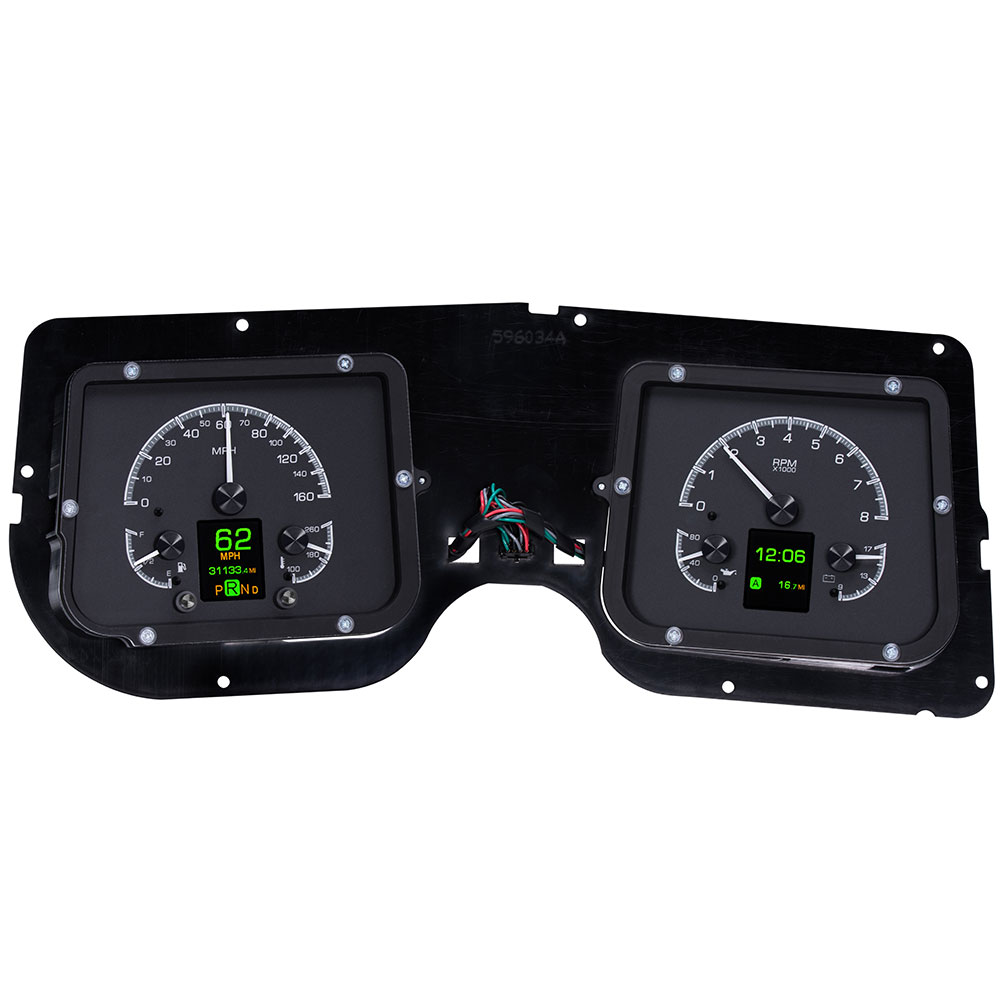

This Dakota Digital HDX kit fits directly into an original or reproduction 1969 Chevelle, Malibu or El Camino instrument housing! With three analog needles and a full-color TFT message center in each large opening. Take your pick from Black or Silver Alloy face styling. You get a full six-gauge system, including billet trim rings and TFT-display message centers, that’s ready to bolt into a stock or reproduction plastic housing (available separately).

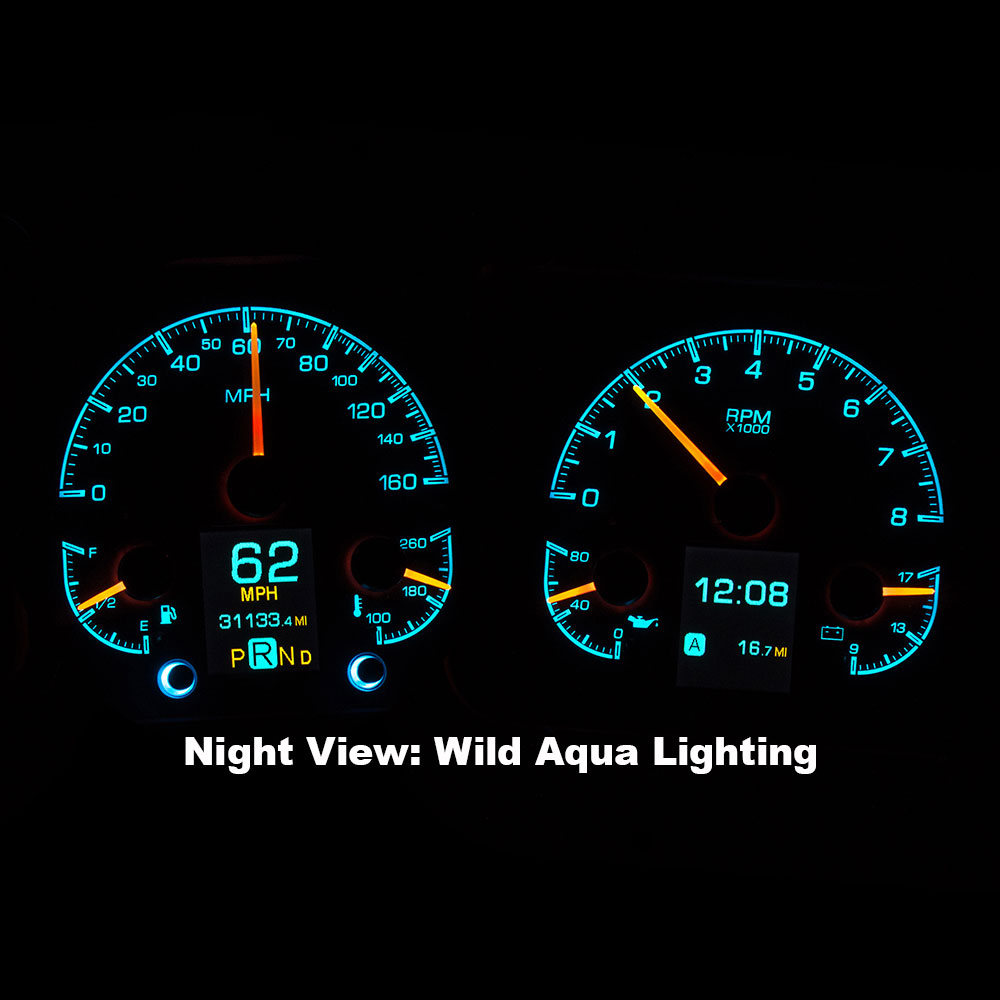

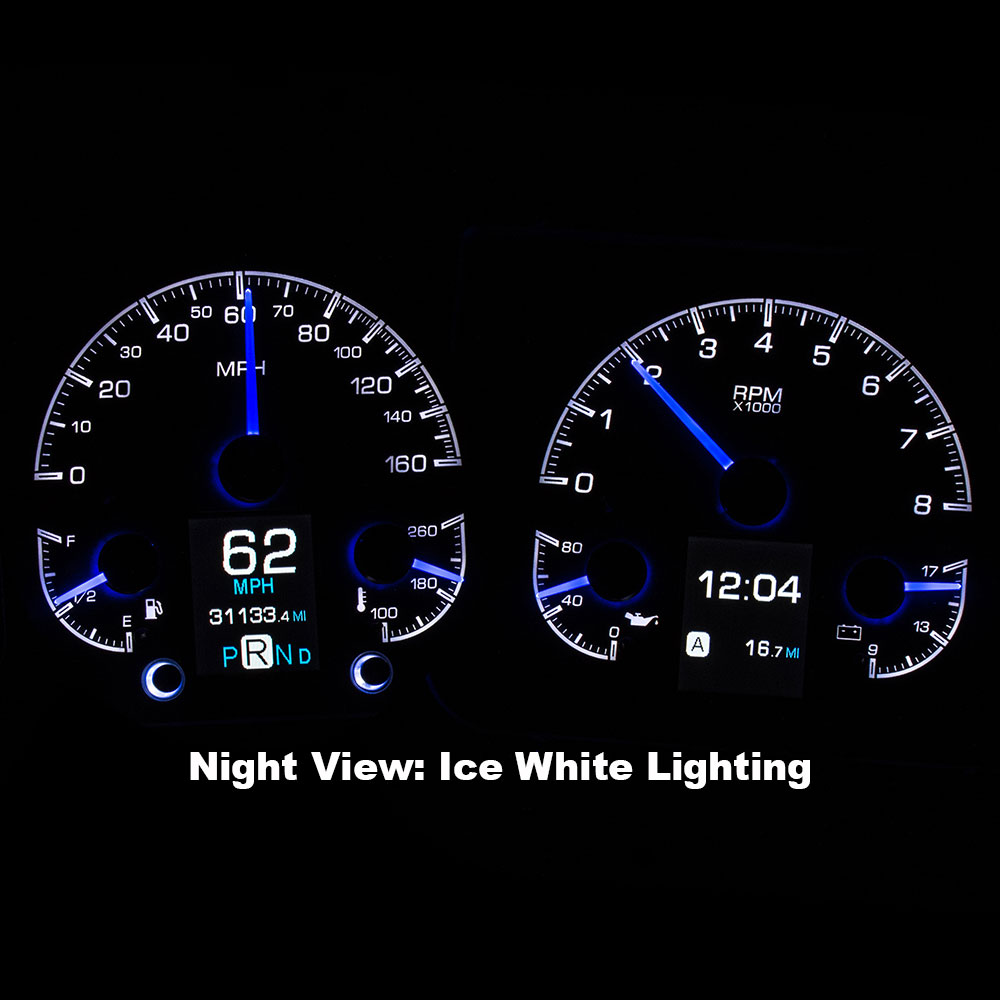

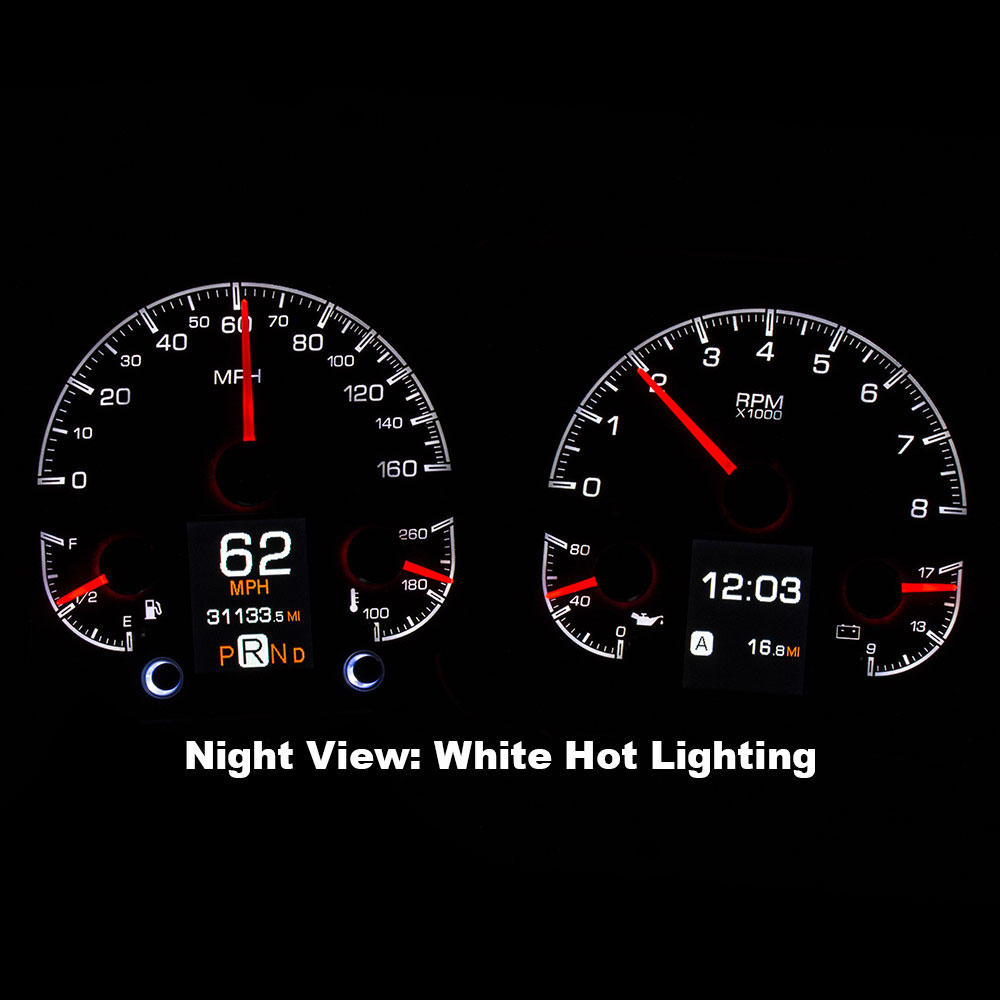

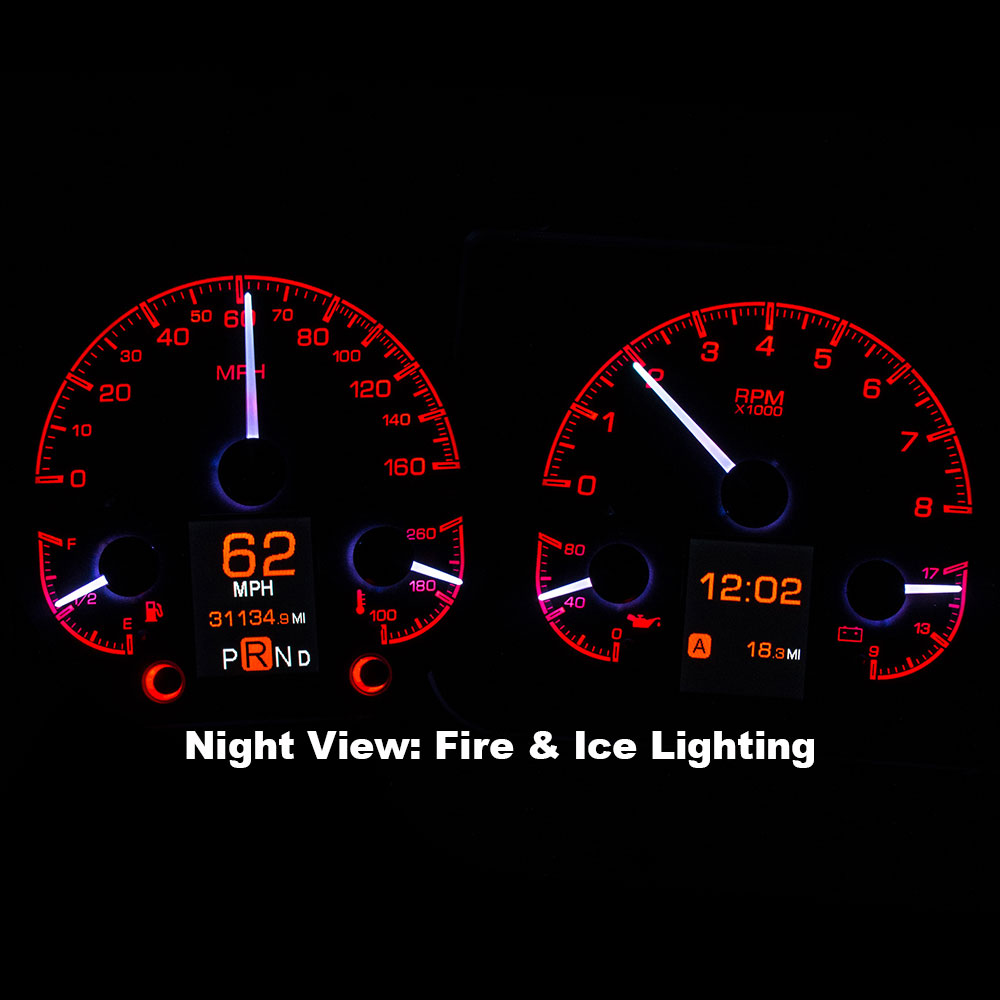

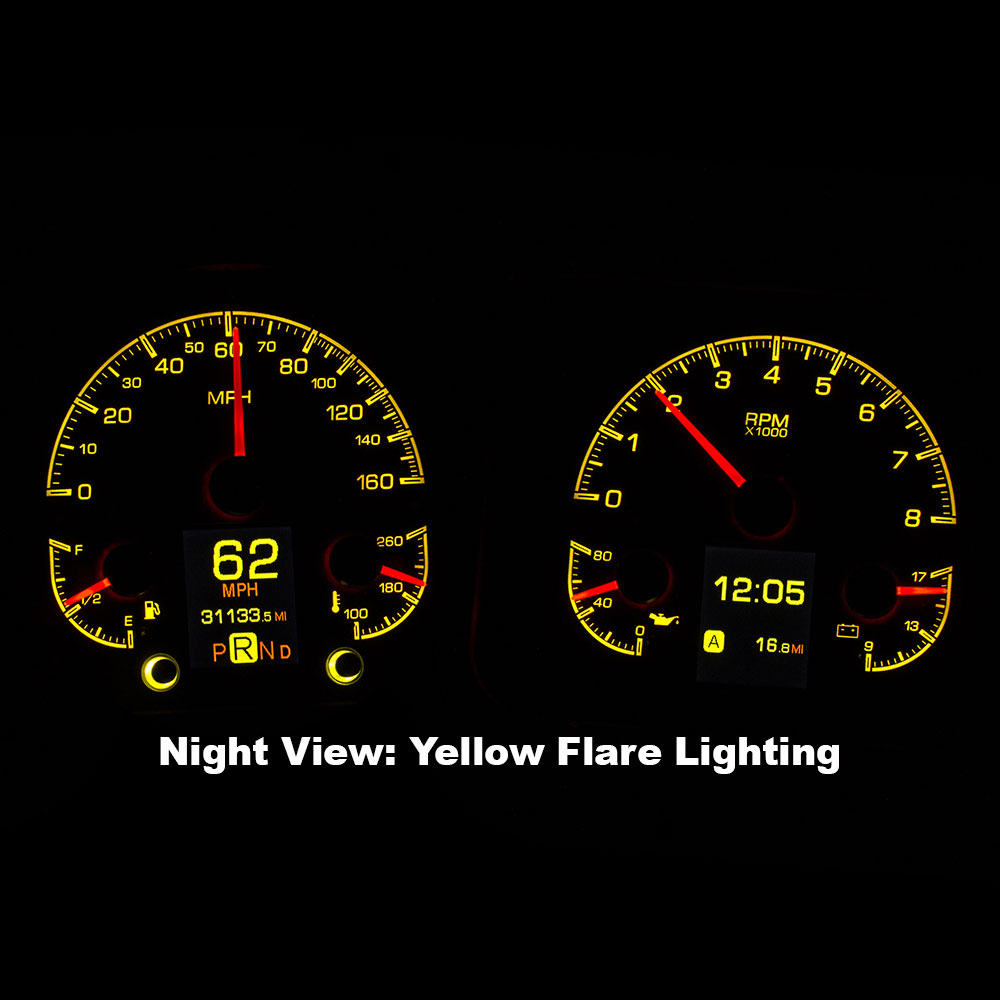

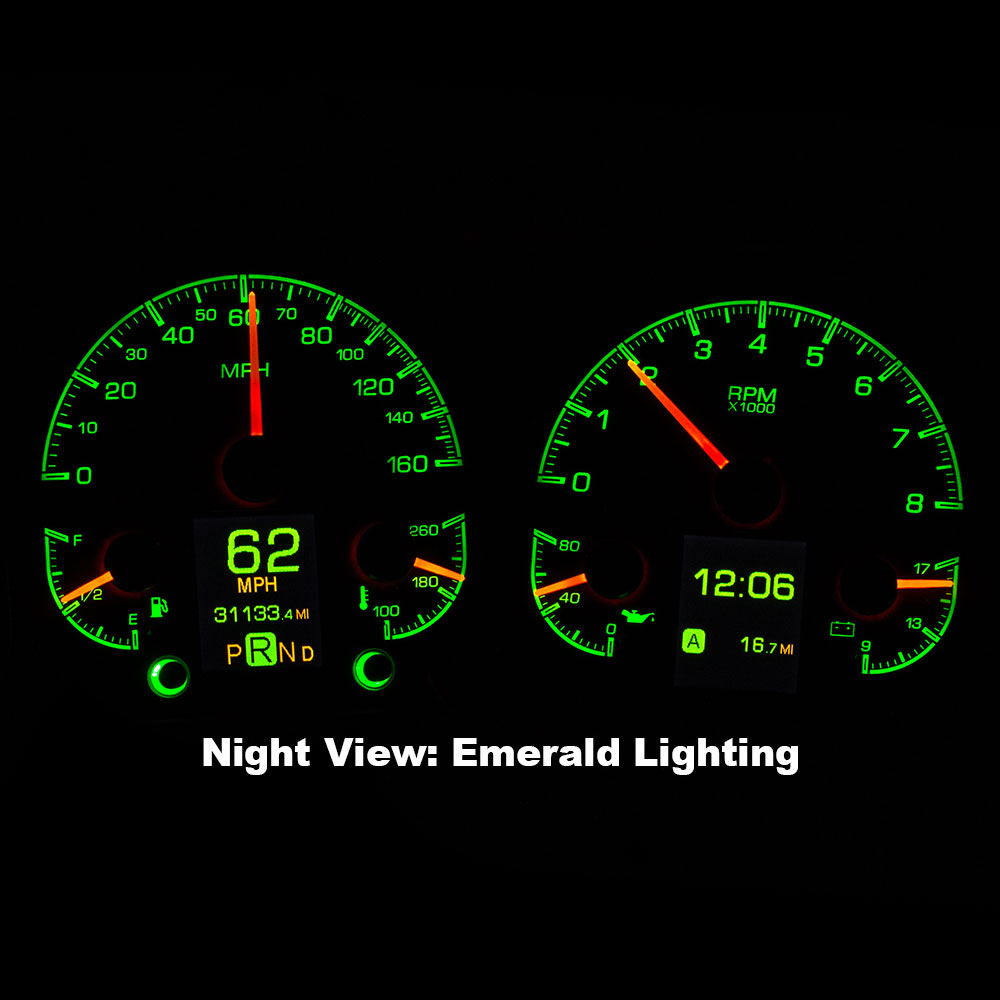

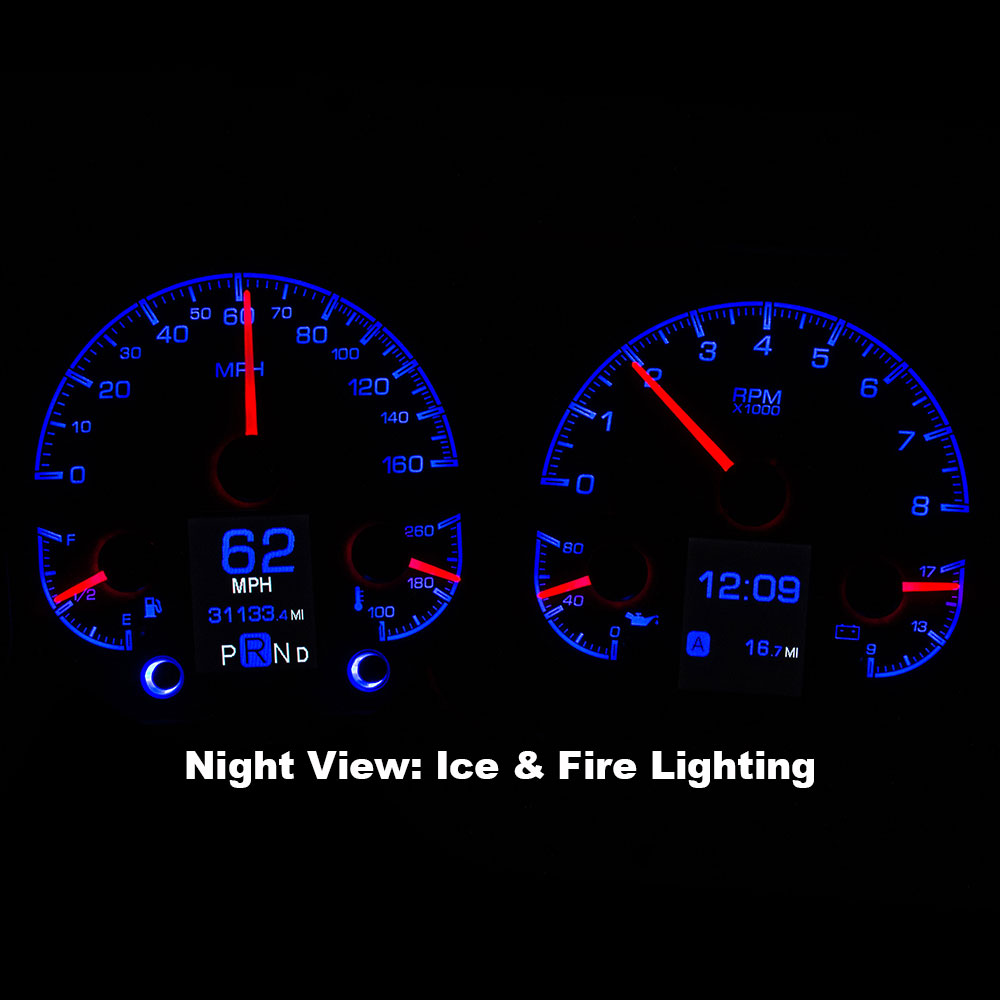

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows you to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are controlled with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.

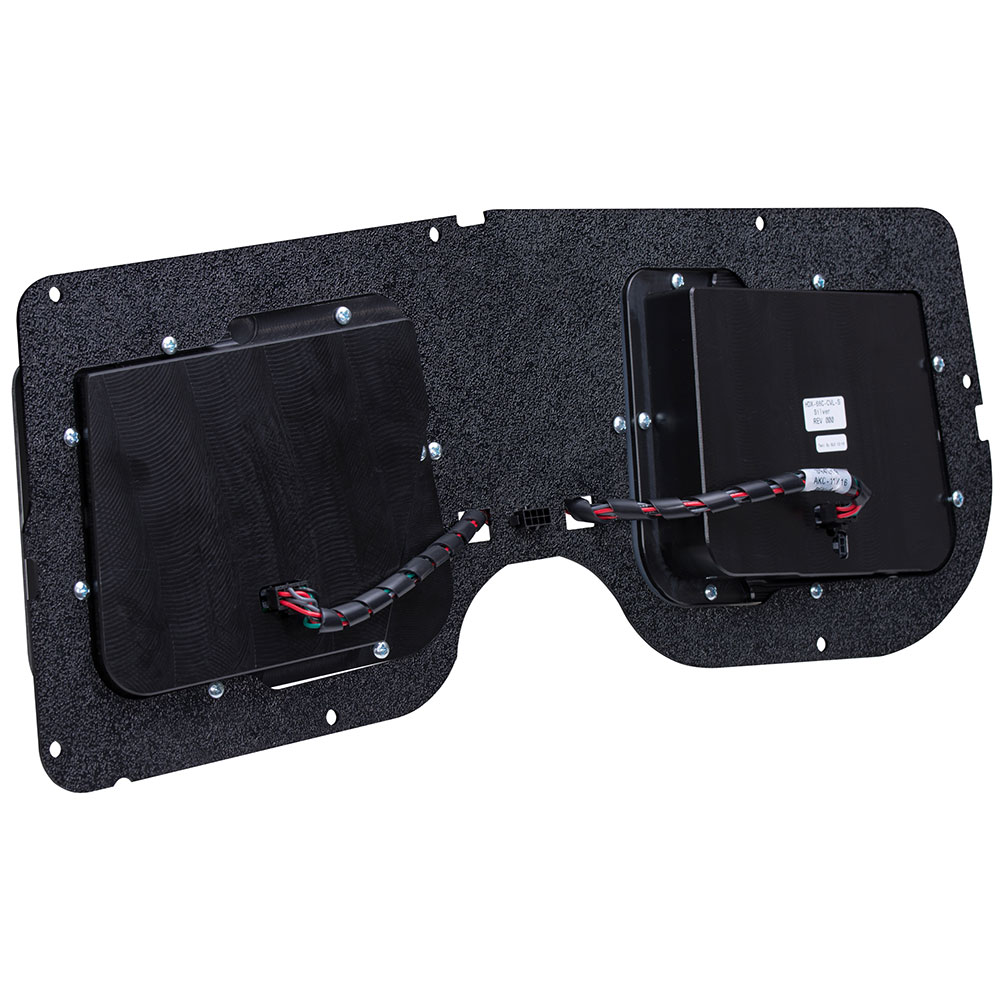

Vehicle integration through a central control box has become a standard for Dakota Digital, and the advantages are substantial. This greatly simplifies installation; two power (constant and switched) and one ground connection get things up and running, while vehicle-harness sourced signals and sensor inputs run cleanly to their respective terminal. Supplied, solid state sending units with weather-tight harnesses ensure years of trouble-free operation. This control box allows for easier service, a clean-looking finished product, and an abundance of technology packed into a vintage dashboard. Click the tabs below for a more in-depth look at the HDX series!

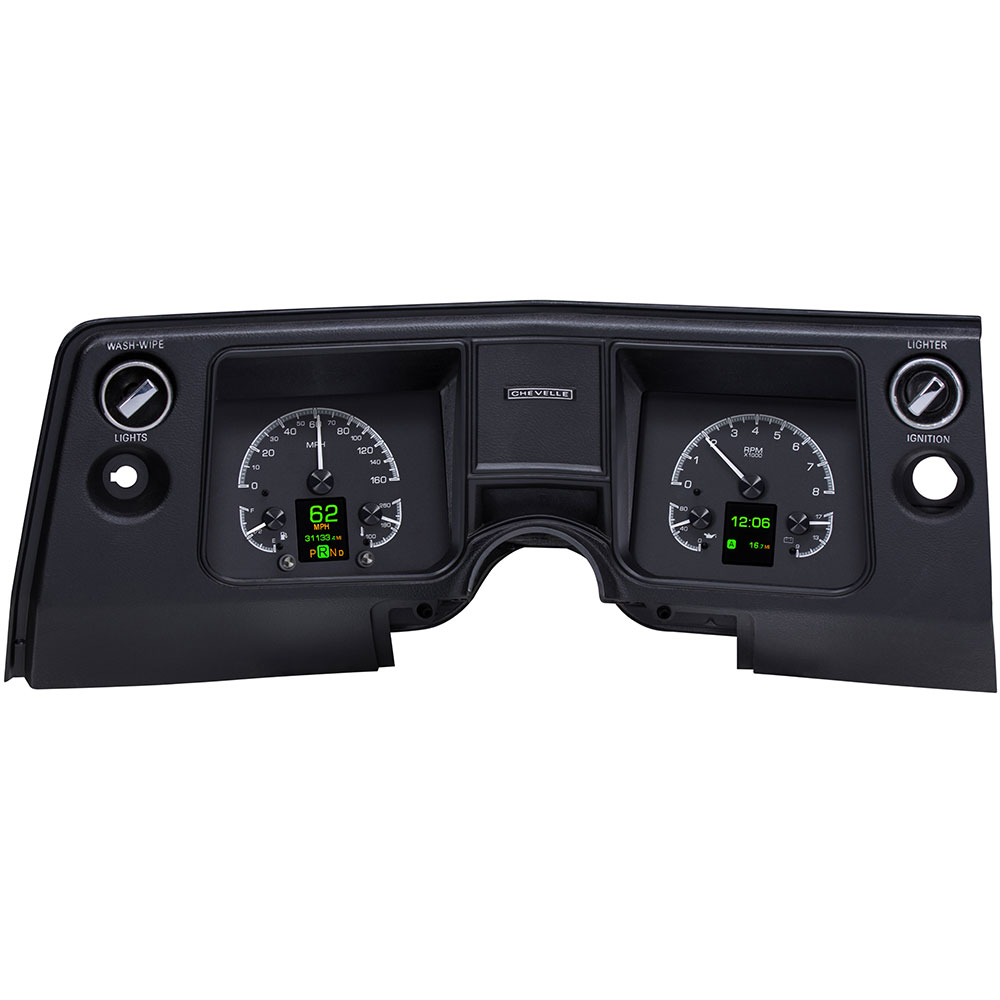

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
