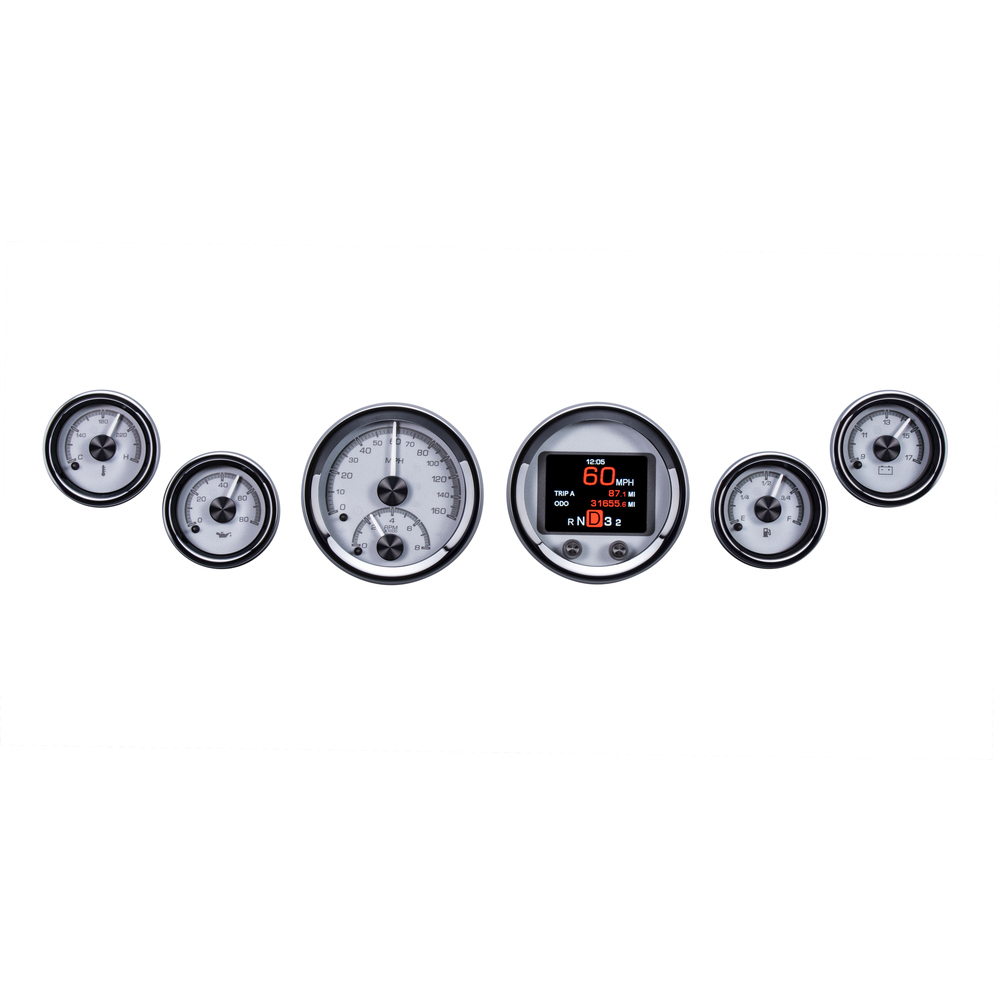

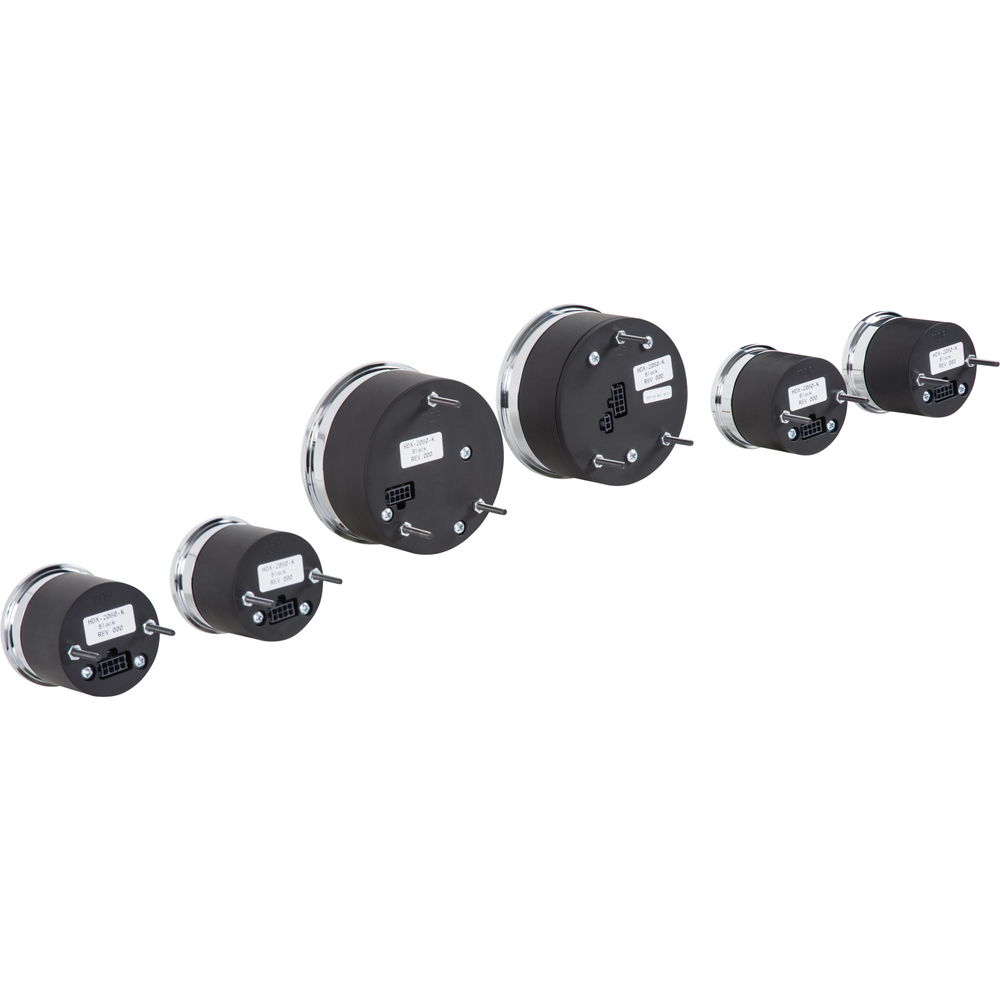

HDX technology in a timeless arrangement! Whether you have an existing panel that needs to be updated, or you’re scratch building your dream, this Dakota Digital six-gauge set offers the a wealth of information and flexibility! The speedometer and tach each drop into 3 3/8” holes, while their matching satellites spec out at 2 1/16”; the HDX-2060 requires 2” of depth behind your panel. Machined mounting cups secure the gauges to your panel, attached with supplied thumb nuts. Two full-color TFT message centers allow for as much information as you like!

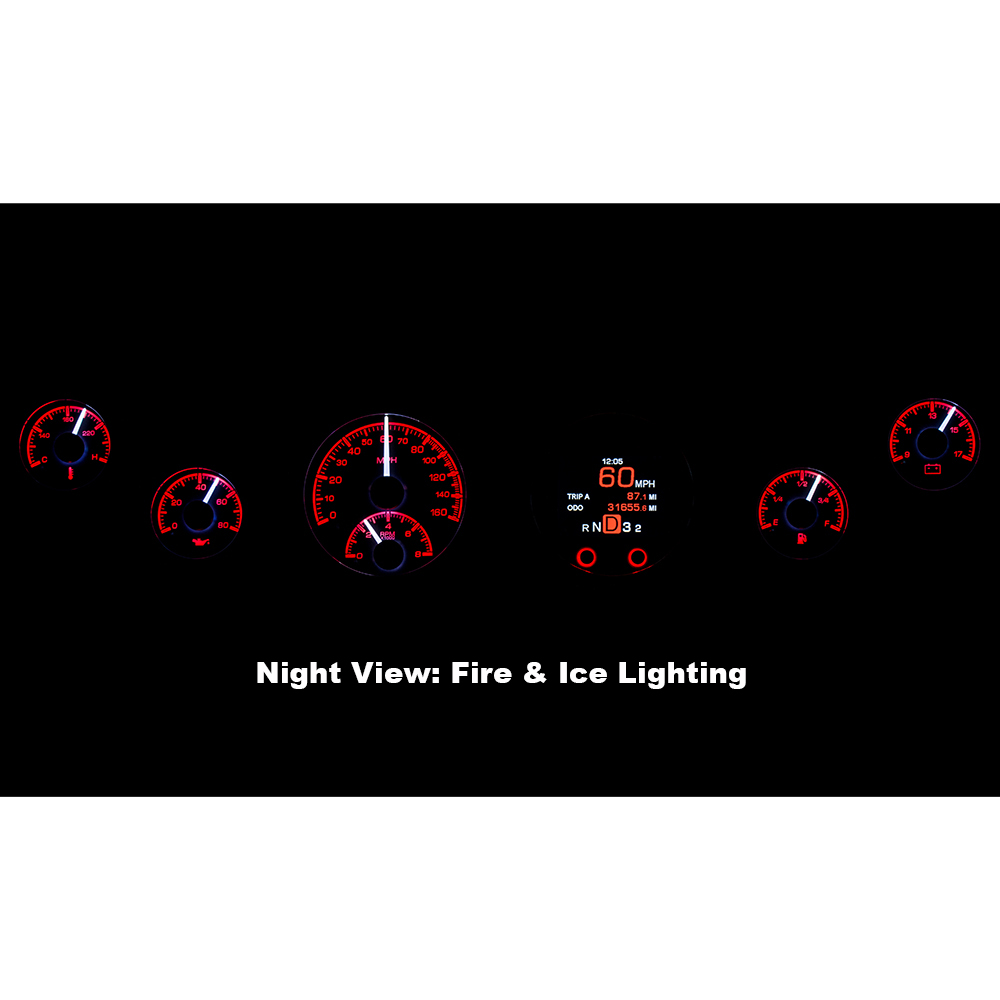

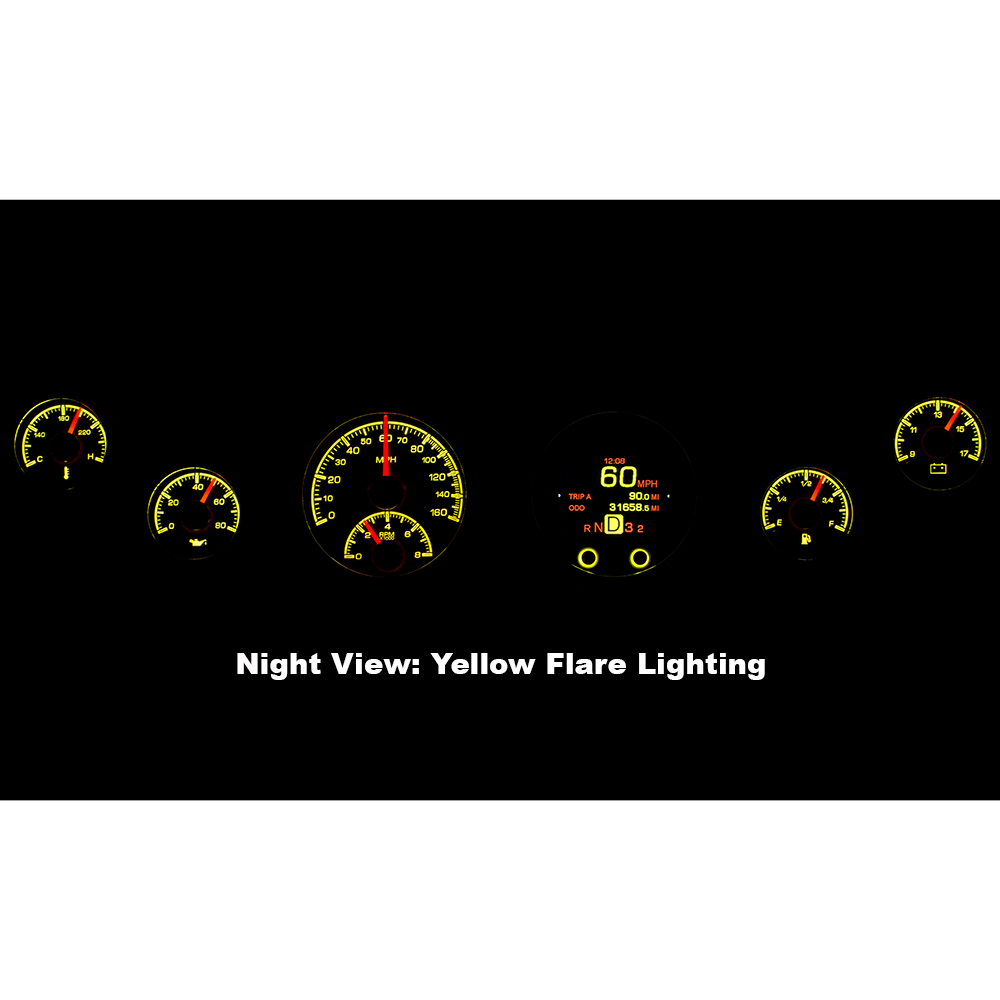

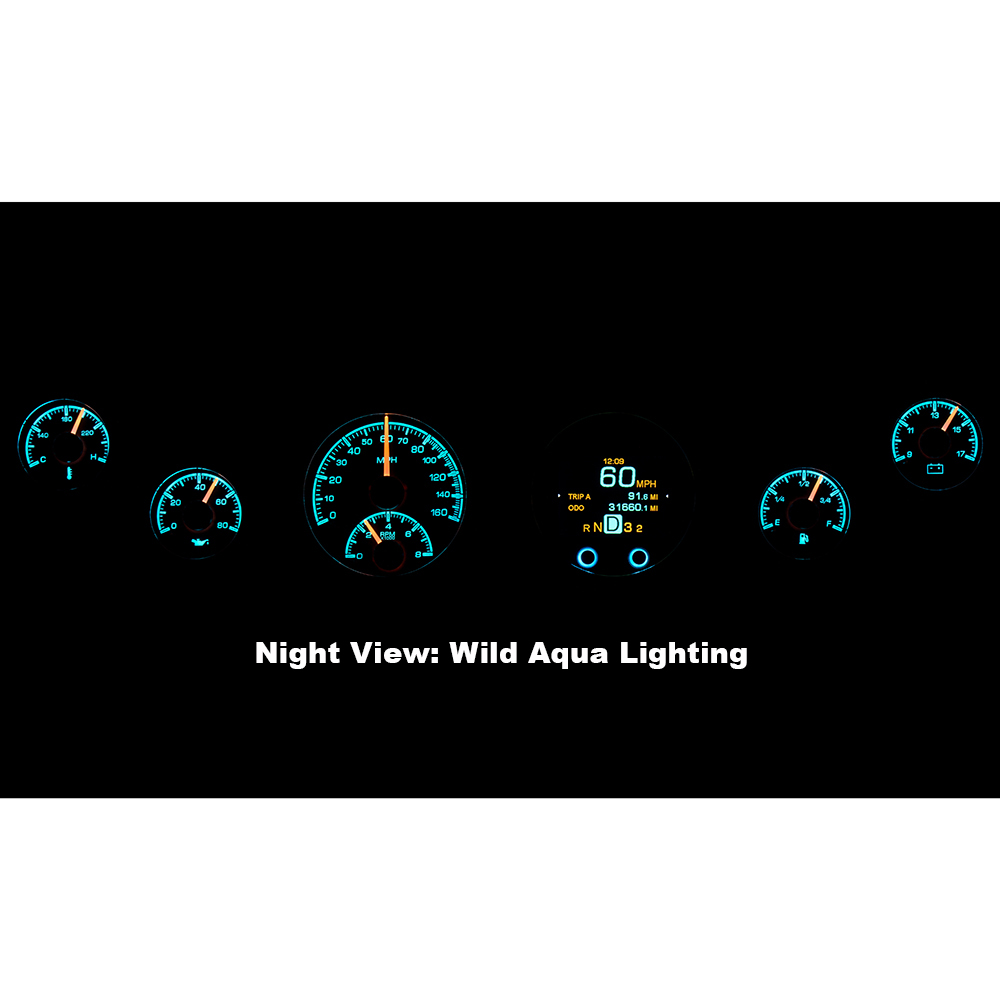

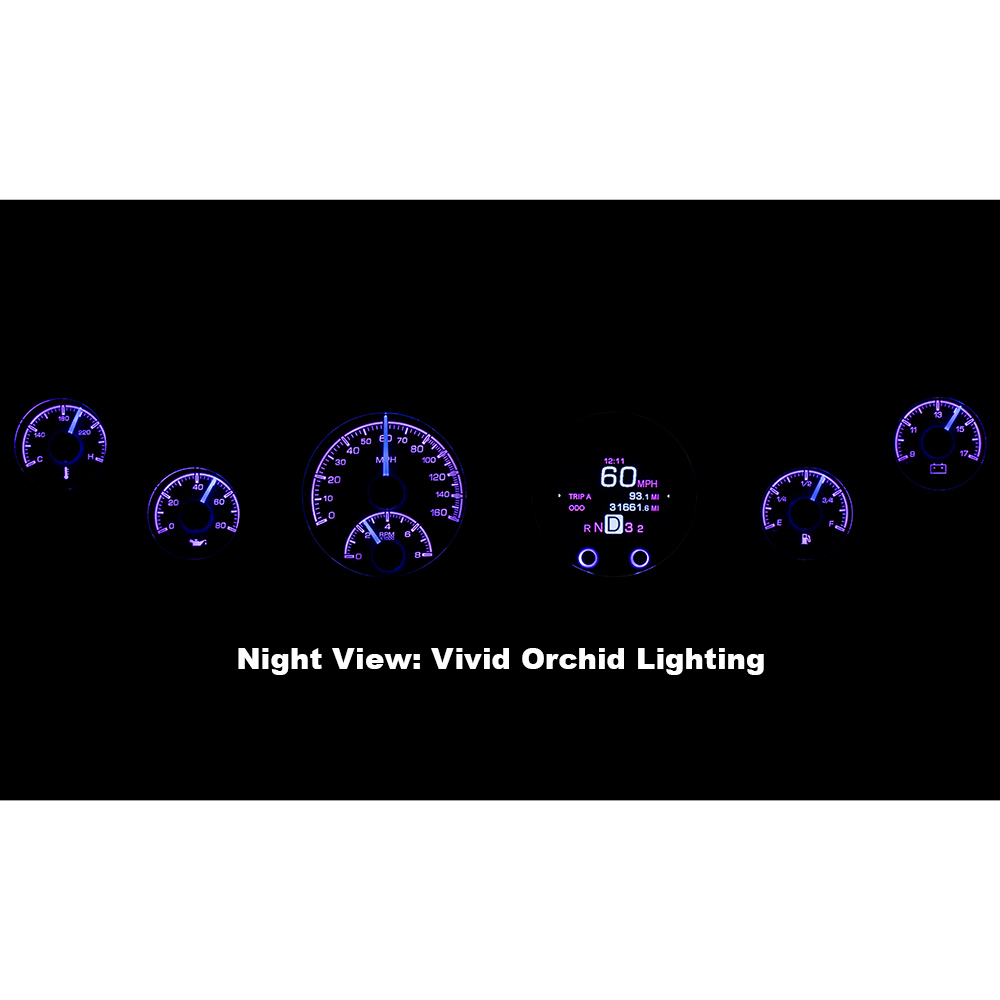

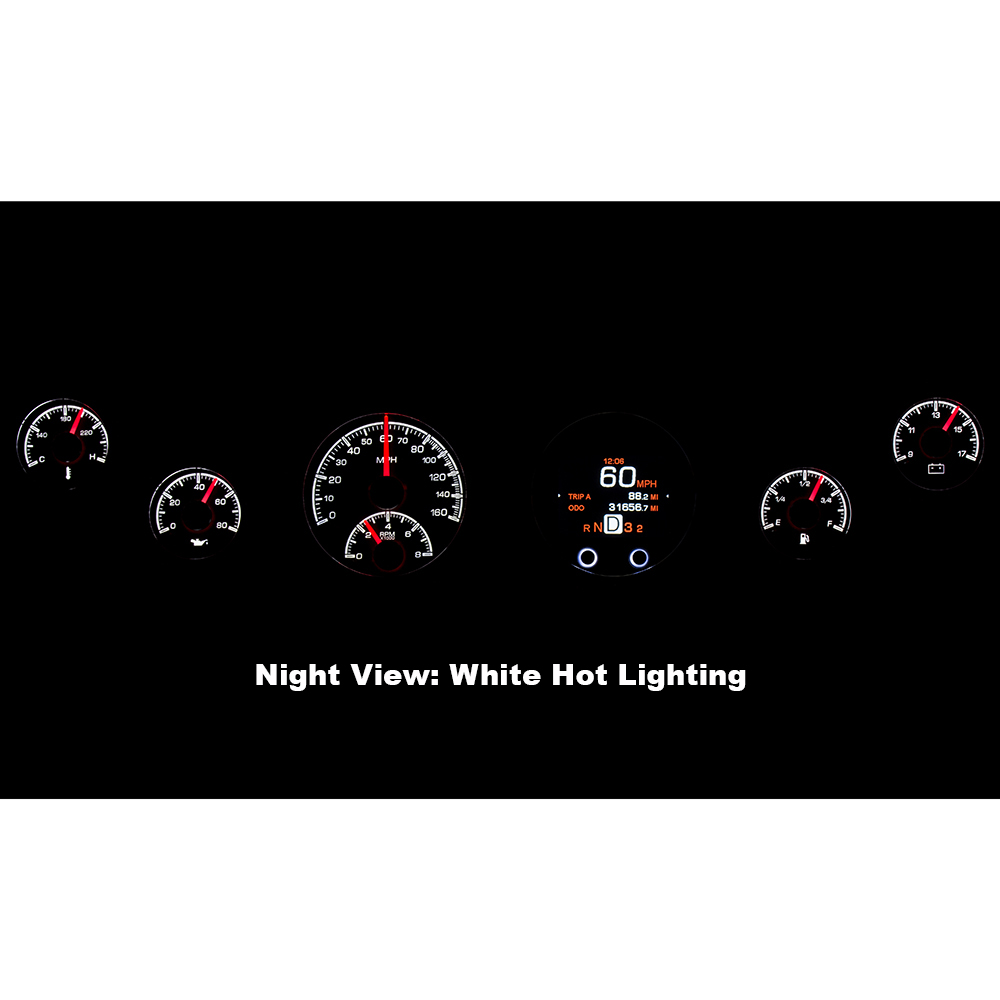

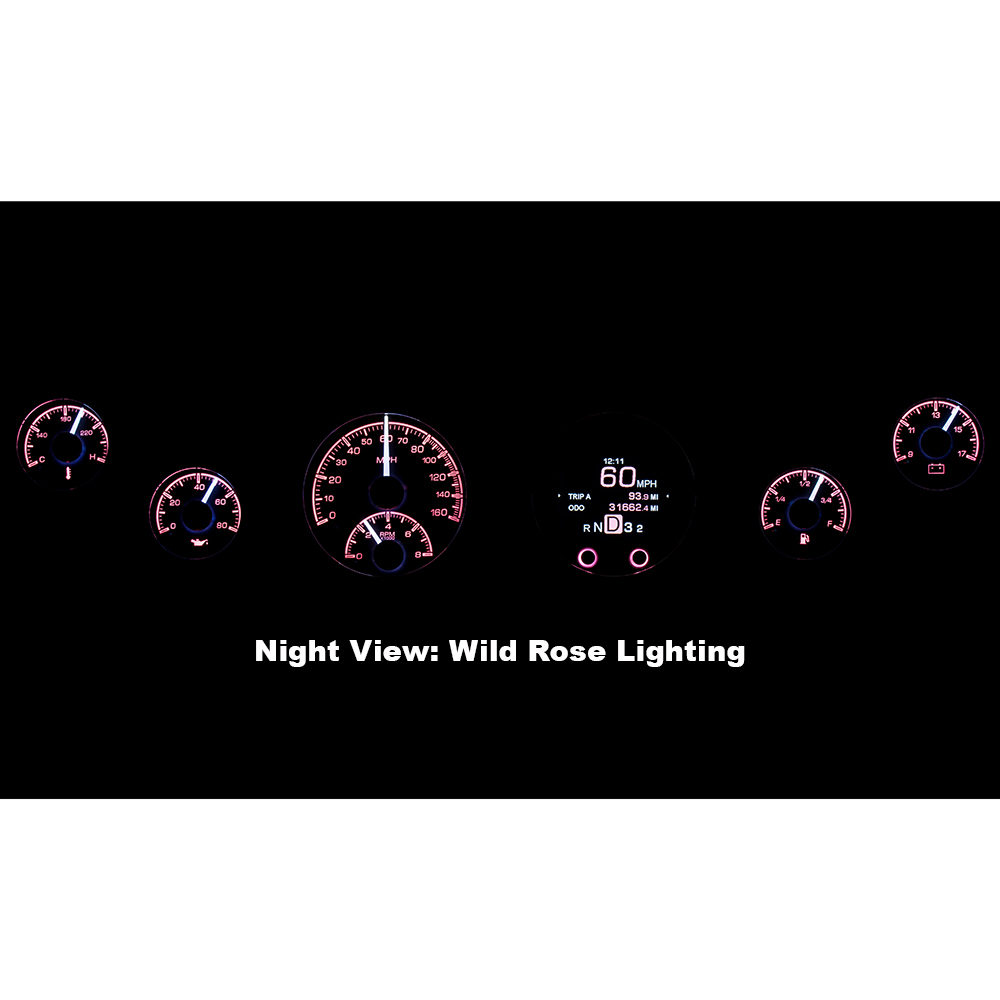

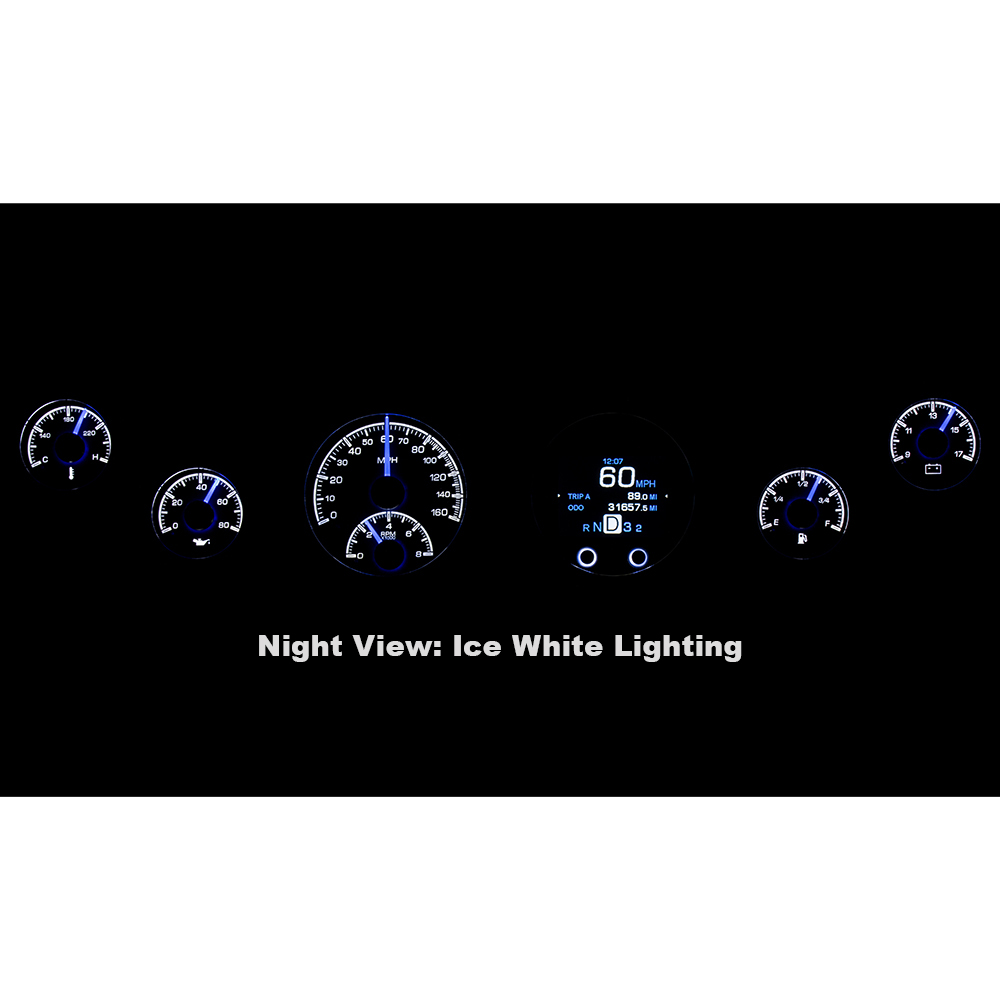

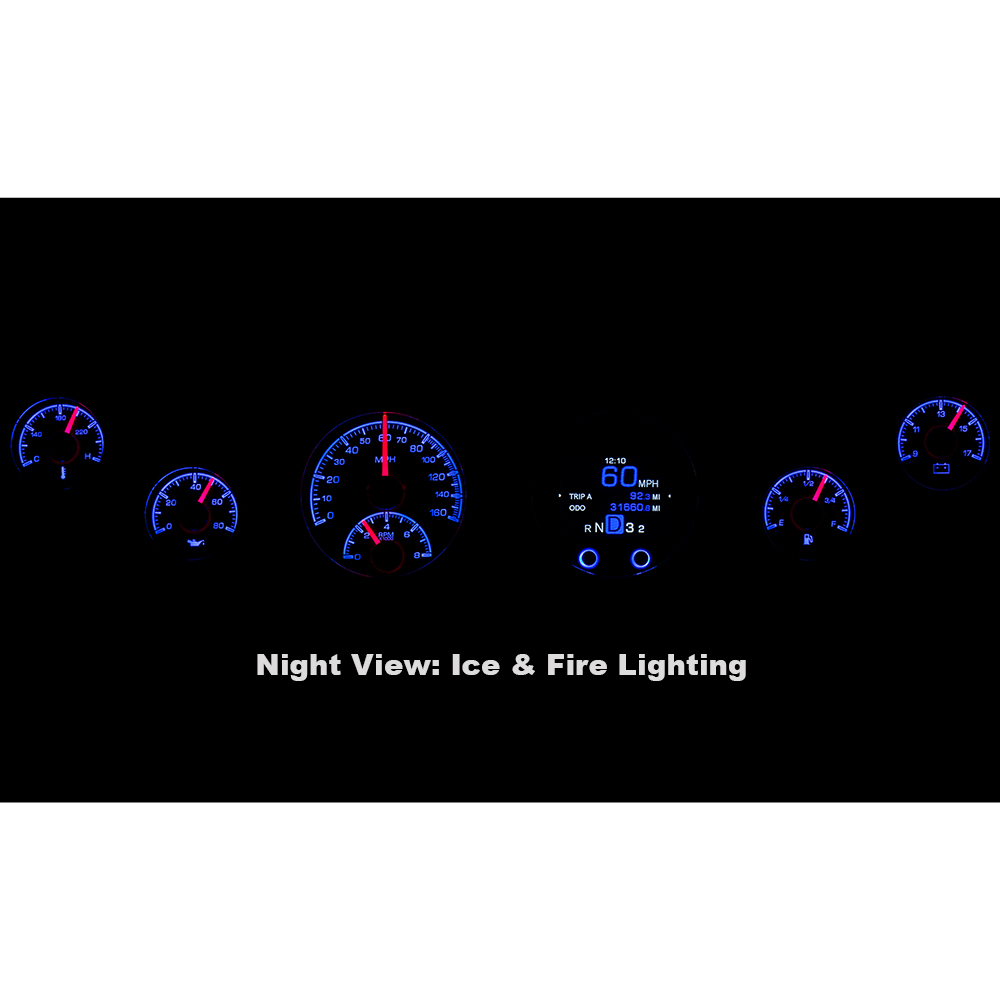

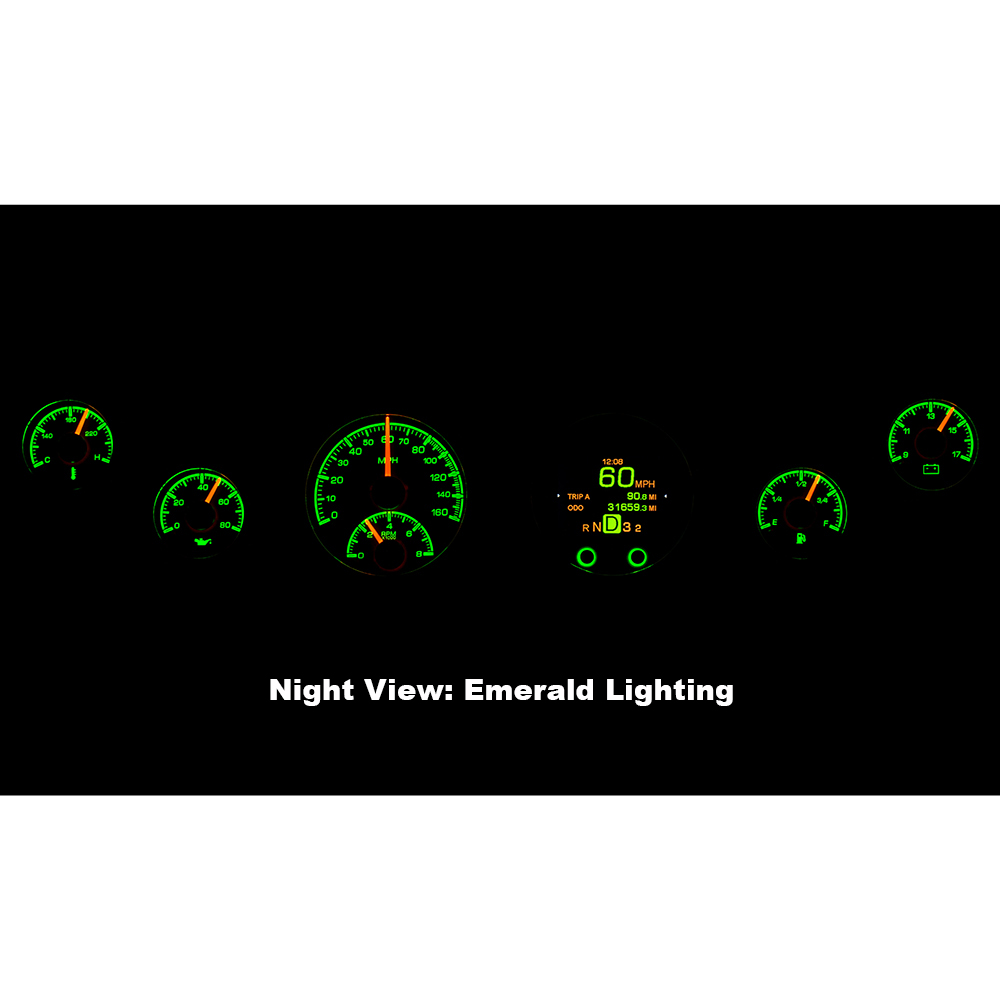

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.
Vehicle integration through a central control box has become a standard for Dakota Digital, and the advantages are substantial. This greatly simplifies installation; two power (constant and switched) and one ground connection get things up and running, while vehicle-harness sourced signals and sensor inputs run cleanly to their respective terminal. Supplied, solid state sending units with weather-tight harnesses ensure years of trouble-free operation. This control box allows for easier service, a clean-looking finished product, and an abundance of technology packed into a vintage dashboard.
