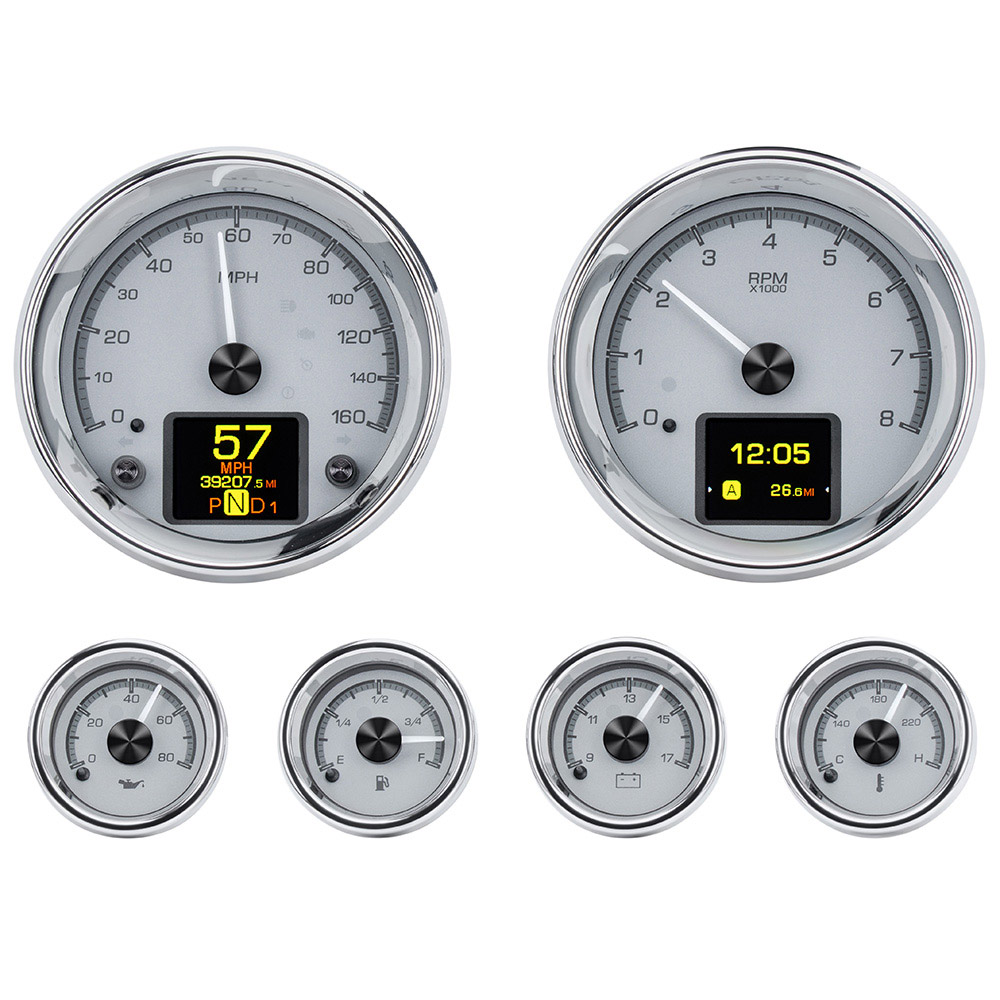

This Dakota Digital HDX gauge kit features billet aluminum housings have been chrome plated after being sized to fit common aftermarket openings measuring 4 5/8” and 2 1/16” in diameter. Upgrading your existing dash panel has never been easier. 30+ backlighting colors, TFT displays and the fool-proof control box you’ve come to expect from Dakota Digital. Instruments drop in from front of dash; front bezel O.D. measures 5” for speed and tach and 2 3/16” for the satellites; all require approximately 2 ¼” depth.

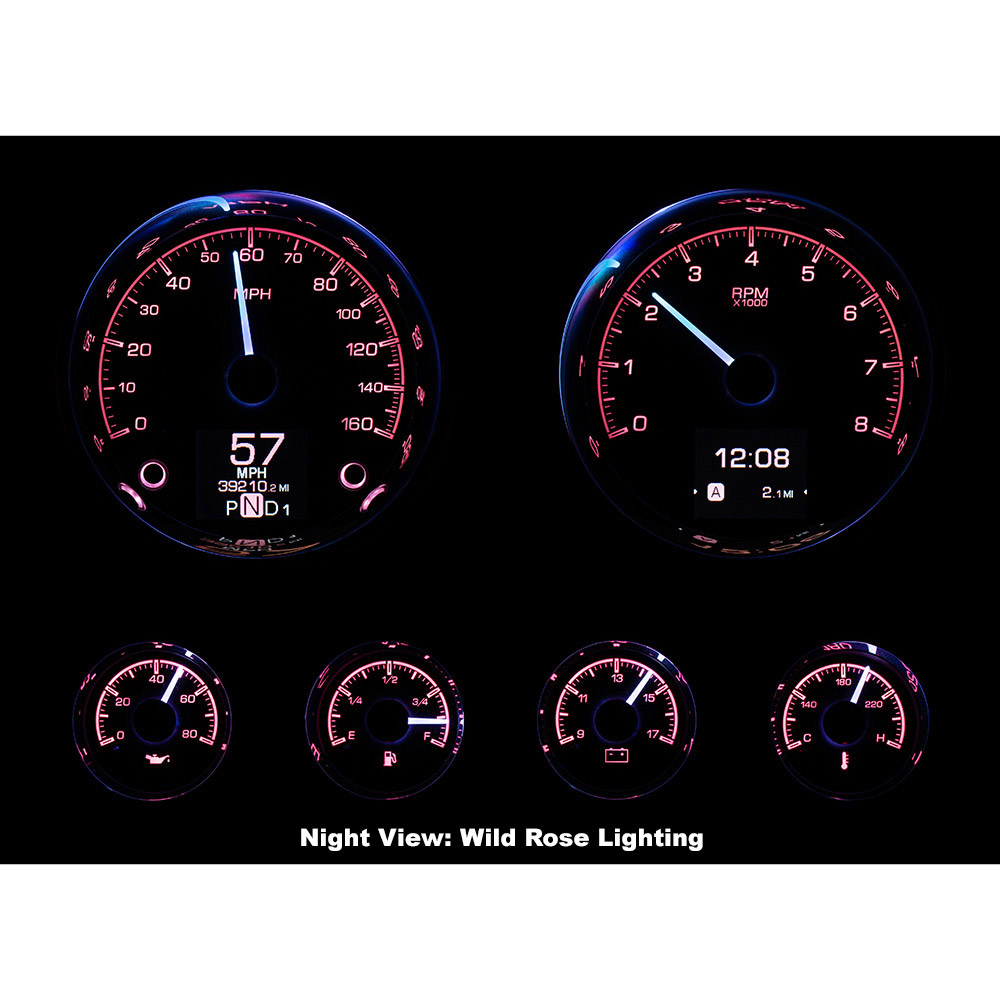

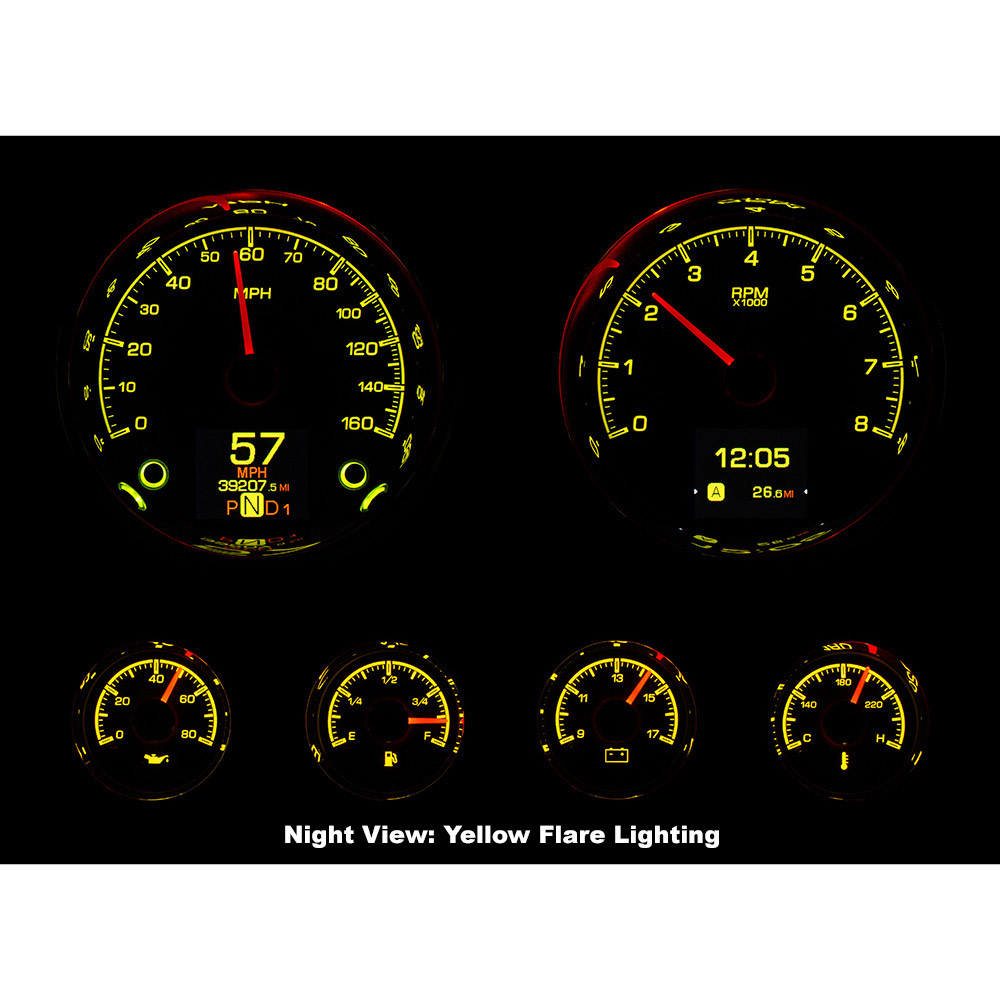

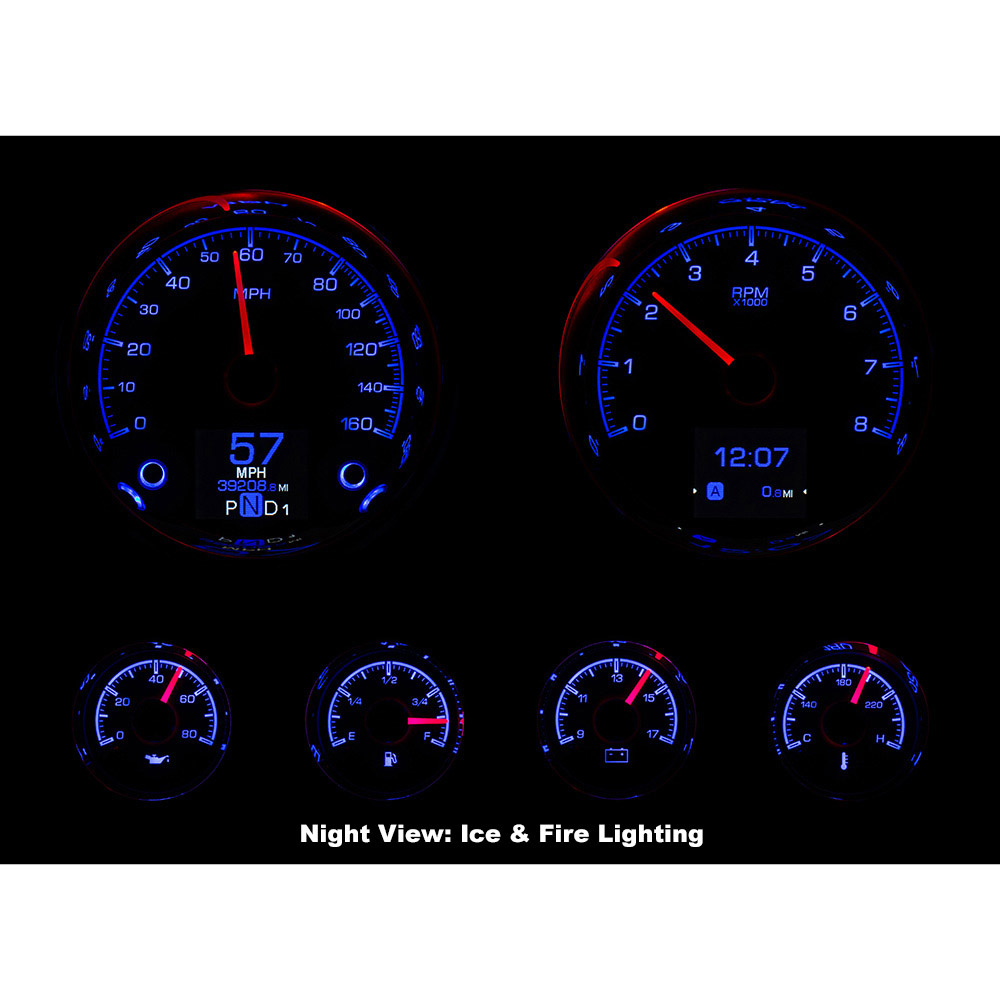

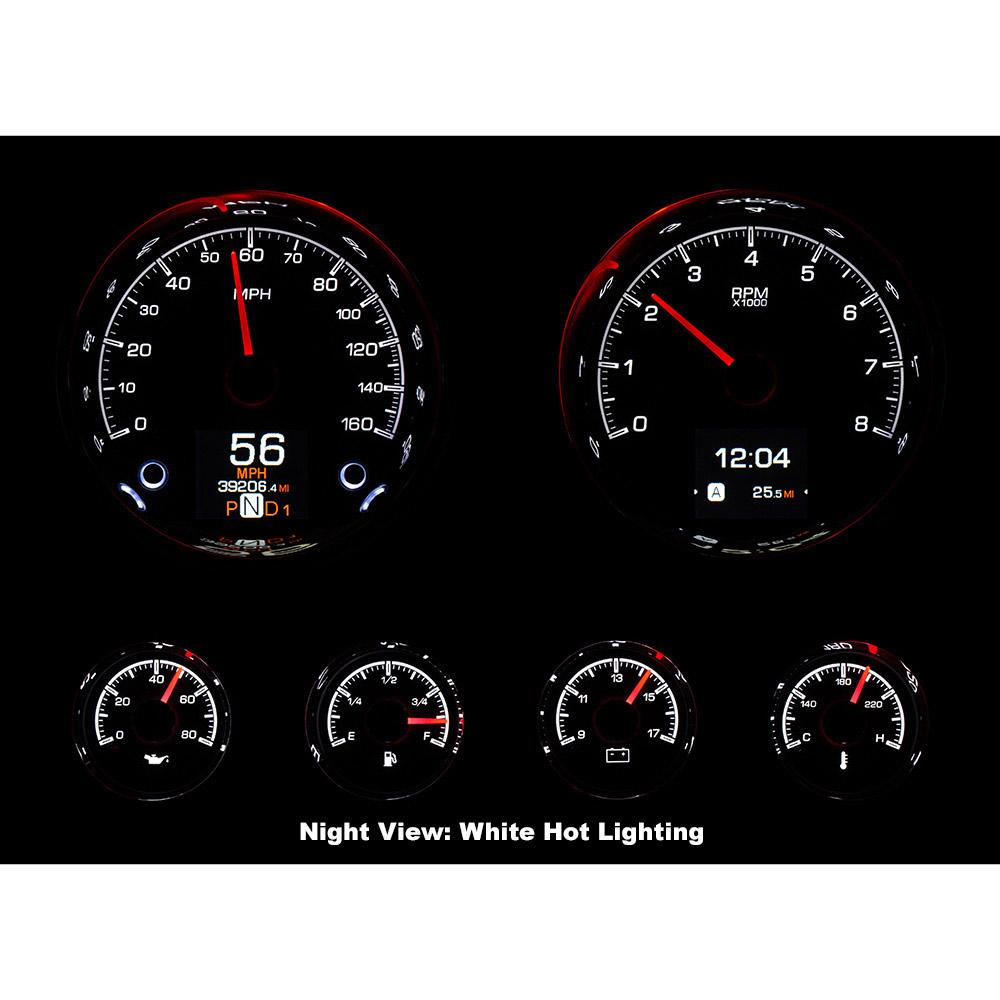

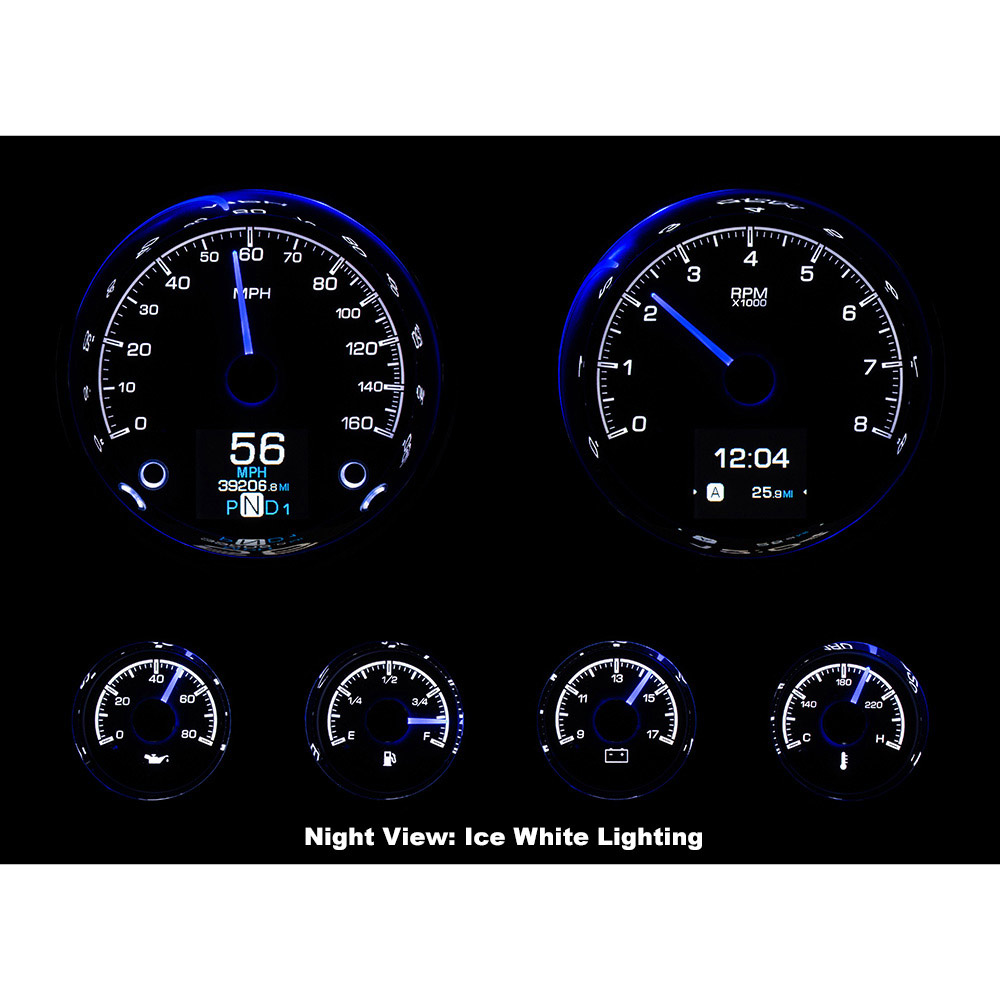

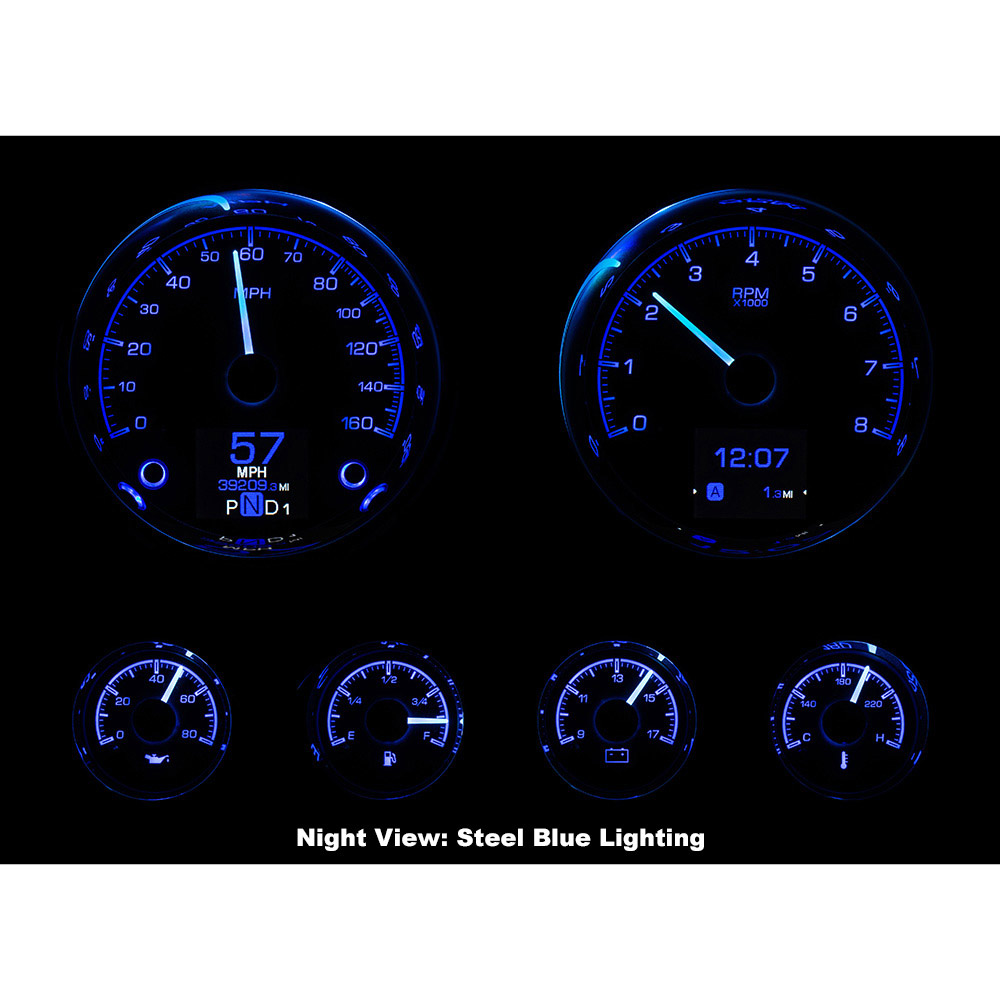

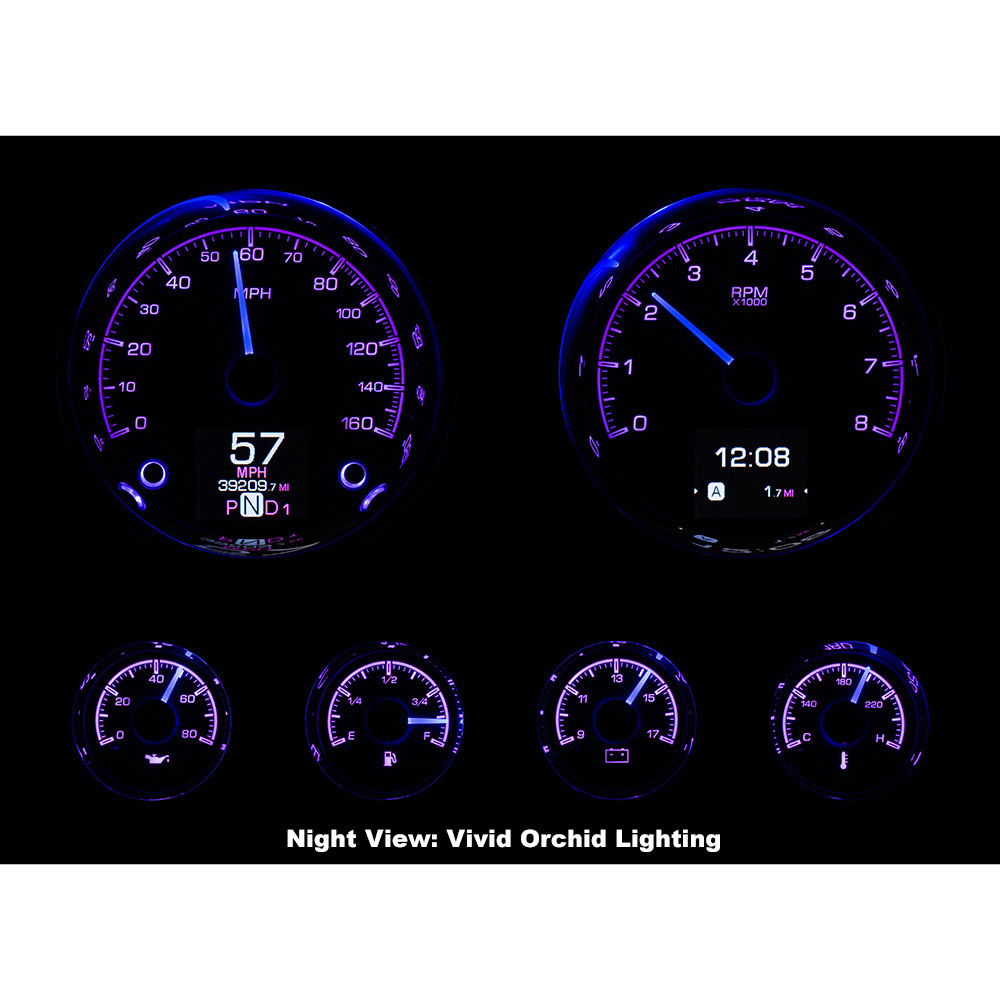

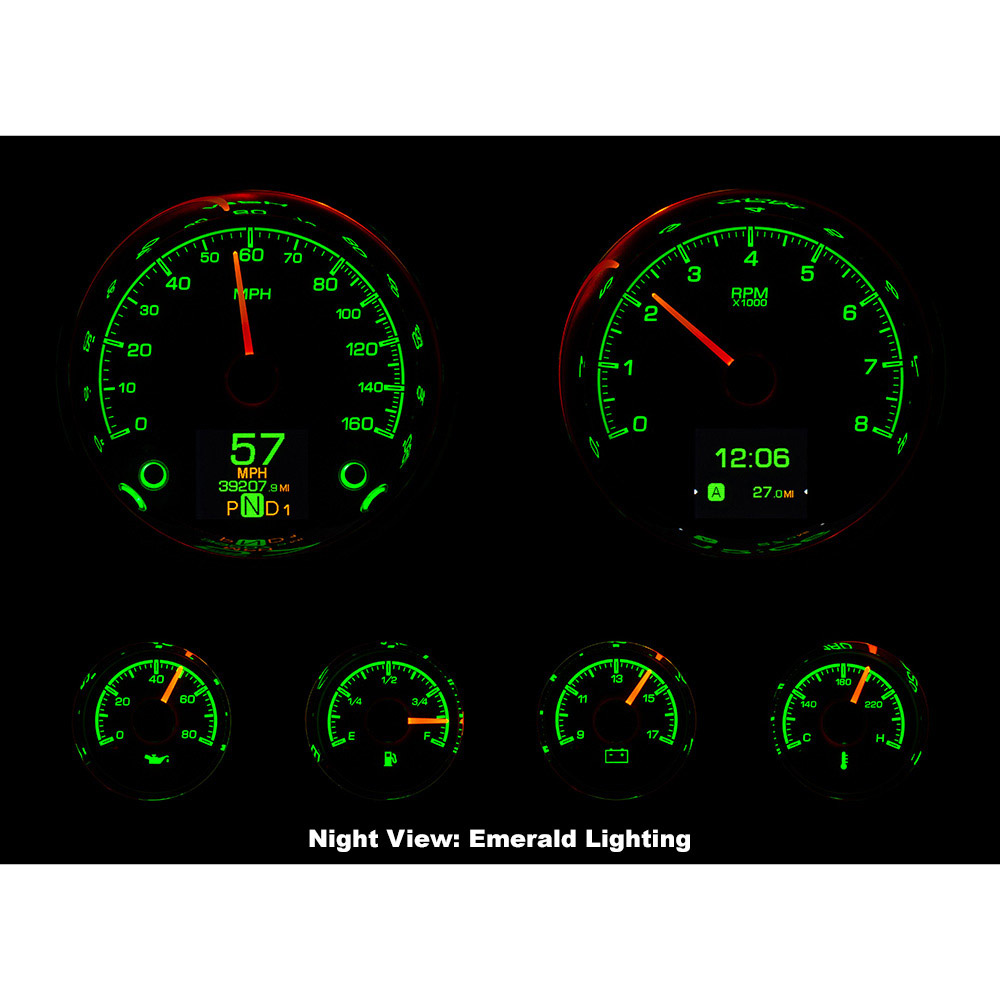

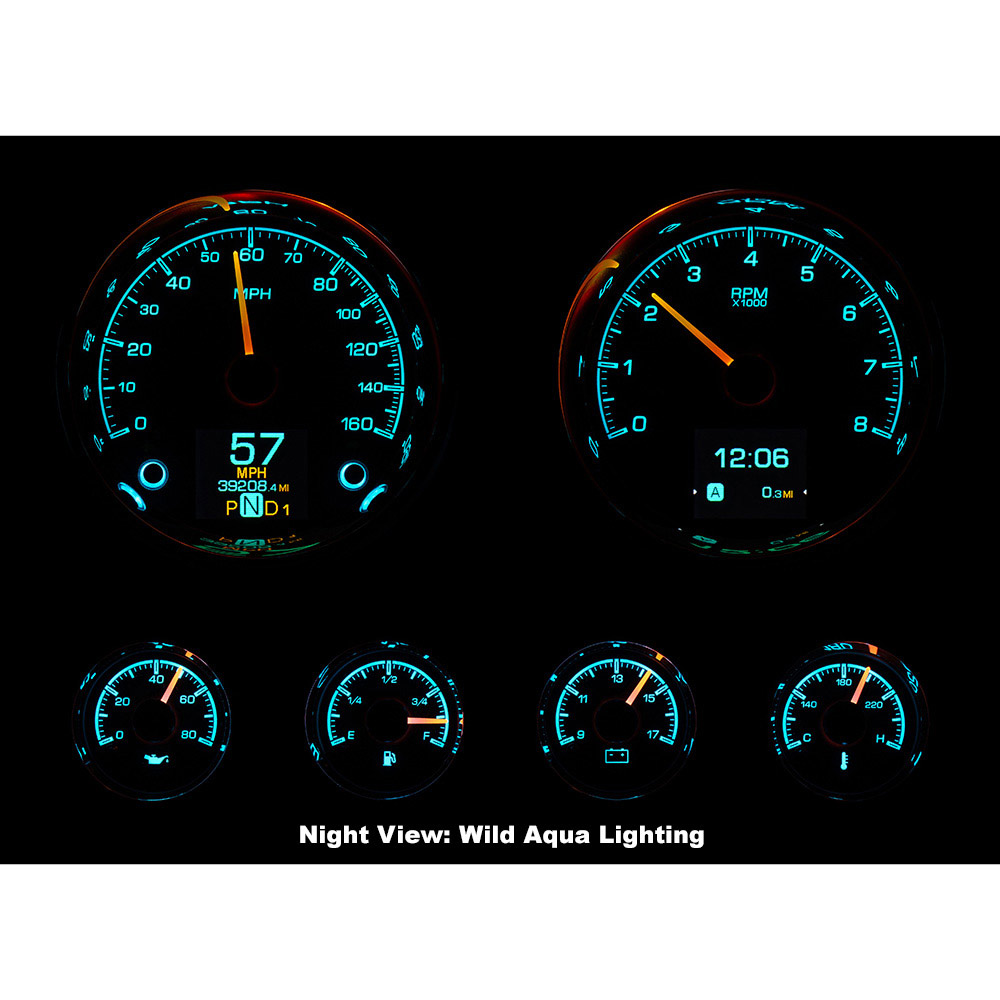

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows you to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Vehicle integration through a central control box has become a standard for Dakota Digital, and the advantages are substantial. This greatly simplifies installation; two power (constant and switched) and one ground connection get things up and running, while vehicle-harness sourced signals and sensor inputs run cleanly to their respective terminal. Supplied, solid state sending units with weather-tight harnesses ensure years of trouble-free operation. This control box allows for easier service, a clean-looking finished product, and an abundance of technology packed into a vintage dashboard.
