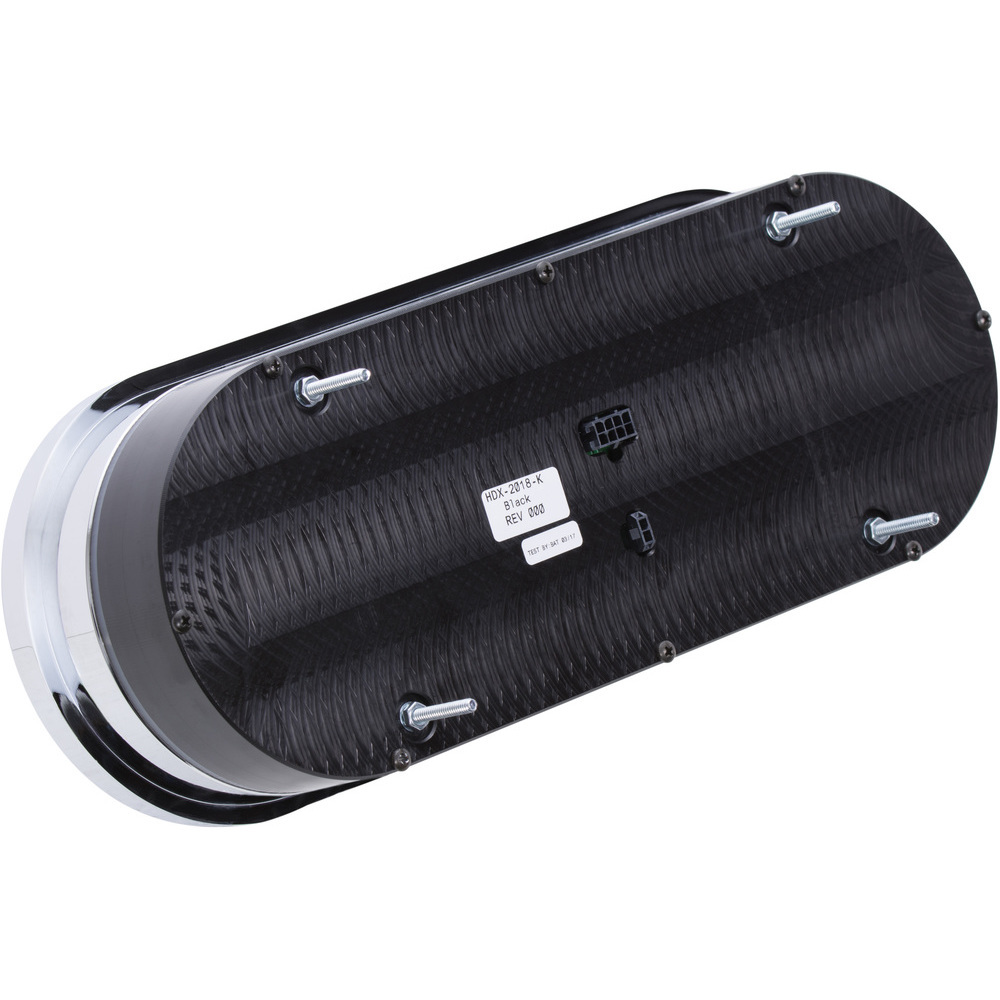

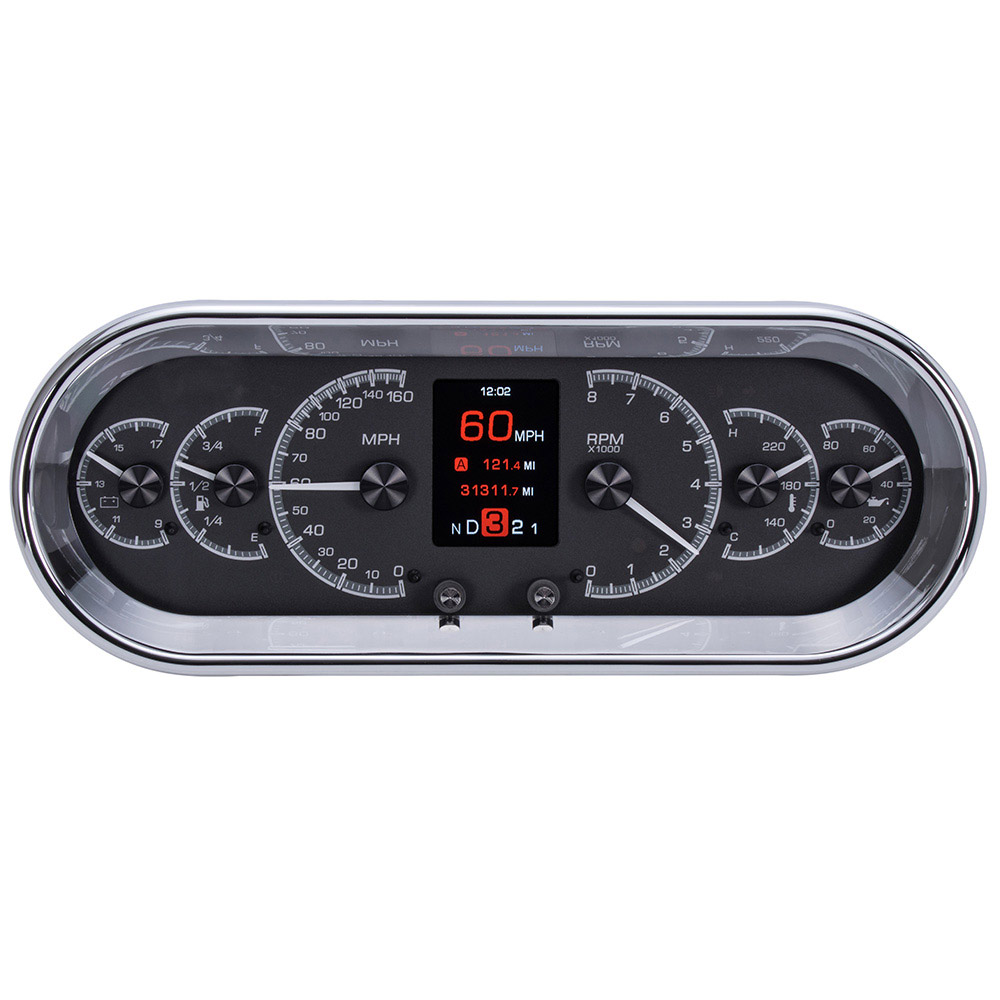

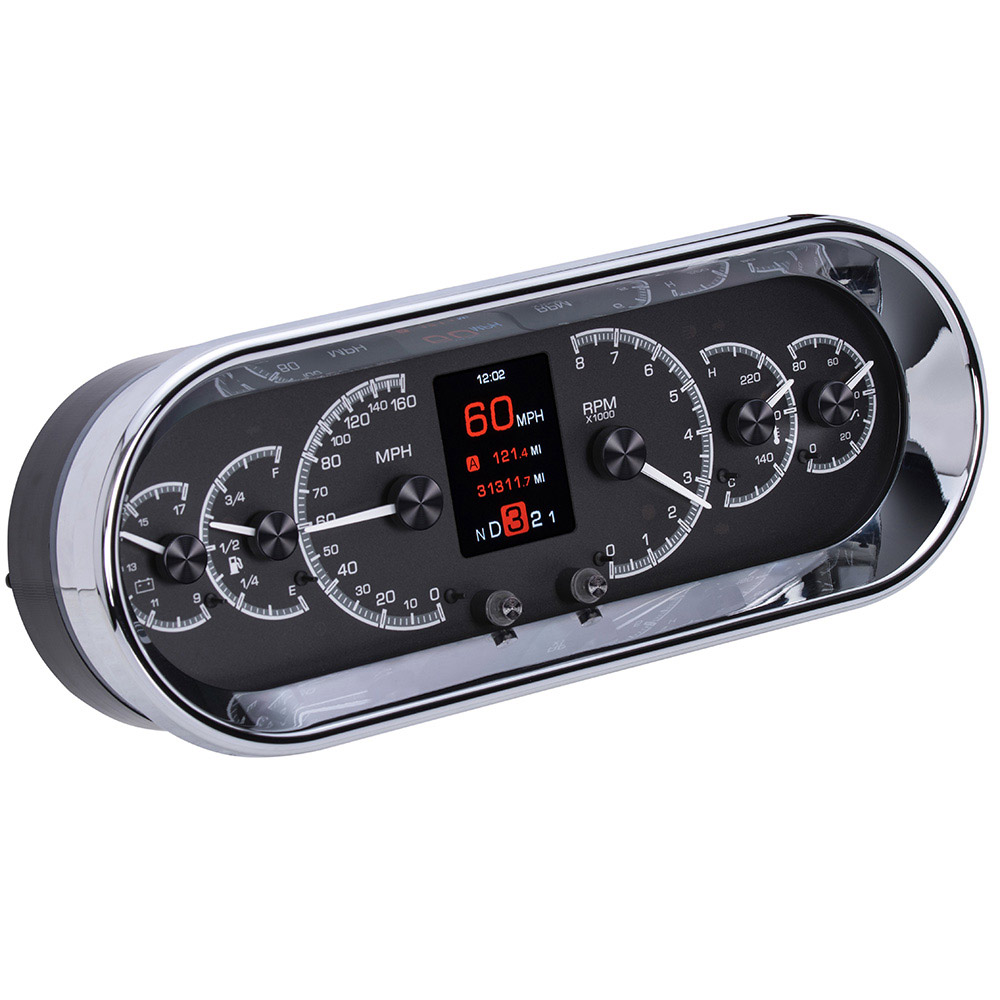

This universal gauge kit from Dakota Digital measures 11.4” wide and 4.4” tall (11" x 4" cutout), this all-in-one instrument system is a tremendous choice for your custom interior project. Total depth behind the dash is just two inches. Integrated capacitive touch switches and supplied sending units, plus BIM-series compatibility makes this package your instrumentation solution. Housing and integrated front bezel are chrome plated billet aluminum.

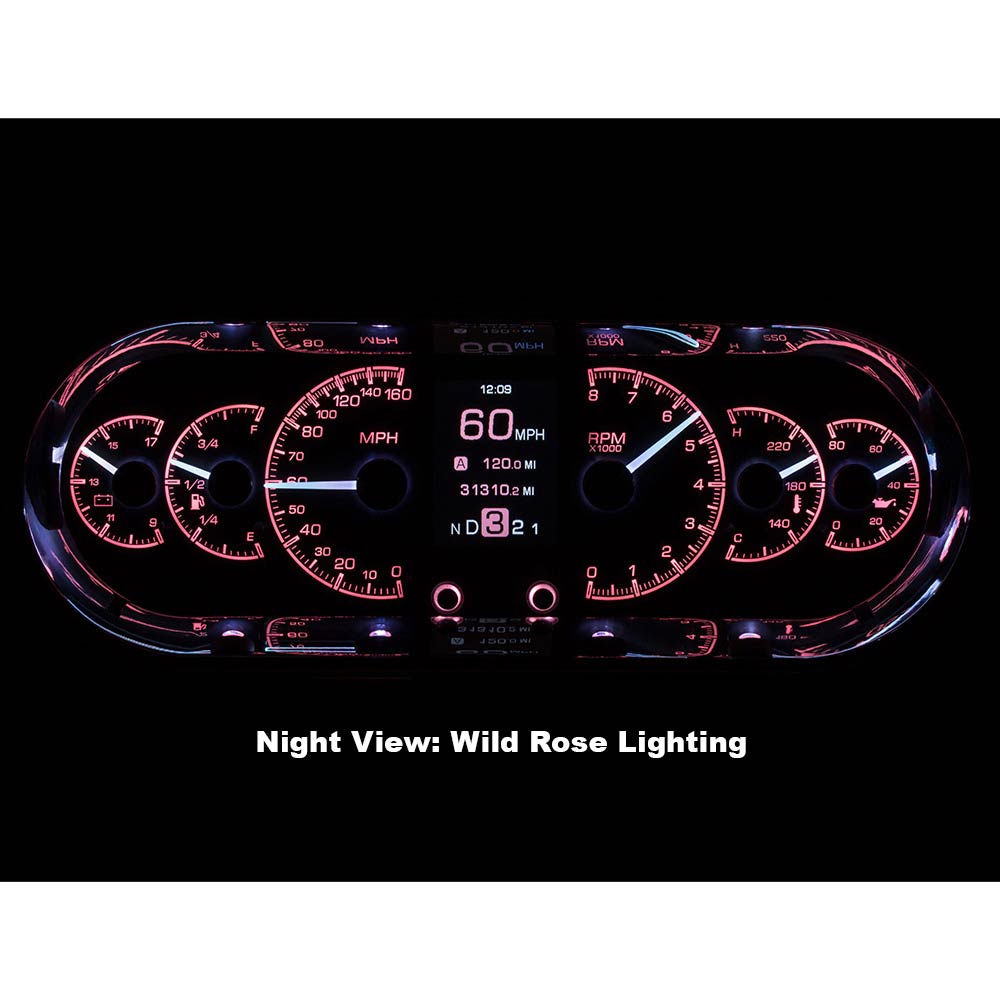

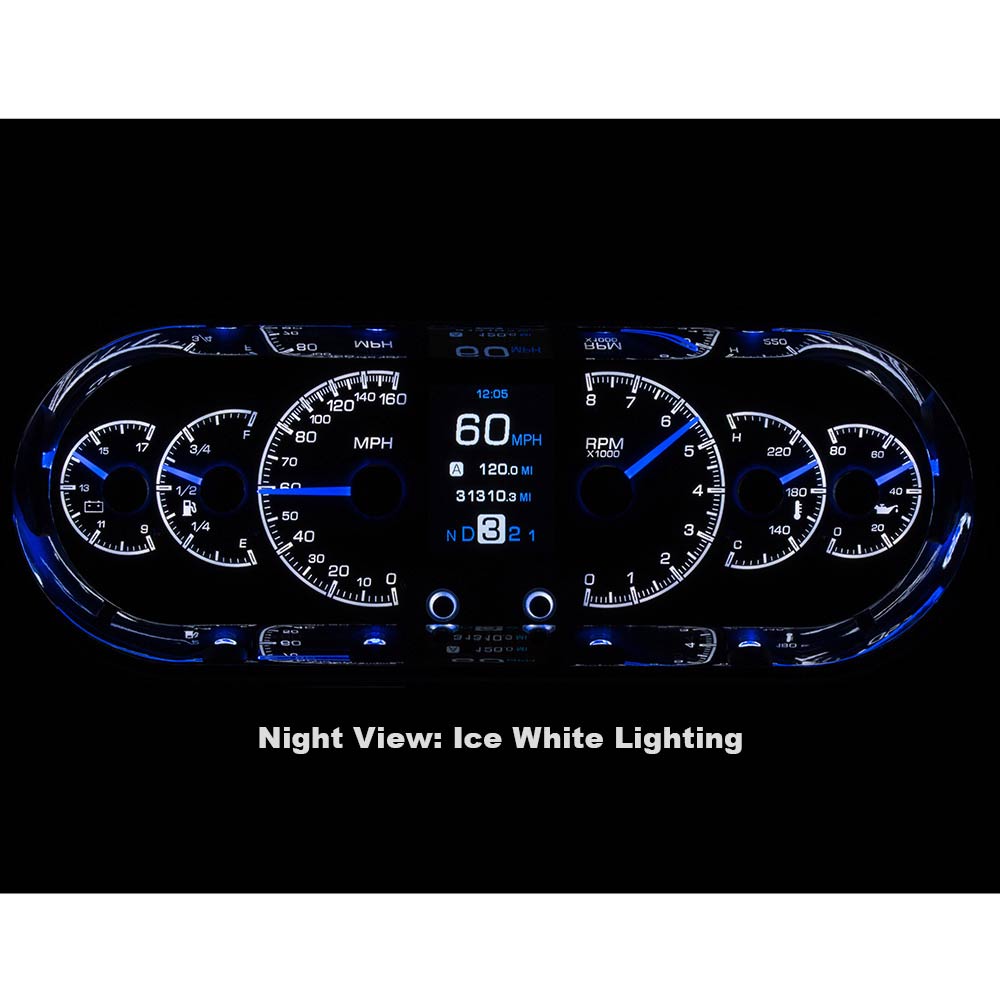

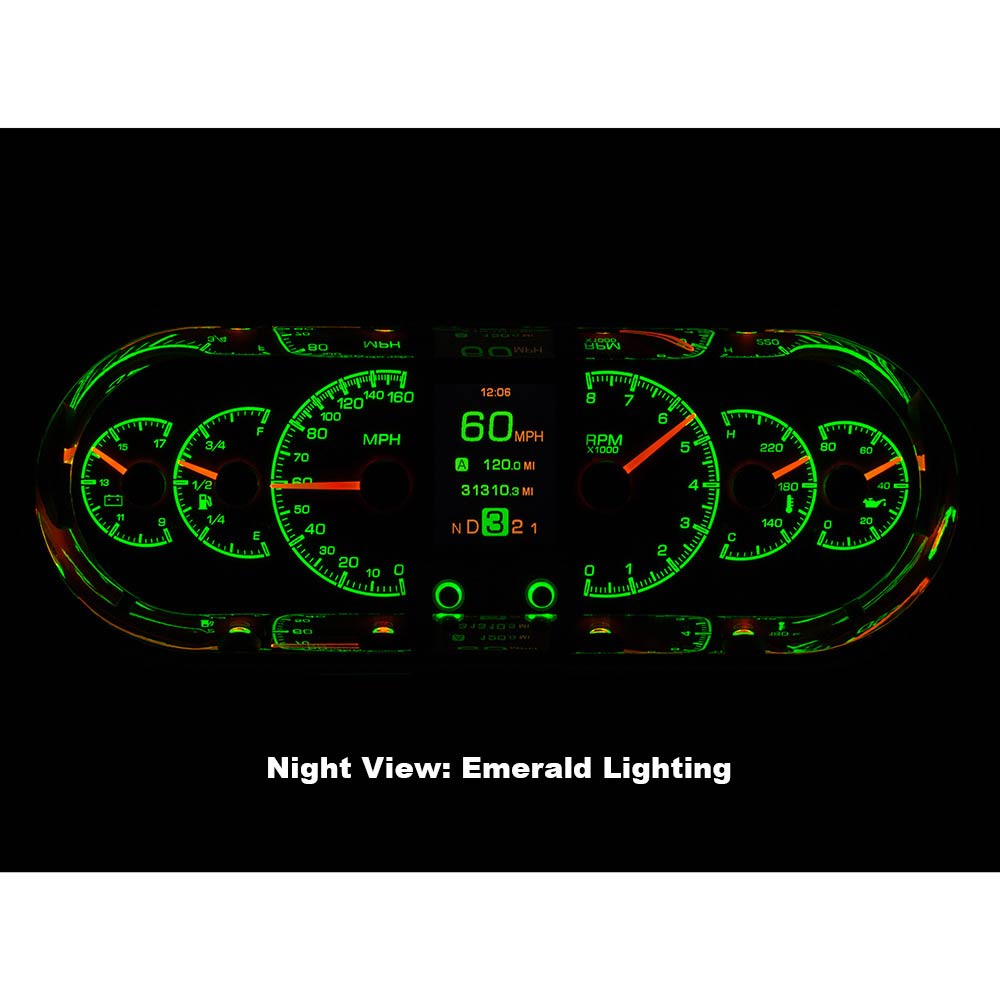

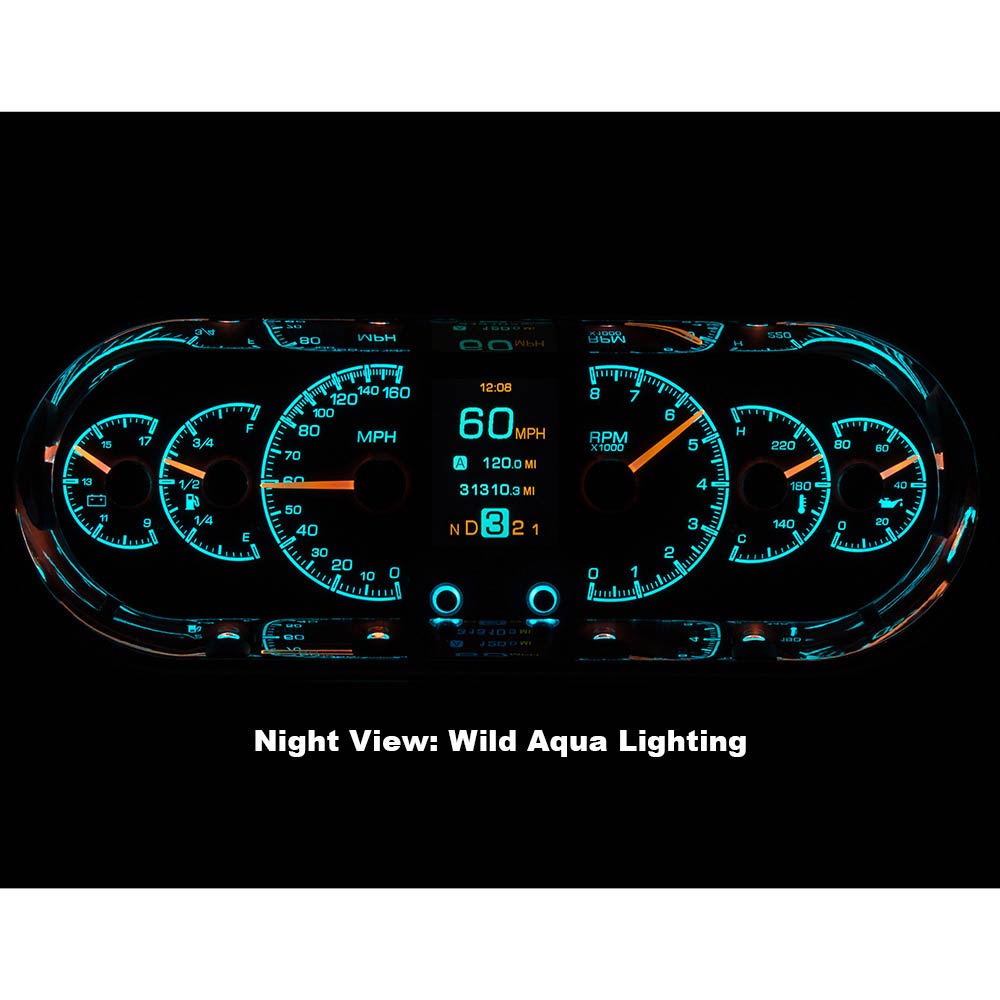

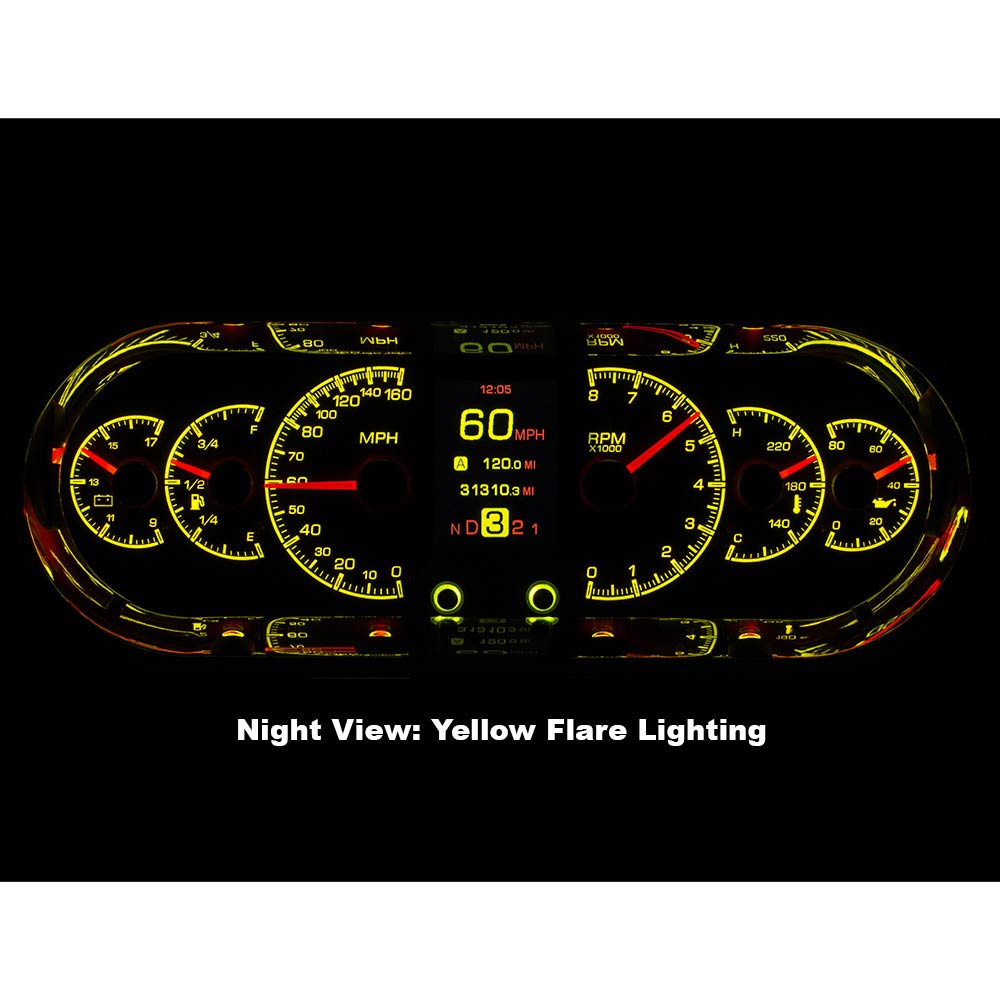

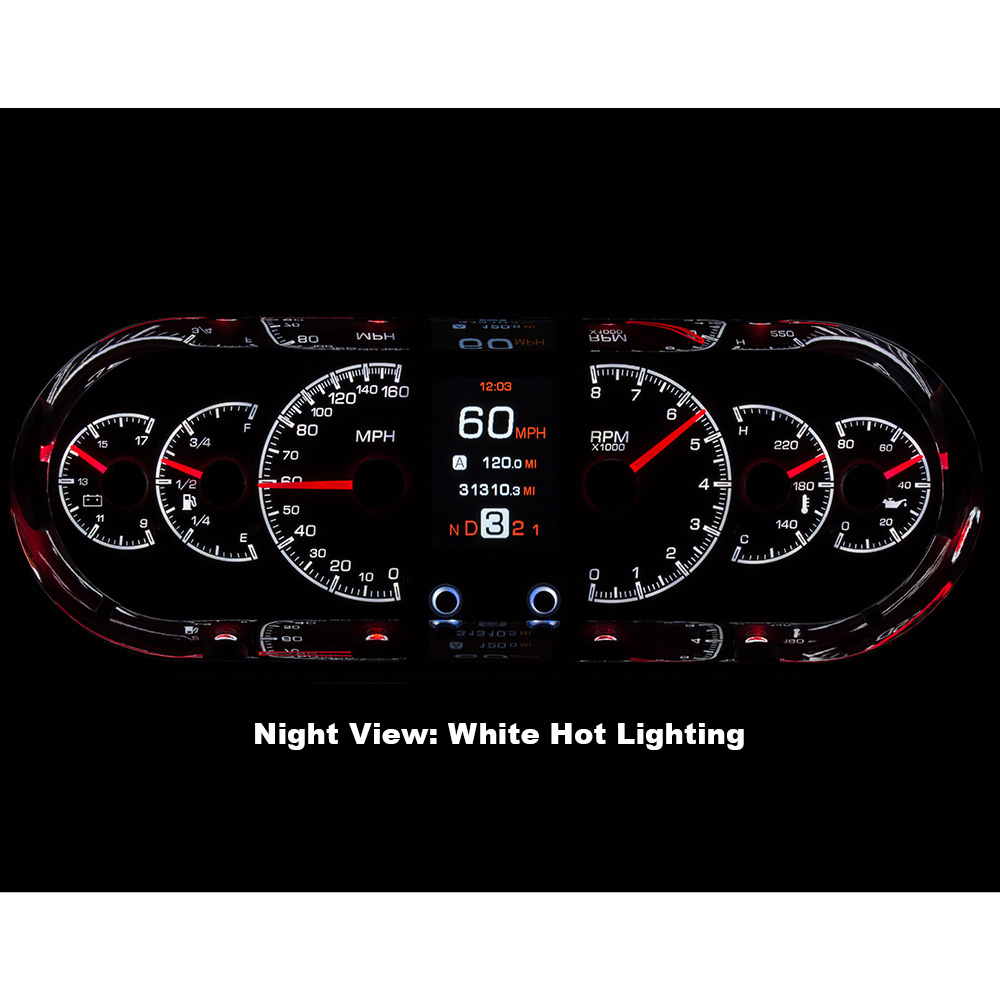

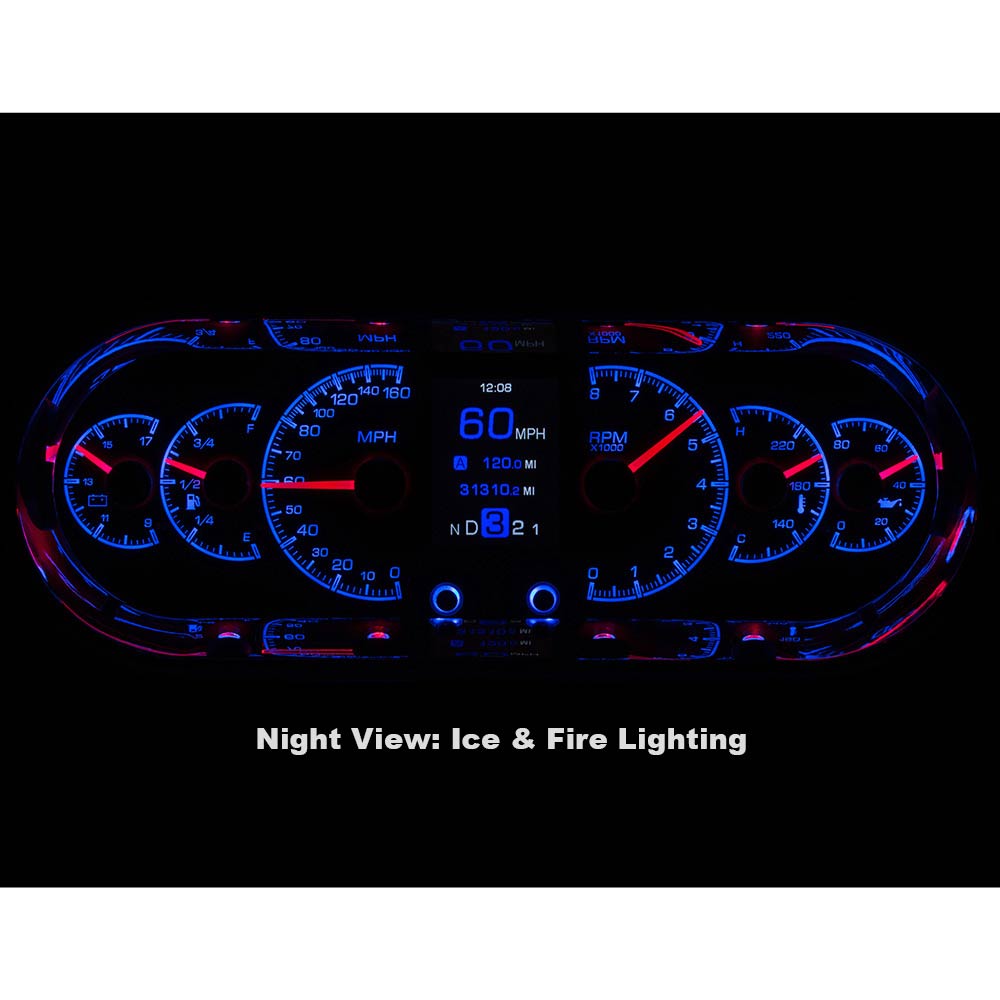

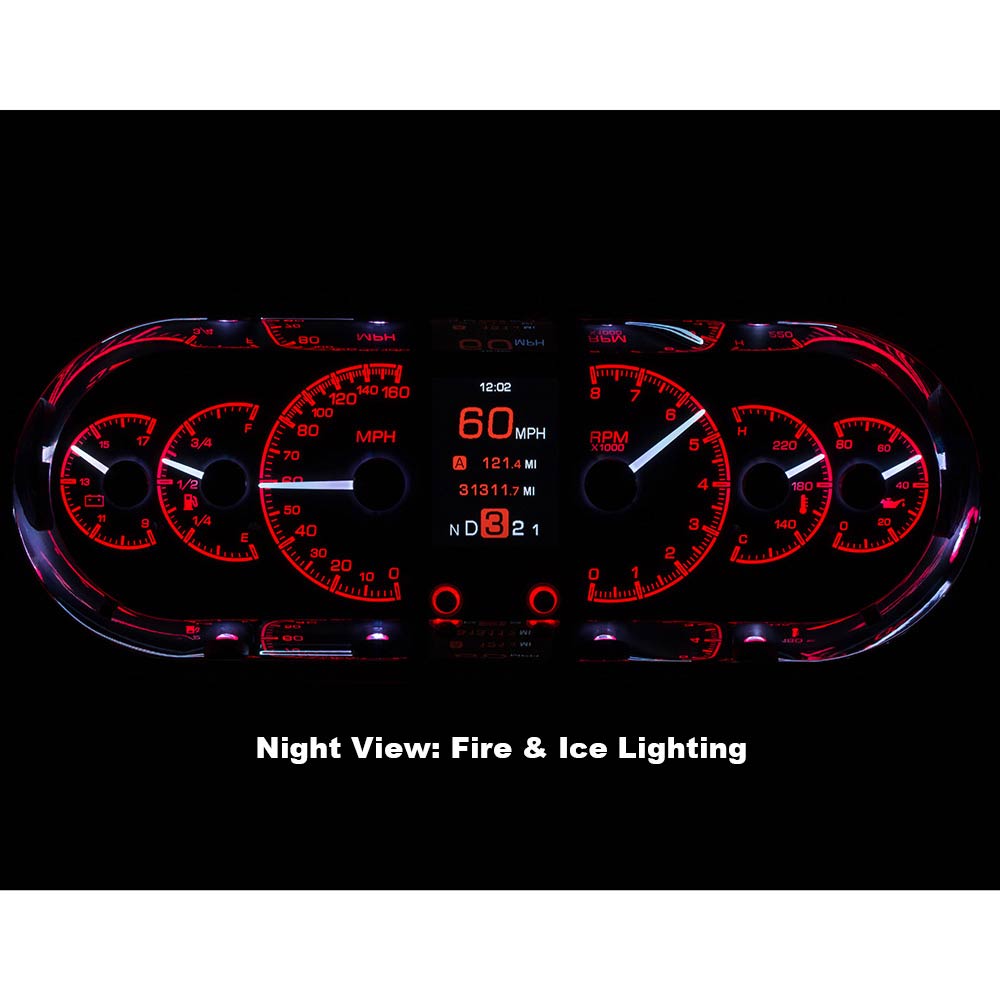

Available with your choice of black or silver alloy gauge-face, each HDX system allows you to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.
Vehicle integration through a central control box has become a standard for Dakota Digital, and the advantages are substantial. This greatly simplifies installation; two power (constant and switched) and one ground connection get things up and running, while vehicle-harness sourced signals and sensor inputs run cleanly to their respective terminal. Supplied, solid state sending units with weather-tight harnesses ensure years of trouble-free operation. This control box allows for easier service, a clean-looking finished product, and an abundance of technology packed into a vintage dashboard.
