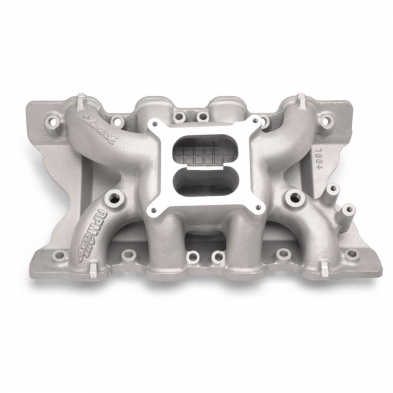

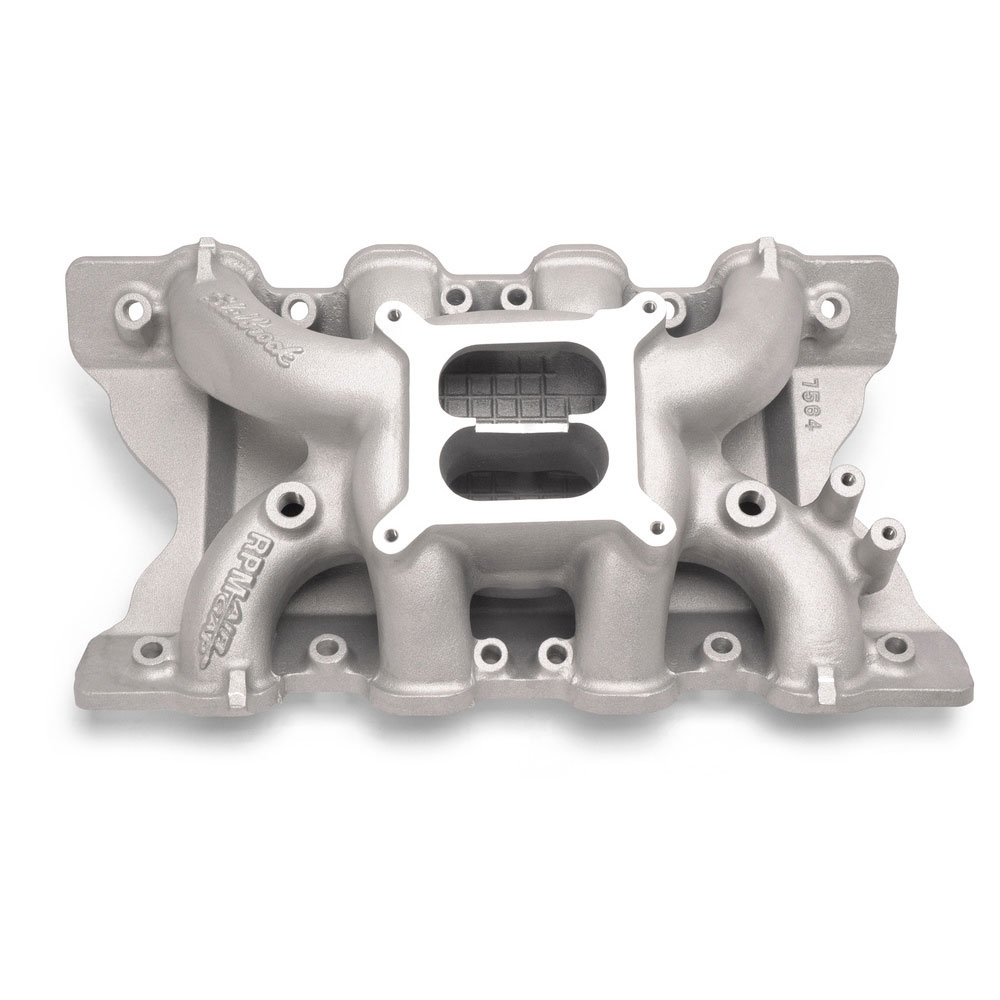

RPM Air-Gap Intake Manifold Ford 351 Cleveland - Satin
RPM Air-Gap 351C is designed to improve performance on the street or racetrack. This manifold features an open space that separates the runners from the hot engine oil resulting in a cooler, denser charge. The RPM Air-Gap manifold for 351 Cleveland engines is designed to complement Edelbrock's 351C Performer RPM cylinder heads #61609, #61629, #61625 and also works well with 4V and 2V cast iron Cleveland heads. INSTALLATION NOTES: bull; Requires Edelbrock # 8565 bolt kit bull; Recommended intake gasket: Edelbrock # 7265 bull; Manifold height: A-4.48", B-5.56; bull; Carb pad height: 5.02" bull; Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. For automatic transmissions use # 1483 and # 1493 or # 1844. bull; Port exit dimensions: 1.42" x 2.04" bull; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. bull; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
