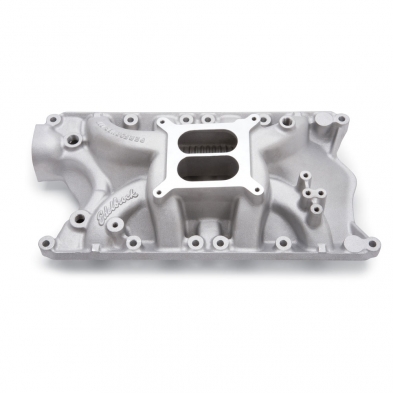

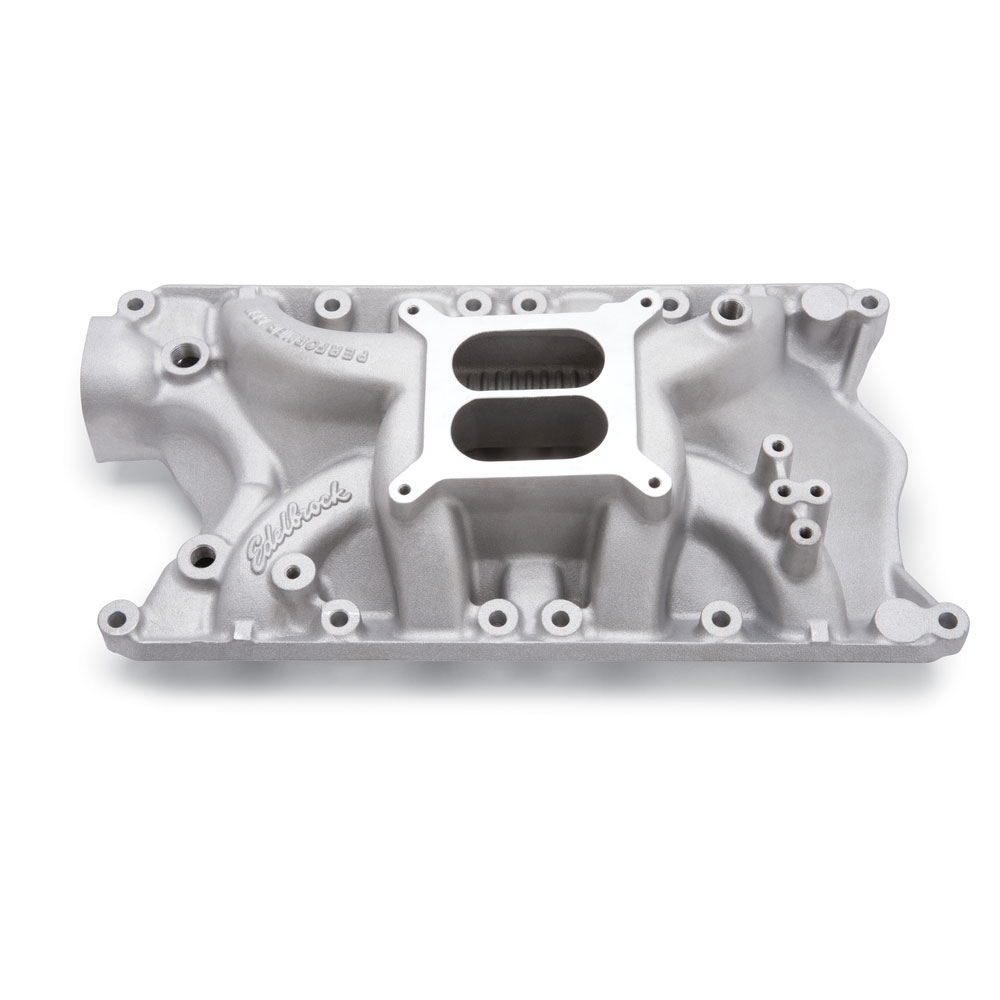

Performer RPM 351W Manifold (non-EGR) - Satin
Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000. INSTALLATION NOTES: bull; Recommended intake gasket: Use 12-bolt intake gasket set Edelbrock # 7220 recommended. For van installations use OEM Ford ldquo;van; intake gasket set; will fit early 16-bolt head with Ford 16-bolt intake gasket set. bull; Manifold height: A-4.30", B-5.30"; Carb pad height: 4.80" bull; Carb recommendations: Edelbrock Thunder AVS or Performer Series 650-800 cfm. For automatic transmissions use # 1483 and # 1491 or # 1844. bull; Port exit dimensions: 1.12" x 1.86". bull; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. bull; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
