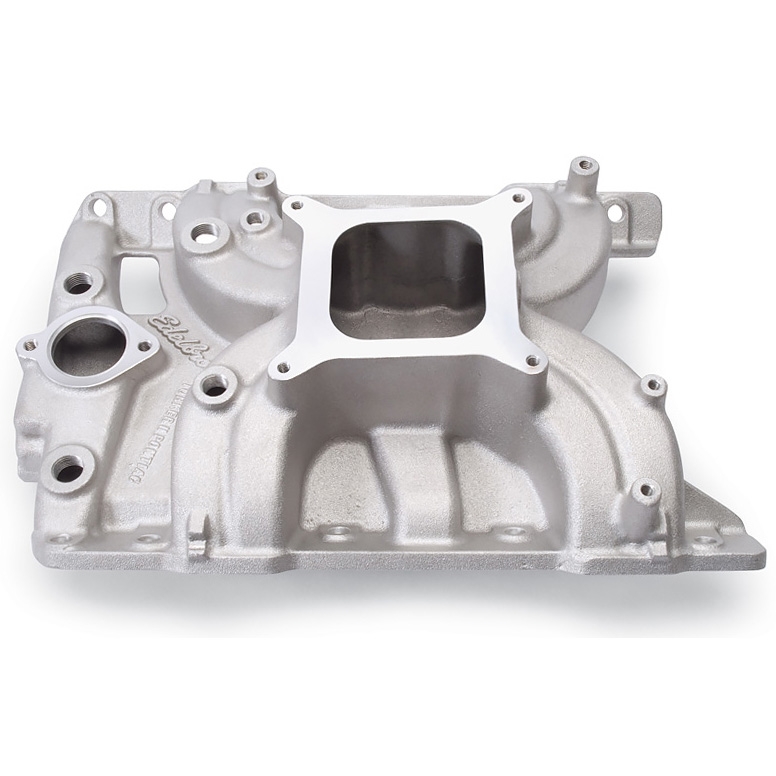

Torker II Intake Pontiac Manifold, 1965-79, 389-455 V8's (Non-EGR)
Torker II Pontiac intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood. INSTALLATION NOTES: bull; Recommended intake gasket: Edelbrock # 7280 bull; No provisions for OEM choke bull; OEM carb requires conversion to electric/manual choke bull; For 1968-71 use Edelbrock # 8015 throttle bracket bull; Manifold height: 1-1/4" taller than stock, A-6.88", B-8.00" measured to engine block bull; Carb pad height: 7.45" bull; Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. bull; Throttle Body recommendations: Edelbrock # 3878 4V 4150 style or # 3849 EFI elbow and # 3869 90mm throttle body. bull; Port exit dimensions: 1.10" x 2.06" bull; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. bull; Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
