Direct plug-in cruise controls for GM LS drive-by-wire engines, the CRC Series plugs directly into your OEM LS throttle pedal for not only simple installation, but reliable operation and connectivity. Self-learning calibration makes this system a snap to use, with no DIP switches or charts to follow!

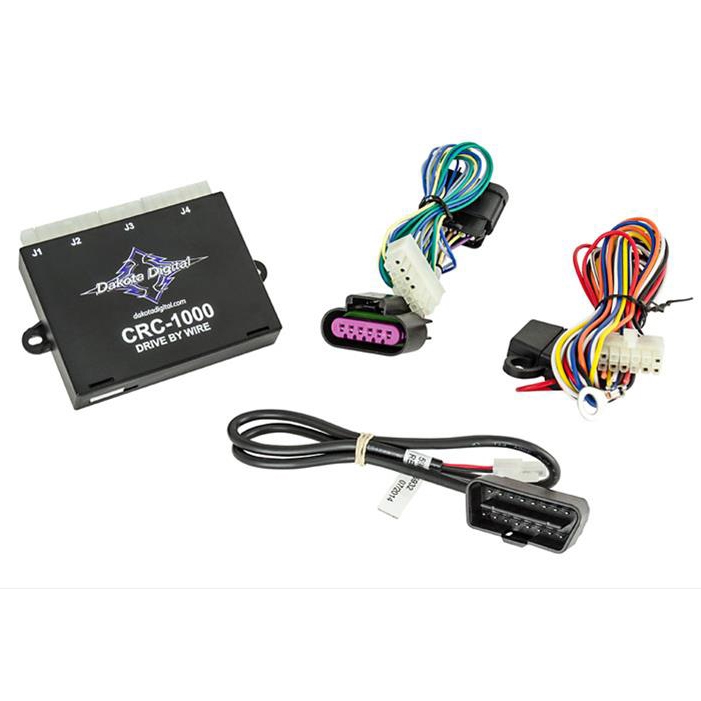

The CRC-1000 obtains its information from the included diagnostic connector and throttle pedal connections, allowing an extremely simple installation for drive-by-wire GM CAN bus applications.
The CRC-2000 variation features a discreet VSS input (4,000 PPM), usable when a diagnostic connector is unavailable. While still plugging directly into the throttle pedal, the CRC-2000 provides a more universal approach, perfectly suited to cases with a mixture of OEM and aftermarket power train control components.
Both the CRC-1000 and CRC-2000 fit GM LS (V8) applications from 2006 - current (except Pontiac GTO applications).
Your choice of switch/turn signal level is supplied. Inputs for power, ground, and a connection to your existing brake light switch are all that is required (along with VSS input on CRC-2000). Additionally, an output is provided for a cruise-on indicator.
