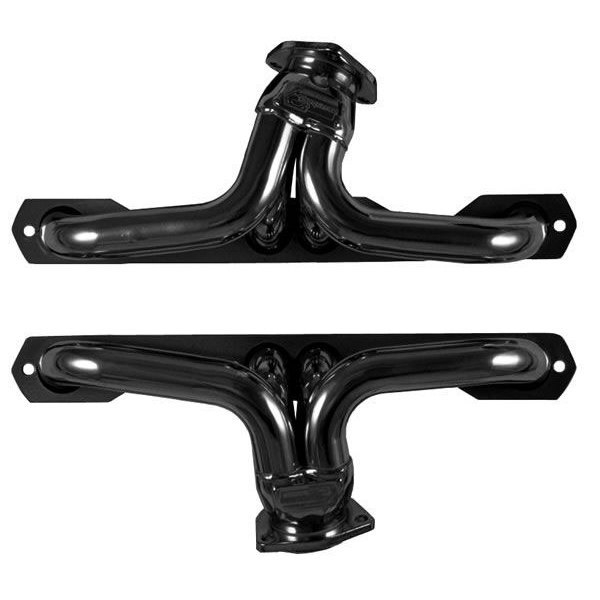

The CC3 is a compact header with a swept back collector to fit 1970-92 Chevrolet Camaro and 1955 and Up Chevy Trucks using the Small Block Chevrolet engines. The height from the port centerline to the end of the collector flange is only 4-1/4".
The CC3 also fits a variety of Full Size Chevrolet, Ford and Mercury engine conversion applications. Featuring a 15 degree collector angle on the drivers side and a 5 degree angle on the passenger side, the CC3 header offers ample room around cross member and starters. A good choice for street rod applications with the Camaro front subframe. On certain truck applications you may need to modify air conditioning brackets, alternator brackets or motor mounts, depending on the year of the truck as well as engine and transmission combination used.
Comes with all hardware necessary for installation.
Features and Specifications:
- Engine: Chevy 265-400 V8
- Finish:Black Ceramic Coated
- Primary Tube Diameter: 1-1/2"
- Collector Diameter: 2-1/2"
- Tube Thickness: 16 Gauge
- Flange Thickness: 3/8"
- Header Gasket: Not needed
- Header Bolt Set: Included
- Collector Reducer: Included
- Made in the USA
Vehicle Applications:
- 1935-41 Cars and Trucks
- 1958-64 Chevy Full Size Cars
- 1965-70 Chevy Full Size Cars
- 1970-82 Chevy Camaro
- 1970-82 Pontiac Firebird
- 1955-59 Chevy & GMC Trucks
- 1960-72 Chevy and GMC Trucks
- 1949-64 Ford Cars
- 1949-64 Mercury Cars
- 1965 and Up Ford Full Size Cars
- 1948-52 Ford Trucks
