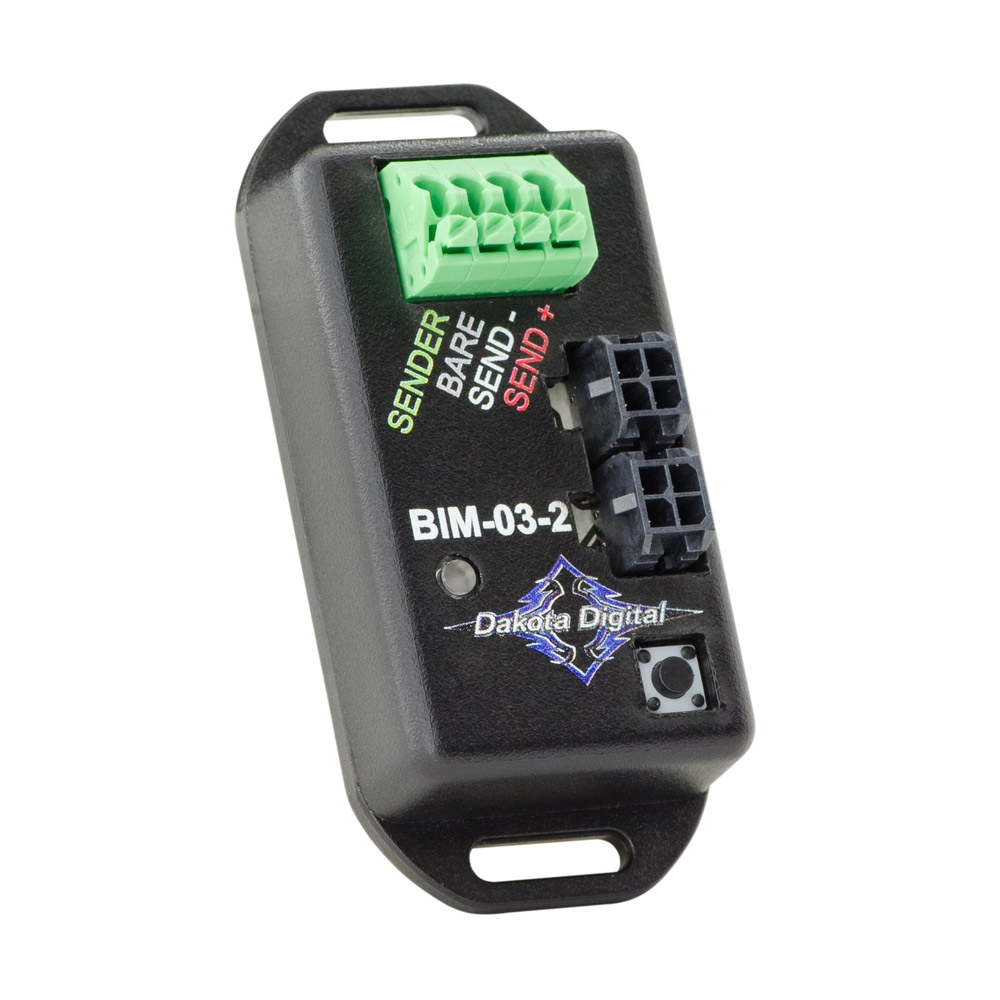

The BIM-03-1 is a multi-pressure module that allows you to add up to 3 additional pressure readings to your VFD3 (rev G), VHX, HDX, and RTX gauges. The BIM-03-2 utilizes Solid State Pressure senders to give you phenomenal accuracy (*see resolutions in the chart below).
Pressure Inputs:
- Pressure (generic fluid or air)
- Fuel Pressure
- Air Pressure
- Boost/Vacuum
- NOS Pressure
Input senders and specifications:
| Gauge Display |
Sender Part # |
Range |
Resolution |
Low Warning |
High Warning |
| PSI |
SEN-03-9 |
0- 300psi |
1 |
0- 252 |
48- 300 |
| FUEL P |
SEN-03-8 |
0- 100psi |
0.2 |
0- 63 |
9- 99 |
| AIR P |
SEN-03-9 |
0- 300psi |
1 |
0- 252 |
48- 300 |
| BOOST |
SEN-09-6 |
30inHg- 80psi |
1inHg/ 0.2psi |
none |
7- 69 |
| NOS P |
SEN-23-2 |
0- 2000psi |
10 |
600- 900 |
900- 1200 |
*The BIM-03-1 is designed to supply information to the VFD3 rev. G and VHX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
