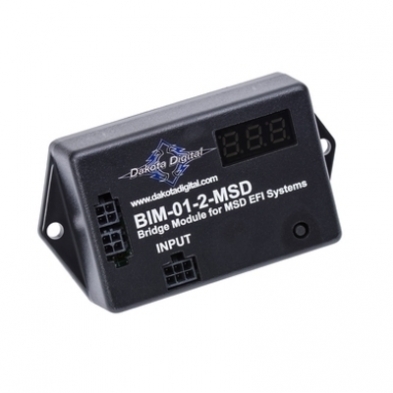

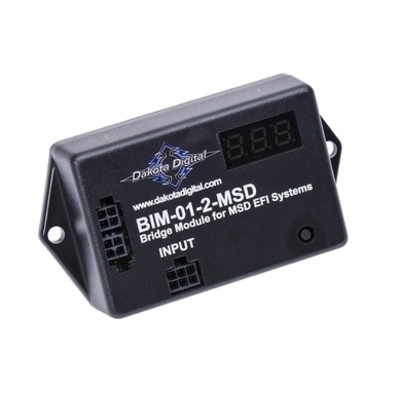

This Dakota Digital BIM-01-2-MSD is designed to read the engine information from the MSD Atomic TBI EFI kits. The BIM-01-2-MSD module is a direct plug in using the supplied y-adaptor harness for simple connection to the MSD Atomic handheld display or throttle body.
**not compatible with the Atomic LS EFI.
The BIM-01-2-MSD will collect and output the following information to Dakota Digital Instrument Systems *:
Always available:
- Tachometer
- Engine Coolant Temp
- Intake/ Manifold Temp.
- Fuel Pressure
- Air/ Fuel Ratio
Please note: Due to the various factory and modified ECM's, additional data add-on's from MSD may be available such as Oil Pressure. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure Pressure, Oil Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors.
*The BIM-01-2-MSD is designed to decode the information provided by the MSD Atomic TBI EFI kits and supply this information to the VFD3 rev. G, VHX, HDX & RTX series control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules
