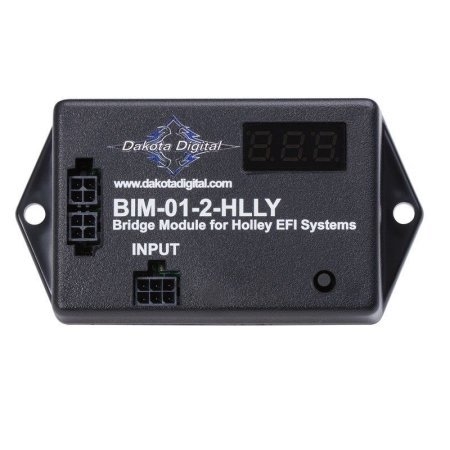

This Dakota Digital BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator, HP or Dominator EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the Holley EFI system.
The BIM-01-2-HLLY will collect and output the following information to Dakota Digital Instrument Systems *:
Always available:
- Tachometer
- Engine Coolant Temp
- Intake/ Manifold Temp.
- Fuel Pressure
- Air/ Fuel Ratio
Please note: Due to the various factory and modified ECM's, additional data add-on's from Holley may be available such as Vehicle Speed and Oil Pressure. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors.
*The BIM-01-2-HLLY is designed to decode the information provided by the Holley Terminator, HP and Dominator EFI's and supply this information to the VFD3 rev. G, VHX, HDX & RTX series control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
