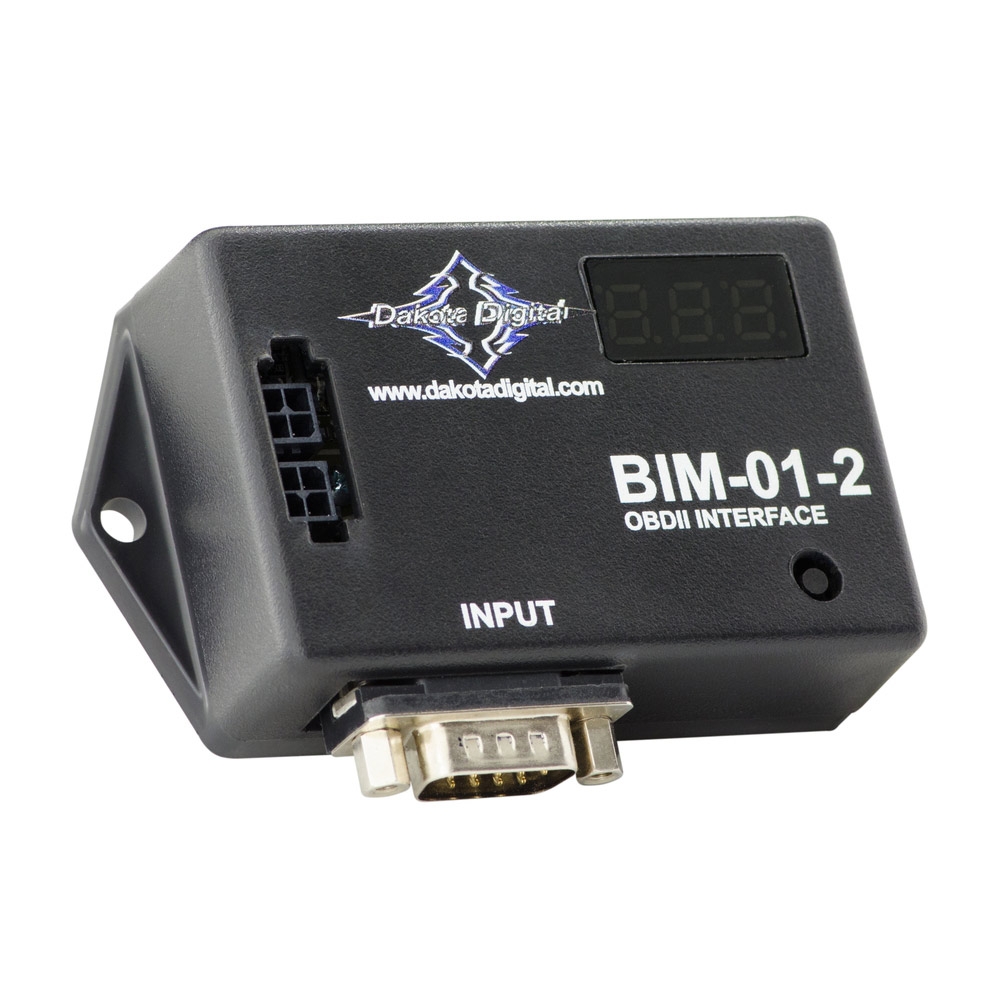

The Dakota Digital BIM-01-2 OBD-II (J1850/CAN) Interface allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicle's computer (ECM). The BIM-01-2 will collect and output the following information to Dakota Digital Instrument Systems *:
Always available:
- Speed
- Tachometer
- Engine Temp
- Check Engine Indicator
Vehicle specific:
- Intake Air Temp
- Transmission Temp
- Ambient Air Temp
- Gear Position
- Oil Pressure
Please note: Due to the various factory and modified ECM's, additional data including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, or Gear Position displays since this is a function of the ECM and matching OEM functional sensors.
This product can provide a /-25 percent calibration to compensate for tire size or gear changes which have affected the speedometer output.
*The BIM-01-2 is designed to decode the information provided by the ECM through OBD-II and supply this information to the VFD3 rev. G, VHX, HDX & RTX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules.
**The BIM-01-2 is designed for J1850 and CAN OBD protocols only. If you are concerned about compatibility with your vehicle please contact our sales or tech department.
***The BIM-01-2 is a direct replacement and upgrade to the BIM-01-1
