American Autowire 500834 Remote Master Disconnect Switch Kit (110 Amp Continuous / 750 Amp Surge)
The 500834 Remote Master Disconnect Switch Kit from American Autowire is a high-performance solution for managing battery power in custom builds, race cars, and restoration projects. Designed for remote operation, this kit allows you to control battery connectivity with a compact push-button switch, enhancing both convenience and safety.
Key Features:
- Remote Operation: Includes a small, dash- or panel-mountable push-button switch that activates the disconnect remotely.
- SPST Latching Solenoid:
- Rated for 110 amps continuous
- Handles up to 750 amps surge
- Ensures reliable performance under high-load conditions
- Heavy-Duty Construction:
- Features 2-5/16" battery studs for secure connections
- Weather-sealed components for durability in harsh environments
- Memory Retention Compatible: Works with American Autowire’s Lifeline memory retainer to preserve radio and EFI presets during disconnect.

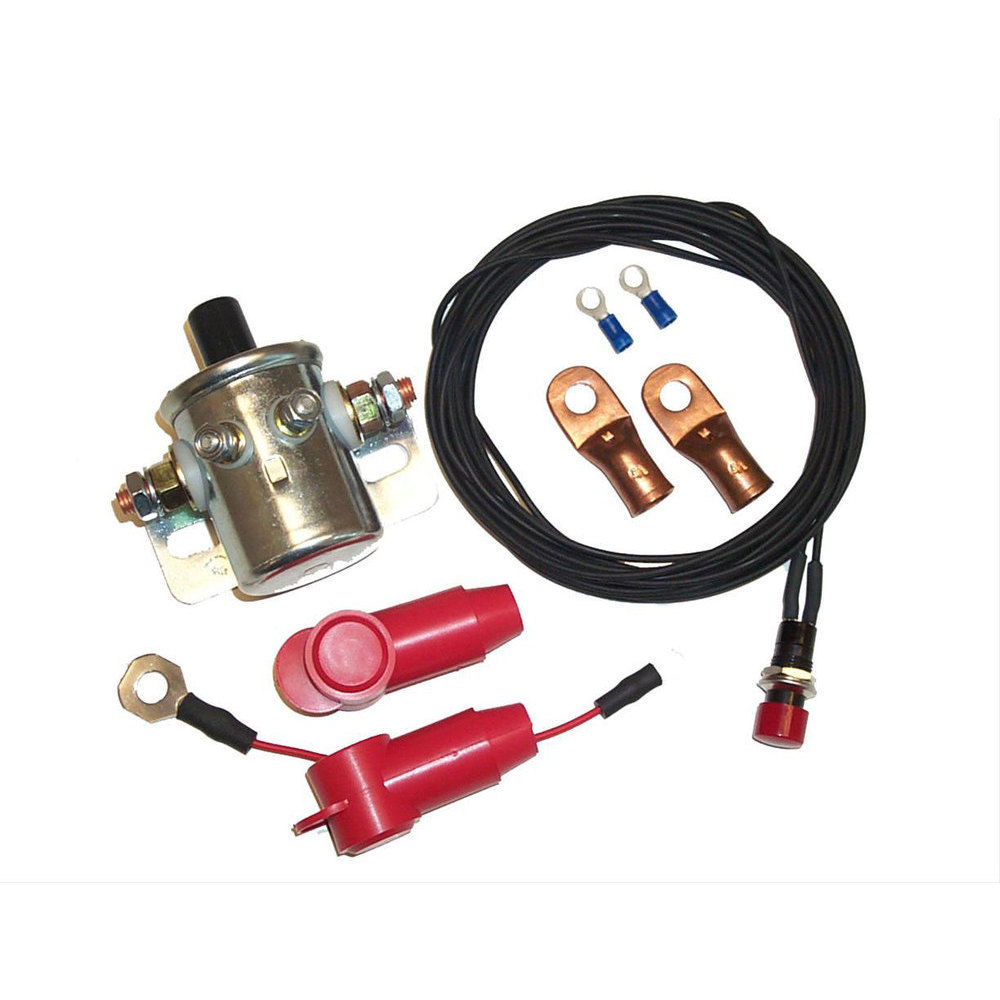

Kit Contents:
- SPST latching solenoid
- Remote push-button switch
- (2) rubber boots
- Connection hardware
Specifications:
- Voltage: 12V
- Dimensions: 5.7" x 4.4" x 3.3"
- Weight: Approx. 1.34 lbs.
- Part Number: 500834
- Fitment: Semi-universal; suitable for a wide range of vehicles
Applications:
- Ideal for:
- Street rods
- Race cars
- Off-road vehicles
- Restorations requiring battery isolation
- Enhances vehicle security and simplifies battery maintenance
