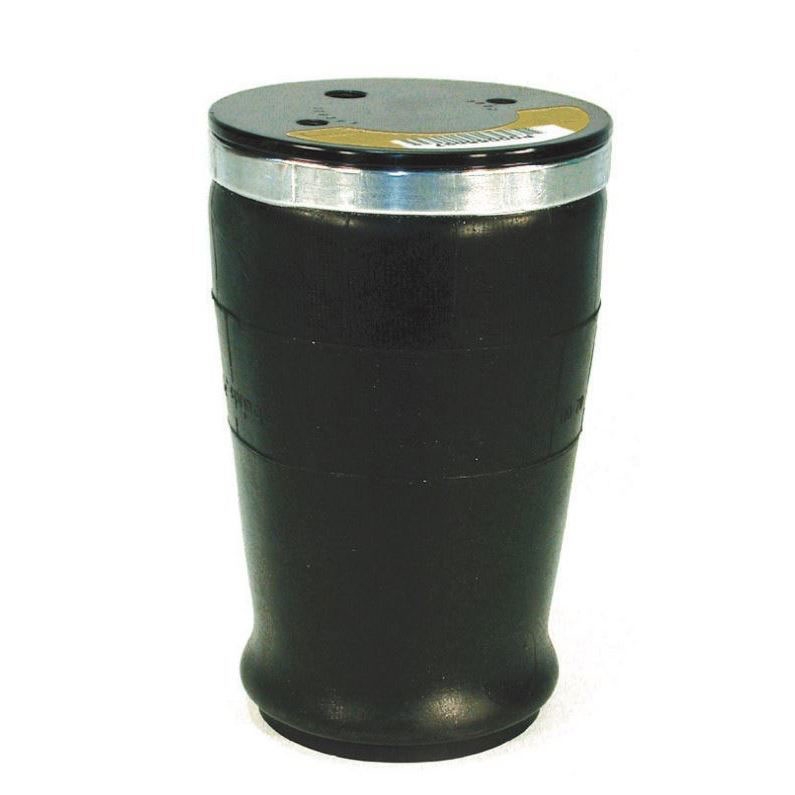

This airspring is commonly used in RideTech's GM rear coolride kits.The airspring has a load capacity of 1500 lbs at 100 PSI. An external bump stop and an extension stop limiting strap or the shock absorber must be used to prevent the air spring from exceeding the compressed or extended dimensions. If these dimensions are exceeded, severe damage to the airspring and possibly the vehicle, will result.
Specs:
- Minimum Height is 4.5"
- Ride Height is 9 to 9-1/2"
- Maximum Height is 12"
- Inflated Diameter is 5"
- Air Fitting Port is 1/4" NPT
