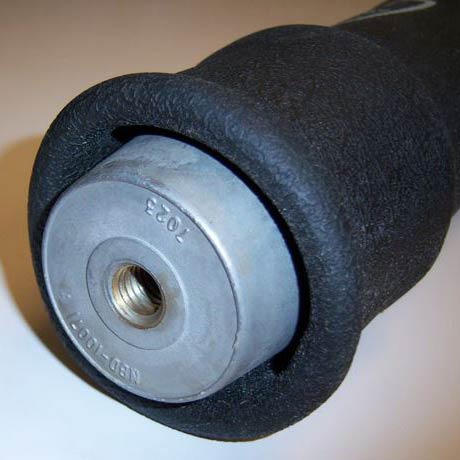

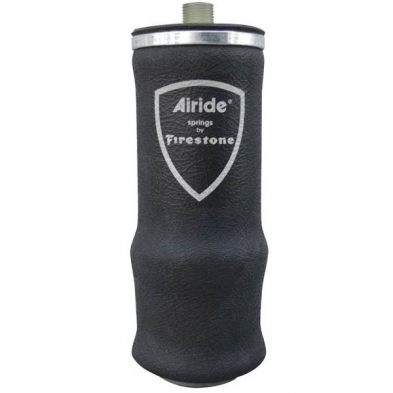

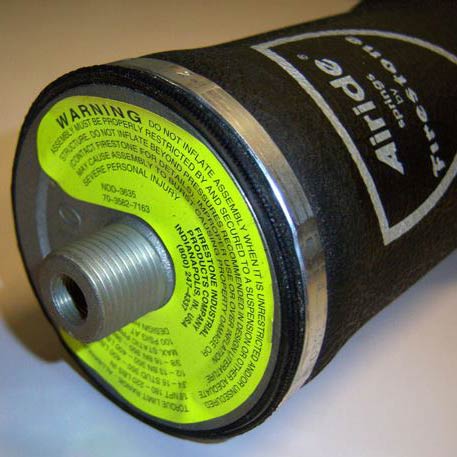

This rolling sleeve air spring is most common in our AirOverLeaf applications. It has a load capacity of 1000lbs @ 100psi
Specs:
- Minimum height is 4"
- Ride Height is 7 to 8"
- Max Height is 13"
- Bag Diameter is 5"
- Air Fitting Port is 1/8" NPT
- Lower Bolt Hole is 7/16"-14
Note for all sleeve style air springs:
An external bump stop and an extension stop that limits strap or the shock absorber must be used to prevent the air spring from exceeding the compressed or extended dimensions. If these dimensions are exceeded, severe damage to the air spring and possibly the vehicle, will result.
