Description

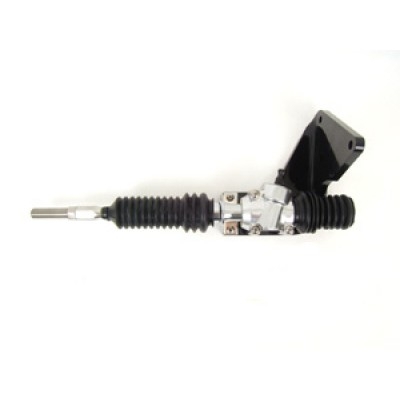

1933-34 Ford Cross Steer® New Build (No Shaft Kit)
The Cross Steer is essentially a small half rack and pinion that bolts into place exactly where the Vega style steering box would bolt on. The system still uses a draglink between both wheels. The Cross Steer was specifically designed for solid axle cars and trucks of this era with a mono leaf spring suspension. Since the Cross Steer pivots only off the one side, it matches up perfectly with the stock suspension of the solid axle Fords. Sorry, it will not work on Chevys which had dual leaf springs.
The gear comes mounted to an angled bracket that has the same three hole pattern for mounting the Vega box. This small rack & pinion is made of all automotive grade components and can handle a vehicle up to 3500 lbs! If you are building a new vehicle, this Cross Steer is the best option and you can run your steering linkage down to the gear.
Kit Includes:
Rack & Pinion
Black Mounting Bracket
Mounting Hardware
Features:
Pinion Type / Size: 9/16"-26 Spline
Amount of Travel: 6"
Turns Lock to Lock: 3.75 Turns
Inner End Threads: Tube & Adapter 11/16"-18
