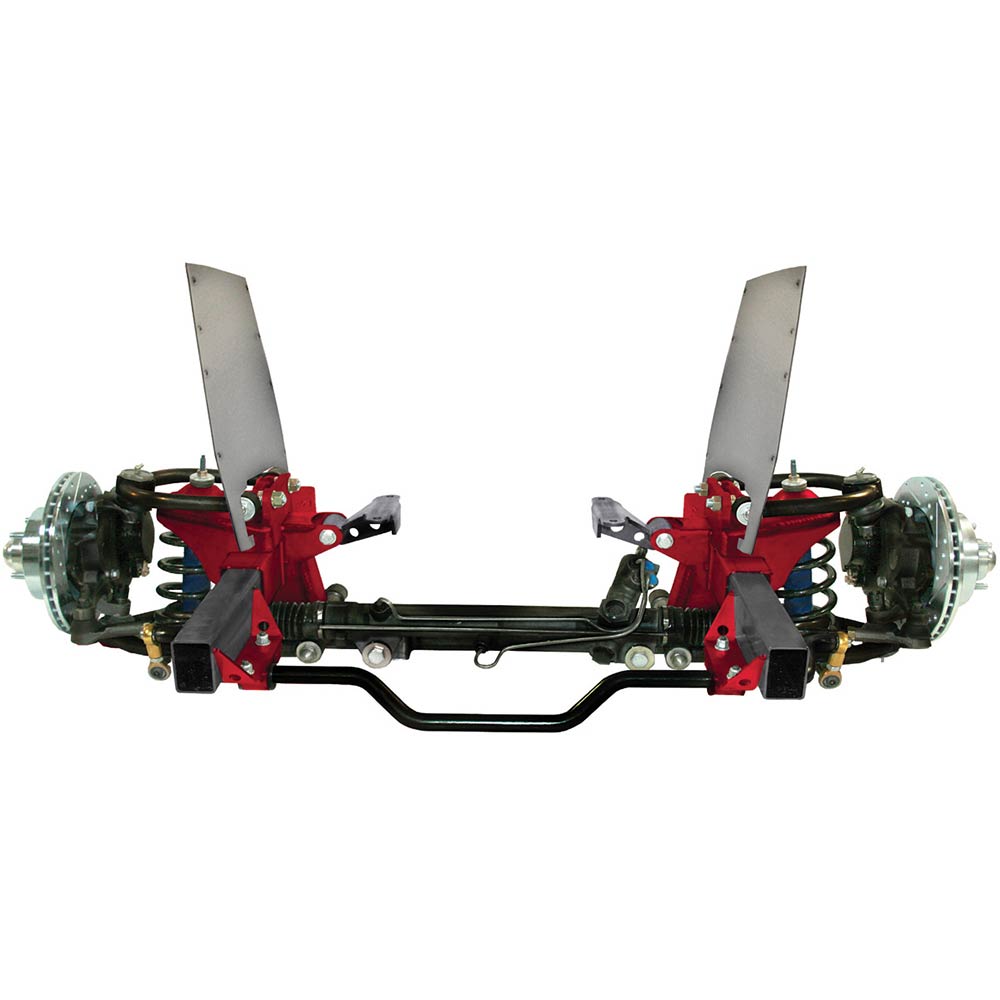

TCI Engineering’s 1962-1965 Ford Ranchero Coil Spring IFS is engineered for performance, strength, control, drivability, handling capabilities and opens up engine compartment. Re-engineered original spring towers utilize vertical metal plate for mounting upper control arms. Design allows easy camber & caster adjustments via shims instead of alignment slots. Design eliminates T-bolt design prone to slipping. All heli-arc welded. Available with dropped or stock height spindles.
Boxing plates, crossmember and upper towers use existing holes on frame rails. Replacement inner fender panels reuse many factory shock tower holes.
TCI products have Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Items built in house such as link bars, control arms, spindles, crossmembers, etc come with Lifetime Warranty.
Included:
- Crossmember
- Coil-spring upper towers
- 1” Performance anti-roll bar
- Boxing plates
- Inner fender panels
- Small block Engine mounts
- 1” Upper tubular A-arms
- 1 1/8” Lower tubular A-arms
- Greasable urethane bushings
- Spindles (stock height or 2” drop)
- Manual rack and pinion
- 11” Drilled & slotted zinc plated rotors
- Big bore calipers (20% more clamping force)
- Black powder coated springs
- Painted shocks
Features & Benefits:
- Primary crossmember utilizes 3/16" thick steel mig and tig welded.
- Eliminates the factory shock towers for more clearance.
- Utilizes reinforcorcement plates.
- Crossmember engineered to lower the center of gravity.
- Spindles are CNC machined using 4140 chro-moly spindle shafts
- Quick ratio rack and pinion
- Engine mounts laser cut using 3/16" thick steel with mig and tig welds.
- Bolt-On SBF and FE engine mounts
