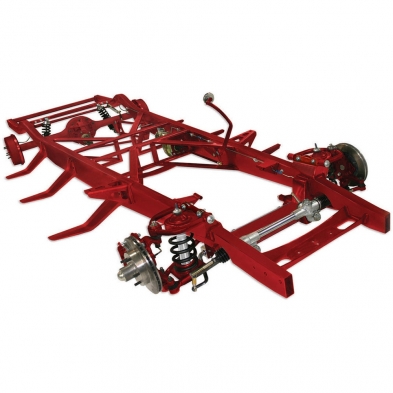

1947-53 GM Pickup Chassis Must II Leaf Springs - Plain
TCI Engineering products come with Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.
Included Products
- 9“ Hot Rod Currie housing with your choice of gear set (3.00-4.56)
- Small block engine and automatic transmission mounts
- Pedal assembly with master cylinder and booster
- Wilwood proportioning & check valves
- 31 Spline axles and 11” drum brakes
- Complete frame with center section
- Complete front suspension
- Complete rear suspension
- Custom steel brake lines
- Running board brackets
- Core support mount
Features & Benefits
- 8” Tall fully boxed frame rails
- Custom built center section offers strength while still allowing exhaust clearance
- This chassis design is engineered for a cleaner look and excellent ride quality
- Lowered stance and center of gravity
- Redesigned upper control arm mounting brackets
- 3/16” heavy duty Cross member
- Heavy duty upper and lower screw-in ball joints
- Heavy duty upper and lower control arms
- Vented rotors and big bore calipers
- Energy Suspension bushings
- Performance front anti-roll bar
- Parabolic Leaf springs offer greater flexibility which promotes ride quality
- 28% weight savings over conventional Leaf springs
- The Leaf Springs will not rob your classic truck of performance
- Fully plumbed brake lines with pedal, master & booster shorten fabrication time
- Engine and Transmission mounts are pre-installed allowing your combo to drop right in.
- All heli-arc welded for the highest quality & strength
