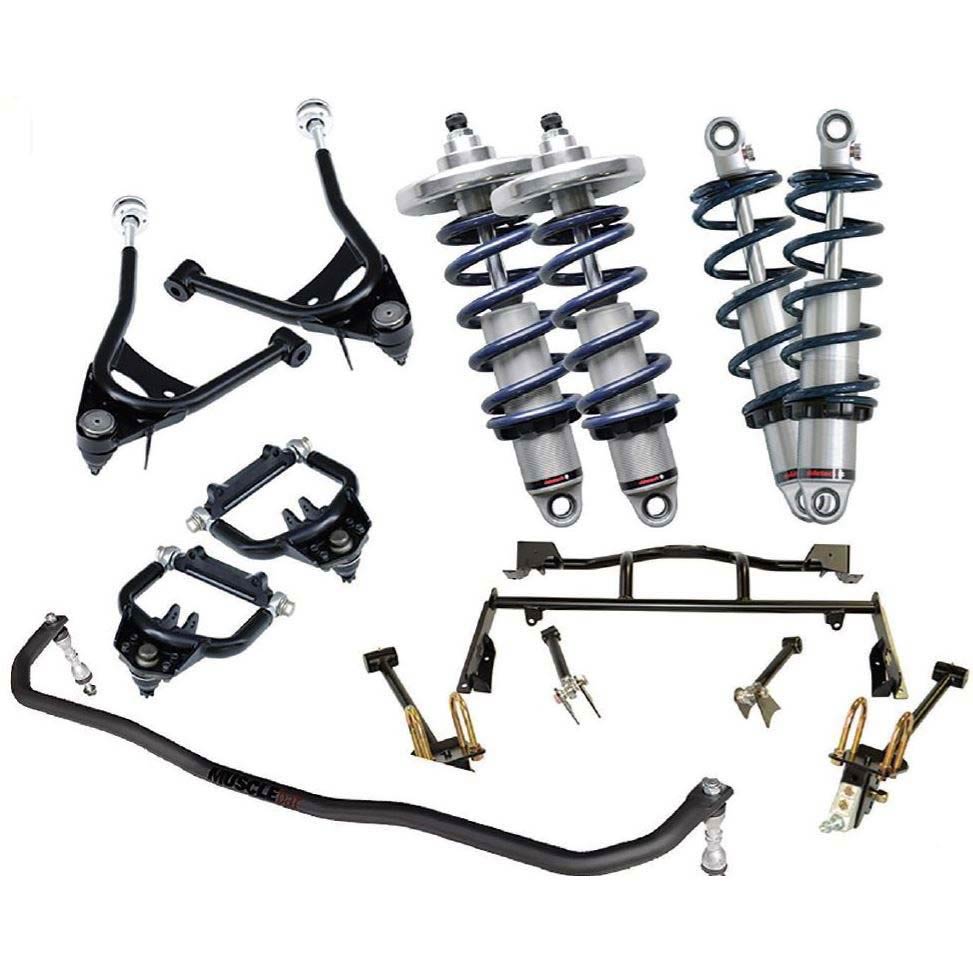

The RideTech CoilOver System for the 1967-70 Mustang includes everything you need to give your vintage Mustang modern drivability. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality.
Features:
- RideTech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2" drop which allows for the use of longer shocks creating more suspension travel.

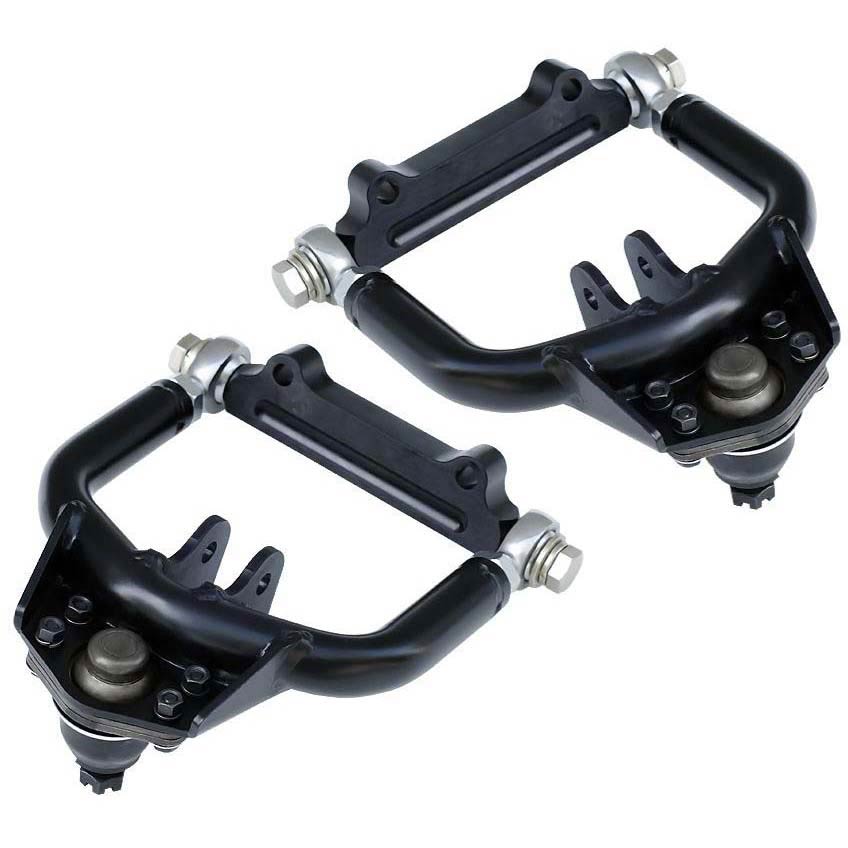

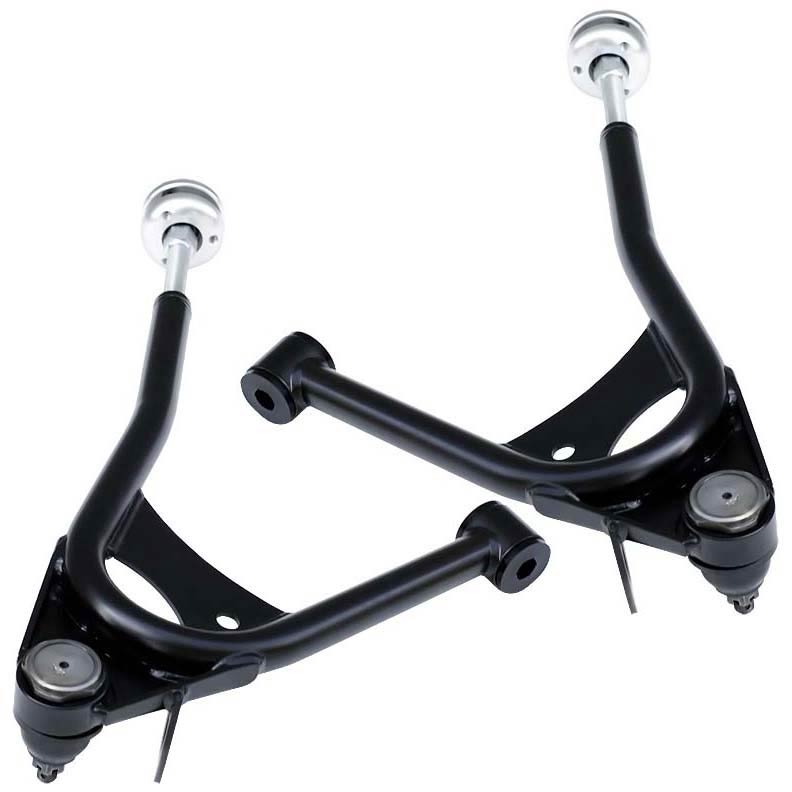

- Upper and Lower StrongArms feature corrected ball joint angles for the tall spindles. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

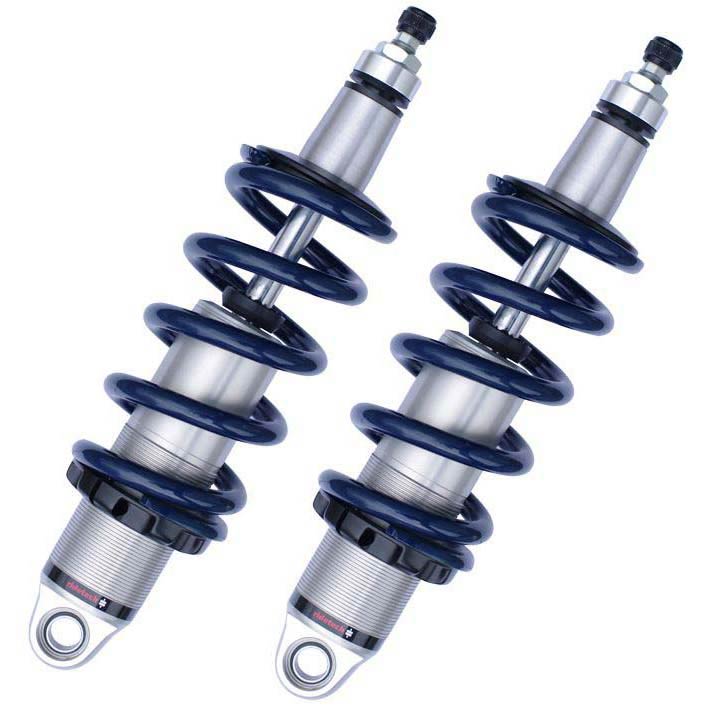

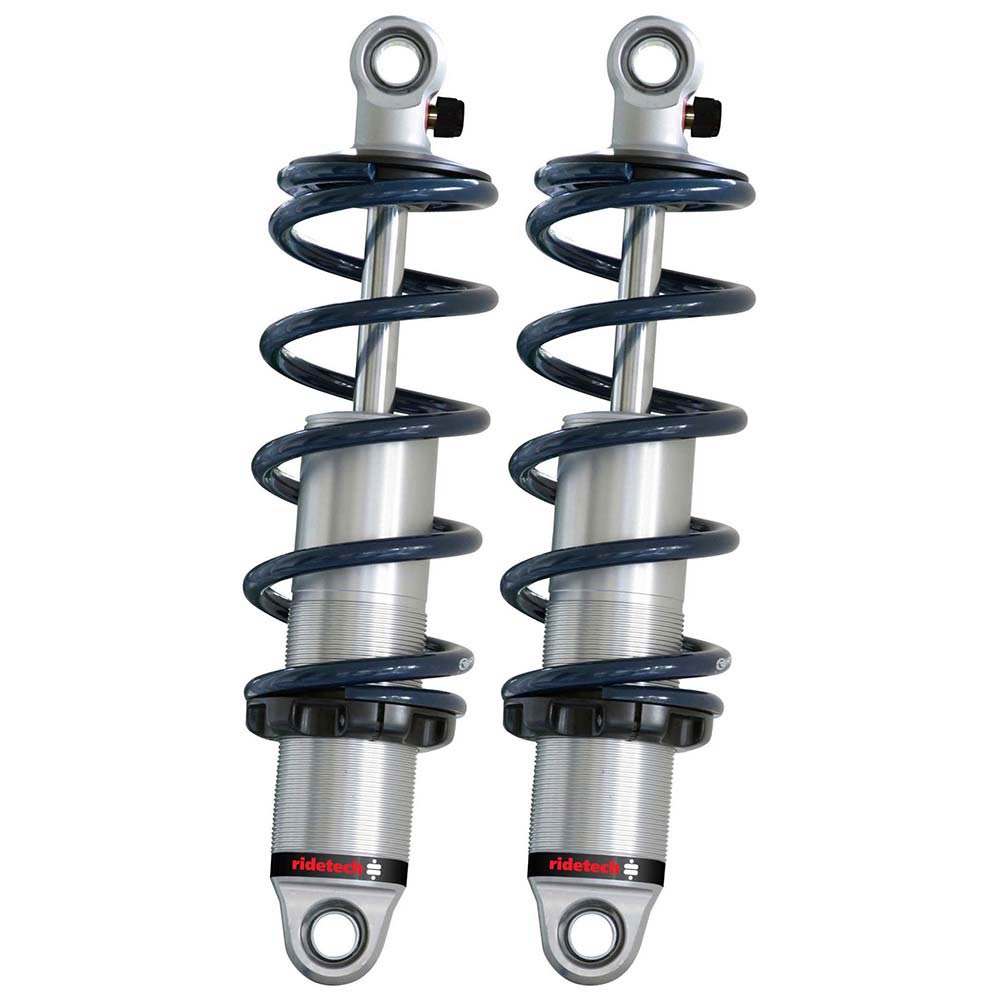

- HQ Series Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They come standard with a 1,000,0001 Mile Warranty.

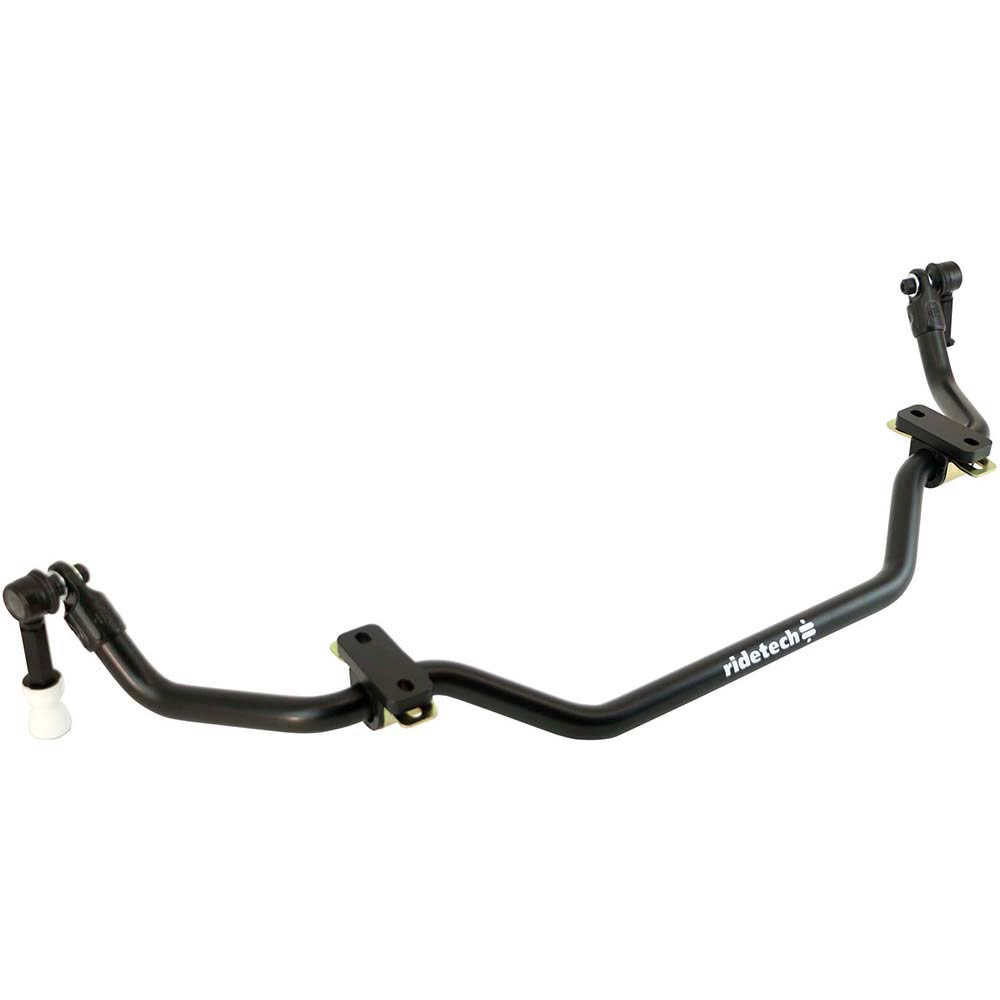

- Front MucleBar helps reduce body roll and creates room for wider front tires. Rate = 700 lbs Diameter = 1.125" Wall Thickness = .219" includes easy to install spherical end links with barrel lock nuts.

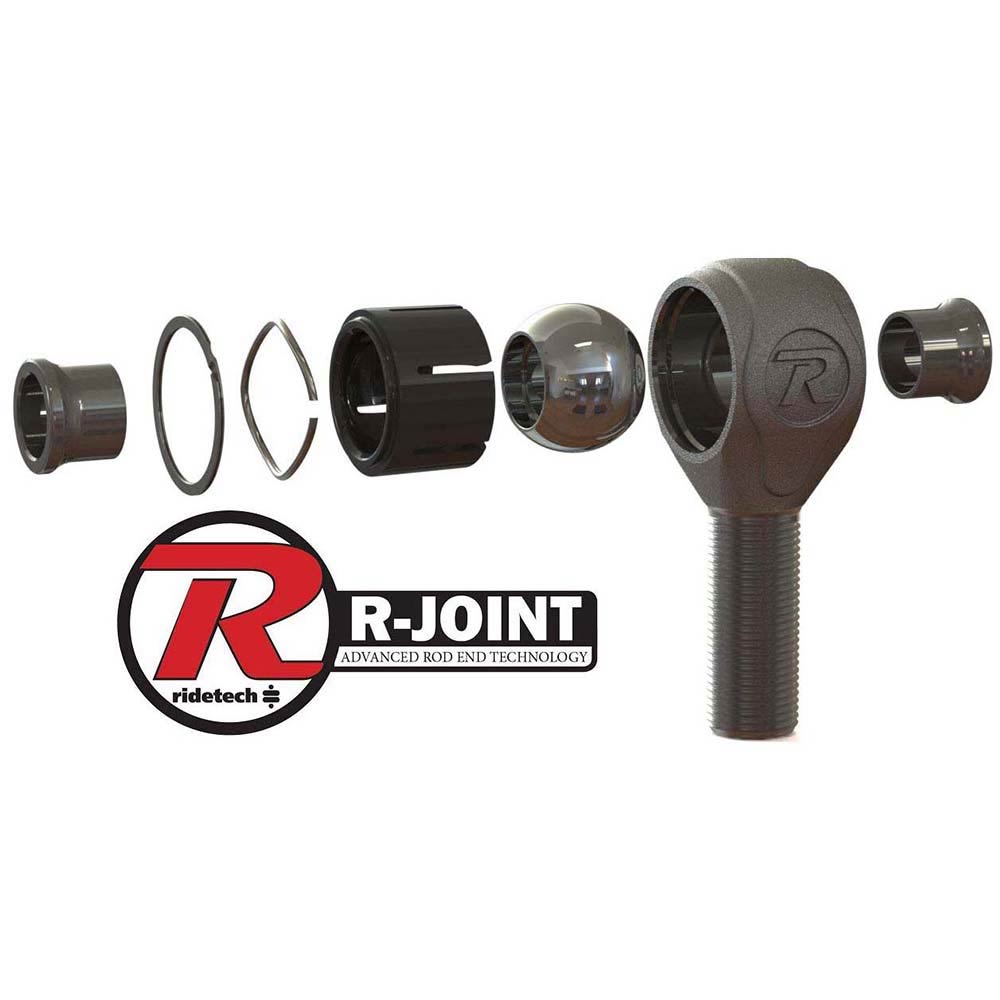

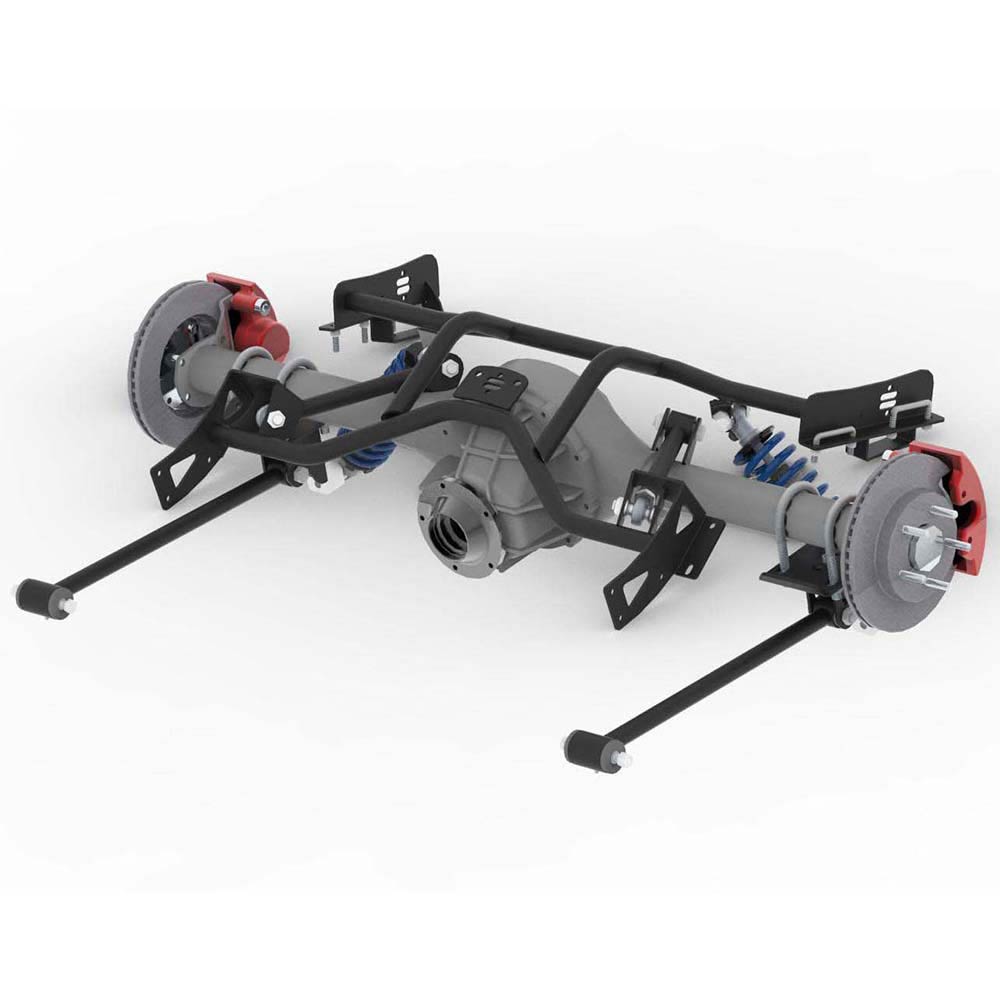

- Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with minitubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation and quiet operation into one special bearing that is as home on the street as it is on the racetrack
